Eagle Access Control Systems Eagle-2000 series - Master and Slave Operation; Master;Slave Communication Setup; Master Control Options

Master Diamond Board
Slave Diamond Board
Slide Gate Operators / Eagle-2000 Series / Eagle-1000 Series
Gate opening direction, motor brake,
reverse loop, one pass, stop reverse,
alarm reset, and close timer.
Use 20GA stranded wire
Please refer to pages 10 & 11 for
more information on individual
switch functions.
Use 20GA stranded wire for
Master/Slave communication
NOTE: The polarity is very
important when connecting
Master / Slave Operations.
Master Control Options
Distributed by AFW Access Systems • www.AnchorMiami.com/afwas
+
-
-
+
+
(13)
Important: Be sure that the 120VAC power (for the Master and the Slave)
are connected to the same circuit breaker.

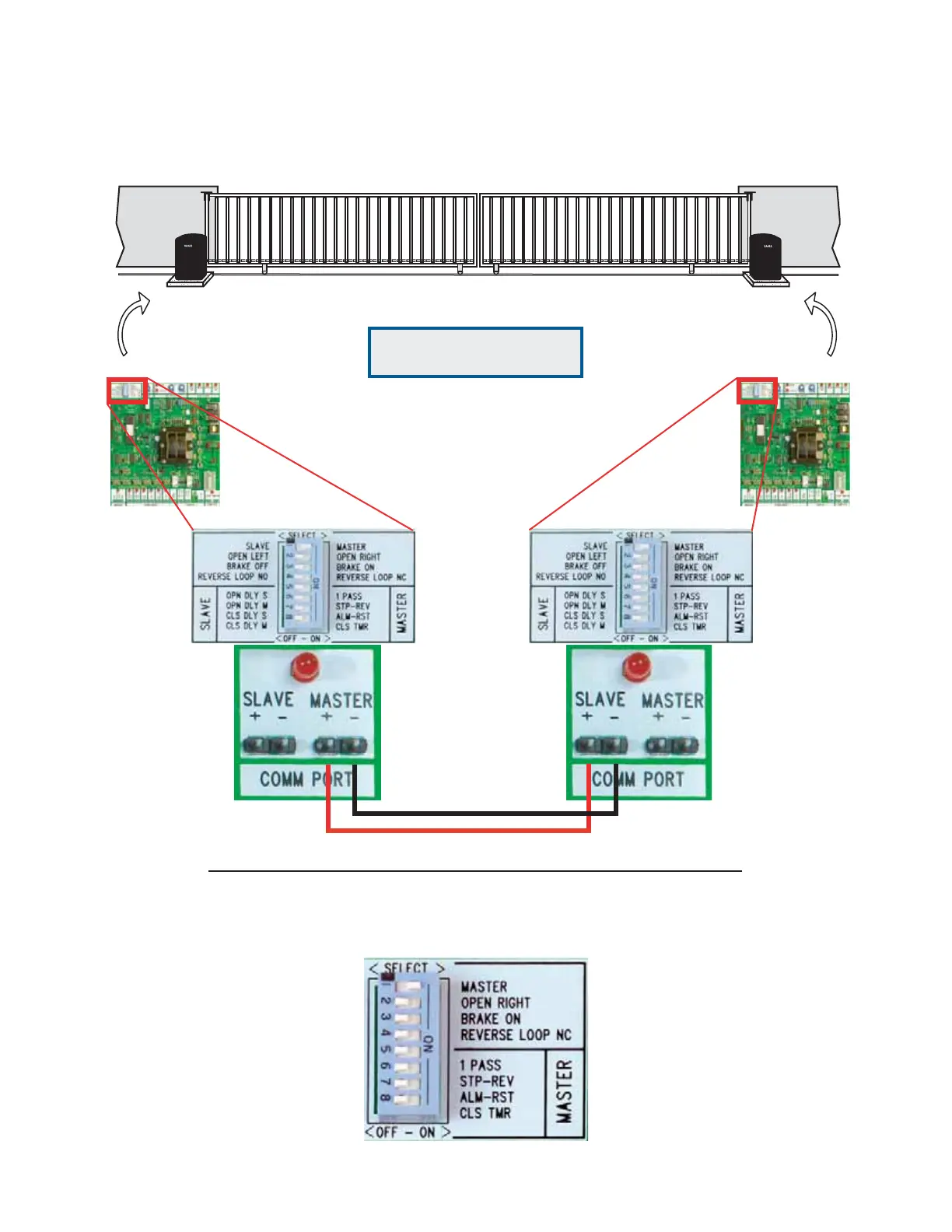

Master and Slave Operation
____________________
Set dip switch #1
(ON) for the Master
Set dip switch #1
(OFF) for the Slave
Use the feature selector to choose available features by designating the various switches (1 through 8).
These accessories include:
Reverse Loop, Phantom Loop, Exit
Loop, 3 Button Station, Key Switch
Lock Box, Fire Dept. Box, Edge
Sensors, Telephone System...Etc.
NOTE: Please remember the Eagle
Diamond Control Board allows you to
connect accessories to the Master or
Slave operators.
