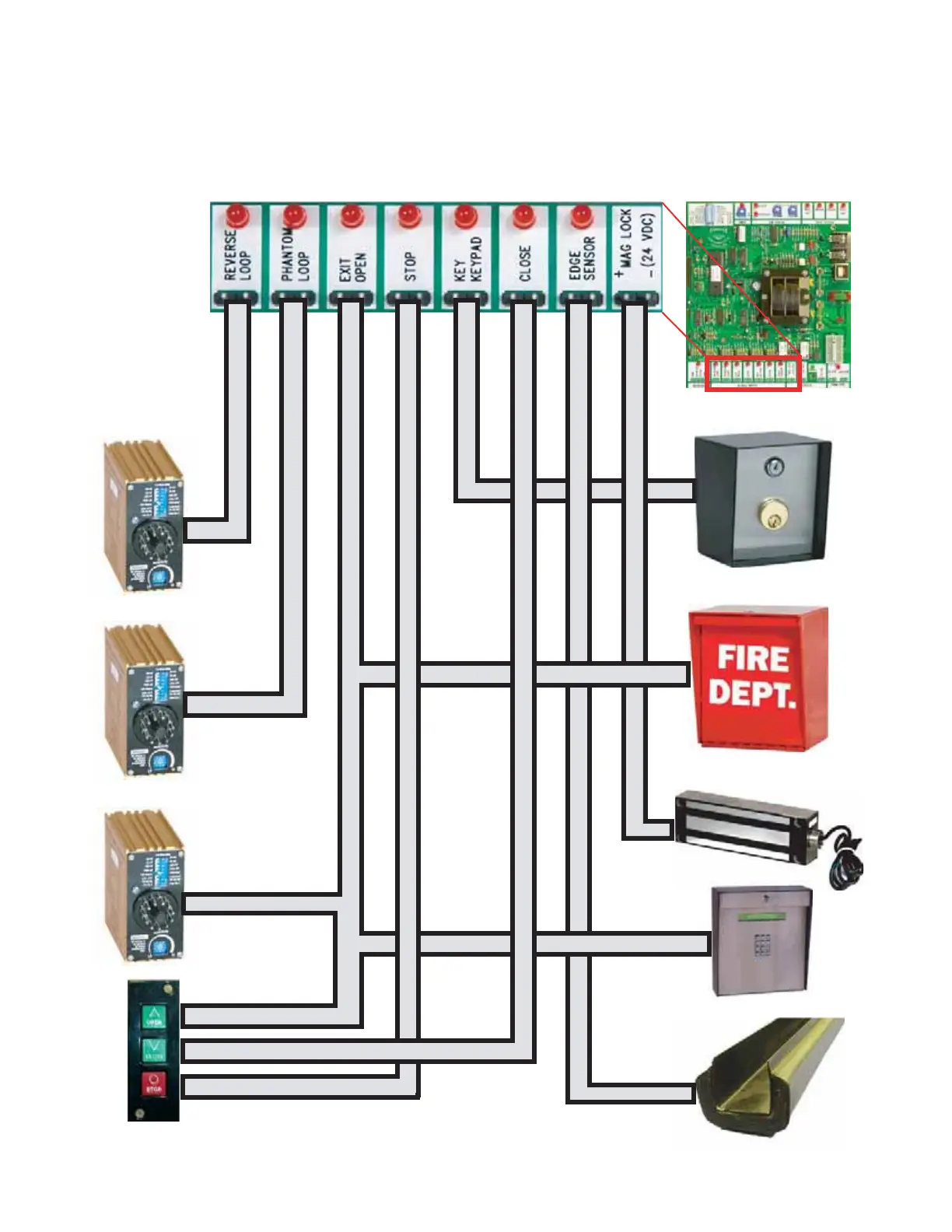

Eagle Access Control Systems Eagle-2000 series - Connecting Accessories; Accessory Connection Diagram

Slide Gate Operators / Eagle-2000 Series / Eagle-1000 Series
____________________
Connecting The Accessories
With the exeption of the MAG Lock, all of these accessories can be installed
on the Master or Slave operator.
Distributed by AFW Access Systems • www.AnchorMiami.com/afwas
(16)
Reverse
Loop
Phantom
Loop
Exit Loop
Three Button
Push Station
Key Lock Box
Fire Lock Box
MAG Lock
Phone Entry
System
Edge Sensor
Open
Close
Stop
