Eagle 2000 BWS - Operation; Operational Steps & Film Loading

- 15 -

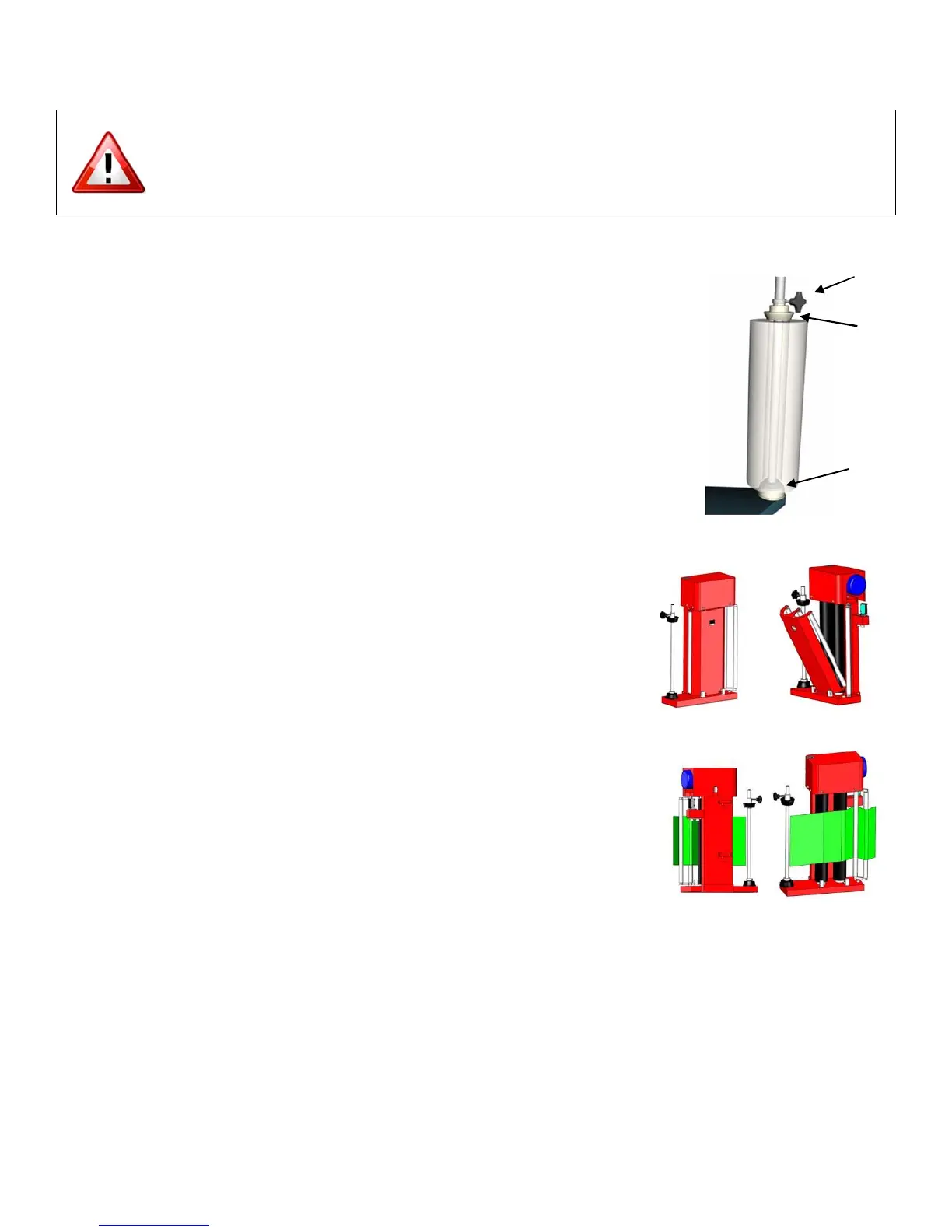

3.1 Operational Steps & Film Loading
BEFORE LOADING FILM, PRESS THE EMERGENCY
STOP BUTTON AND TURN THE POWER
SWITCH TO THE OFF POSITION
Loading stretch film into carriage
Step 1 - Loosen fastening screw "A" and take off
roll holder "B". (See Fig. 3-1)
Step 2 - Center the film core over the film shaft
and lower onto the lower orientation
plate "C" of the film shelf. (See Fig. 3-1)
Step 3 - Mount roll holder "B" and re-tighten
fastening screw "A". (See Fig. 3-1)
Step 4 - Push down handle "E" to open carriage
door. Then press the film through in the
direction of the arrow and close the door
(do not slam). Pass the film behind and
around the first roller and then between
the first and second roller.
(See Fig. 3-3)
Note: Do not slam or force the carriage door closed. Doing so
may cause damage to hinges and carriage door locking mechanism. Do not use sharp objects
on or near rollers as they can be easily damaged.
Fig. 3-1
Fig. 3-2
Fig. 3-3
A
B
C
