Eagle 2000 BWS - Turntable Home Switch Maintenance

- 32 -
5.3 Turntable Home Switch
BE SURE TO DISCONNECT ALL POWER TO THE MACHINE PRIOR
TO ANY MAINTENANCE WORK

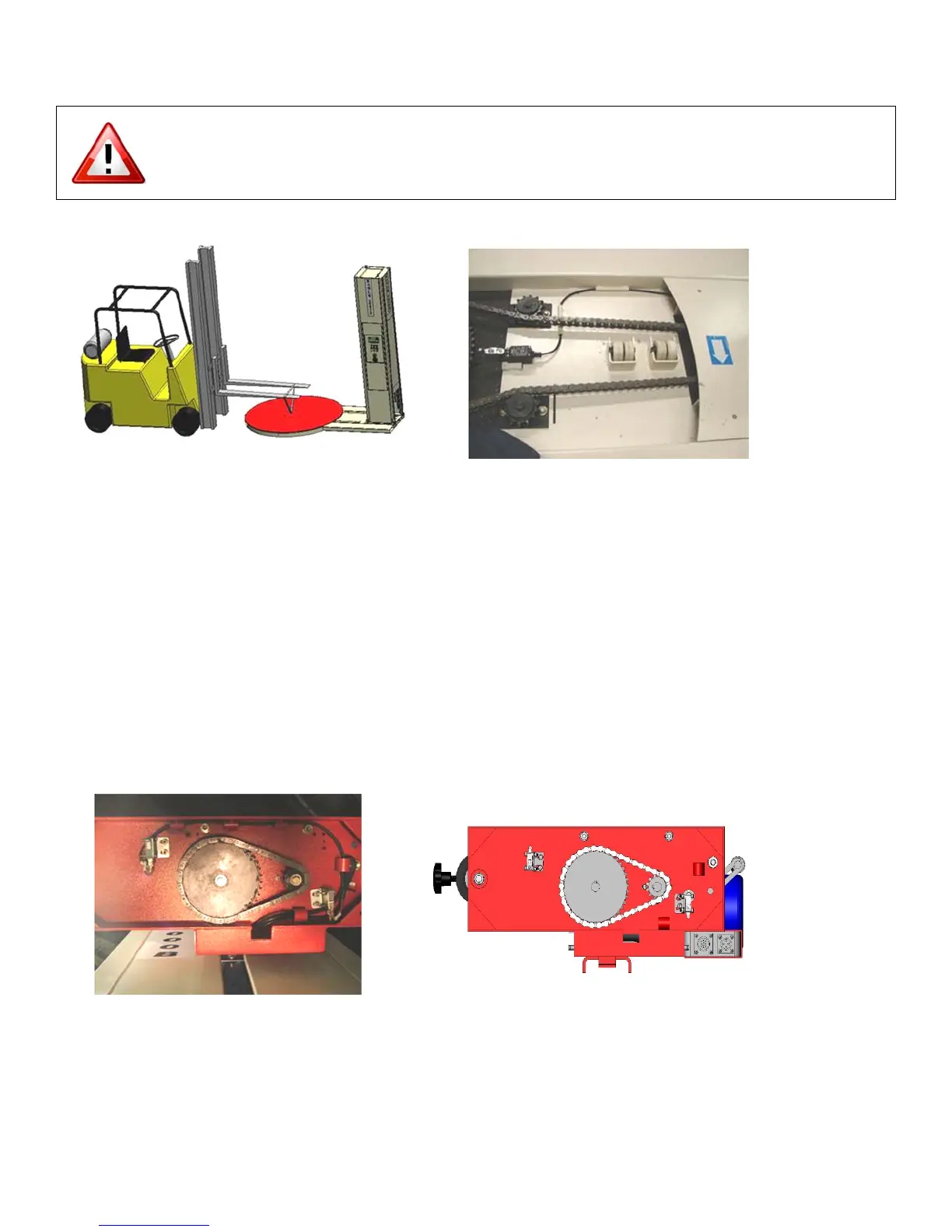

Fig. 4-1 Fig. 4-2
Turntable
 Remove the six M10 flat head cap screws in the turn table.
 Screw in one M10 eyebolt rated for lifting into the tapped hole in the turn plate. Lift the turn table
using a hoist and chain rated for a 500lb load.
(See Fig. 4-1)
 Lift the turntable just clear of the frame and use the forklift to remove the table. For safety reasons,
keep the disk low to the ground.
 Lubricate the chain and gears. Inspect the items and clean out any debris.
 The chain and gears need lubricated every three months. (See Fig. 4-2)
Pre-Stretch Film Carriage
Fig. 4-3 Fig. 4-3
 Lubricate the drive chain of the carriage on a monthly basis. (See Fig. 4-3)
