Eagle 2000 BWS - Page 33

- 33 -
5.3 Turntable Home Switch

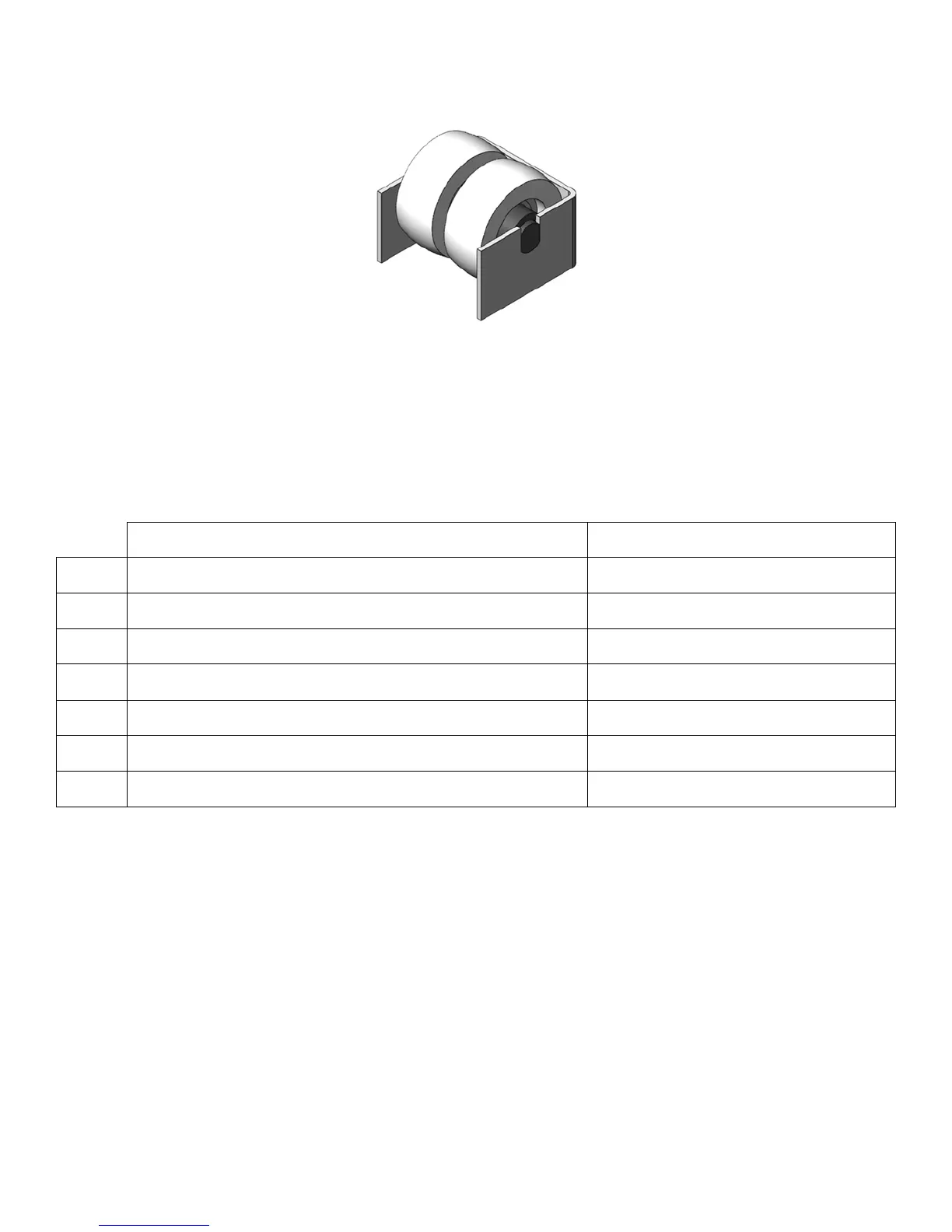

Fig. 4-4
 Remove all 24 idler wheels supporting the turntable rotation if there is excessive bearing play. If
the diameter is less than 53mm or there is abnormal noise during operation, replace the bad
contact rollers. (See Fig. 4-4)
Name Part Numbe
r
1 Shrink Ring FG-03A-20
2 Core Holder Washer FG-03A-21
3 Core Holder FG-03A-19
4 Roll Holder FG-03A-18
5 Film Tension Switch FG-03-11
6 Idler Wheel FG-01A-20
7 Chain 12A
