Eaton 93E UPS 15-80 kVA (380/400/415 V) Installation and Operation Manual
© Eaton Corporation plc 2015. All rights reserved. Revision: 001
Document ID: 614-01975-00
31 (133)
Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6 illustrate the UPS
cabinet dimensions. The dimensions are in millimeters. Cable conduit
inlets are illustrated with highlight.

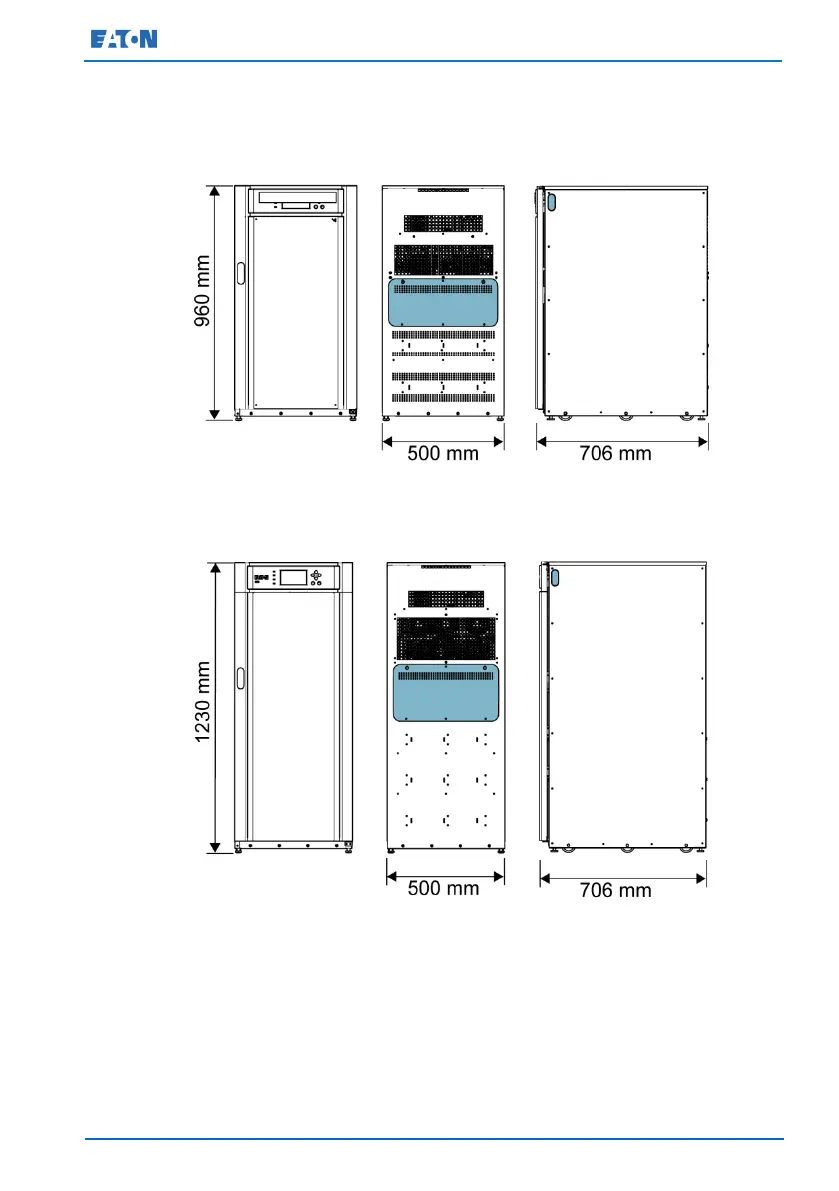

Figure 2. UPS cabinet dimensions (Eaton 93E 15-20 kVA front, rear and right side
views)
Figure 3. UPS cabinet dimensions (Eaton 93E 30 kVA front, rear and right side
views)
