Eaton 9E-IN 2K XL User Manual

-23-
time (in unit Min or Sec) would display in turn every 2s.
When the UPS is running in battery mode, the buzzer beeps once
every 4 seconds. If the “ON” button on the front panel is pressed for
more than 1 second, the buzzer will stop beeping (in silence mode).
Press the “ON” button once again for more than 1 second to resume
the alarm function.

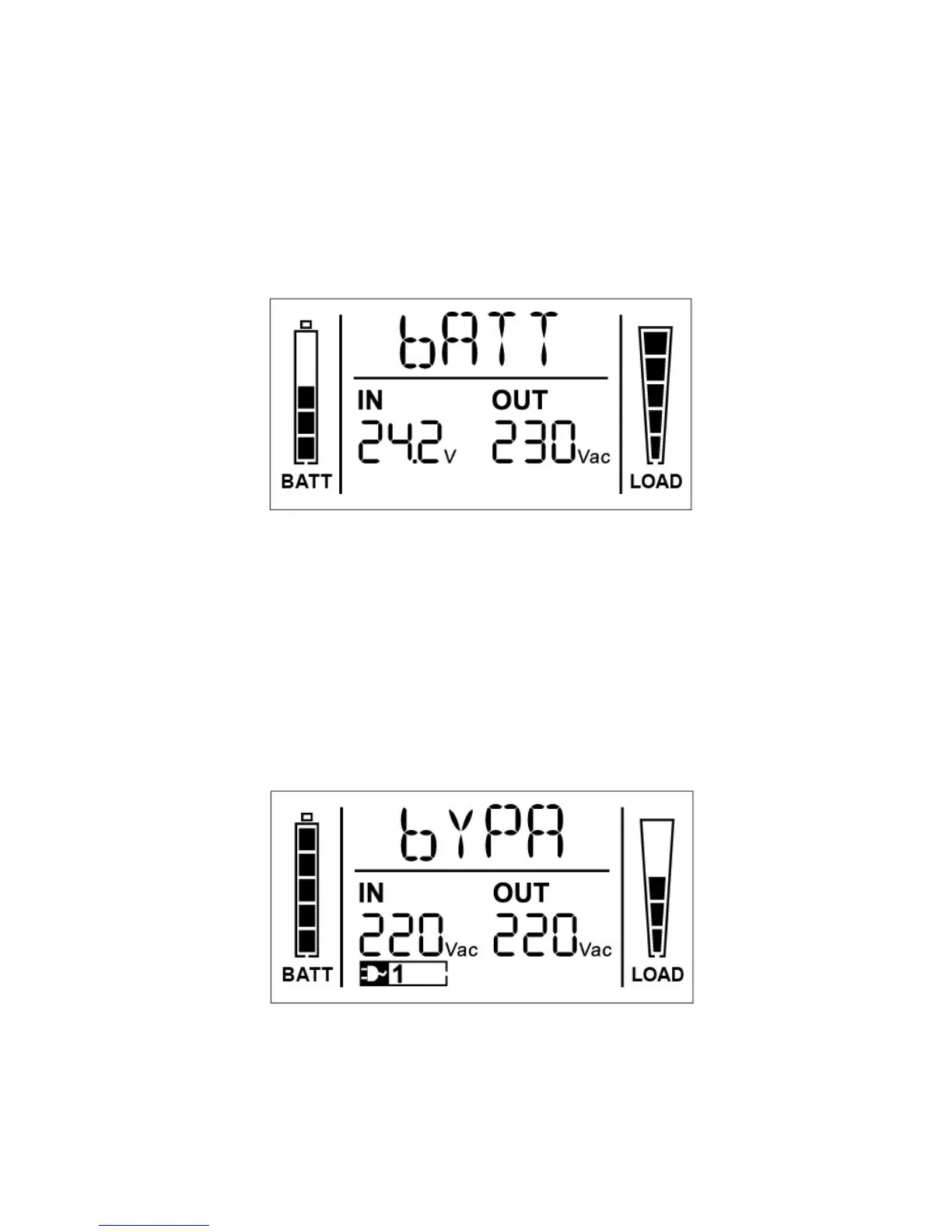

■ Figure 6.2 The Battery mode
6.3 Bypass mode
The LCD display in bypass mode is shown as figure6.3. The
information about the mains power, the battery level, the UPS output
and the load level will be displayed. The UPS will beep once every 2
minutes in bypass mode. The “bYPA” string indicates UPS working in
the bypass mode
■ Figure 6.3 The Bypass mode
6.4 No Output mode
The LCD display in No output mode is shown as figure6.4. The

Eaton 9E-IN 2K XL Specifications

General

Brand	Eaton
Model	9E-IN 2K XL
Category	UPS
Language	English
