Eaton 9E-IN 2K XL User Manual

-25-
6.7 Abnormal mode
In abnormal mode such as Bus fault etc., the corresponding fault string
would be shown on LCD display to indicate the status of the UPS, and
the background light will become red color. For example “SHOR” would
be shown when the connected load or the UPS output is in
short-circuited, the LCD display is shown as figure6.5 followings.

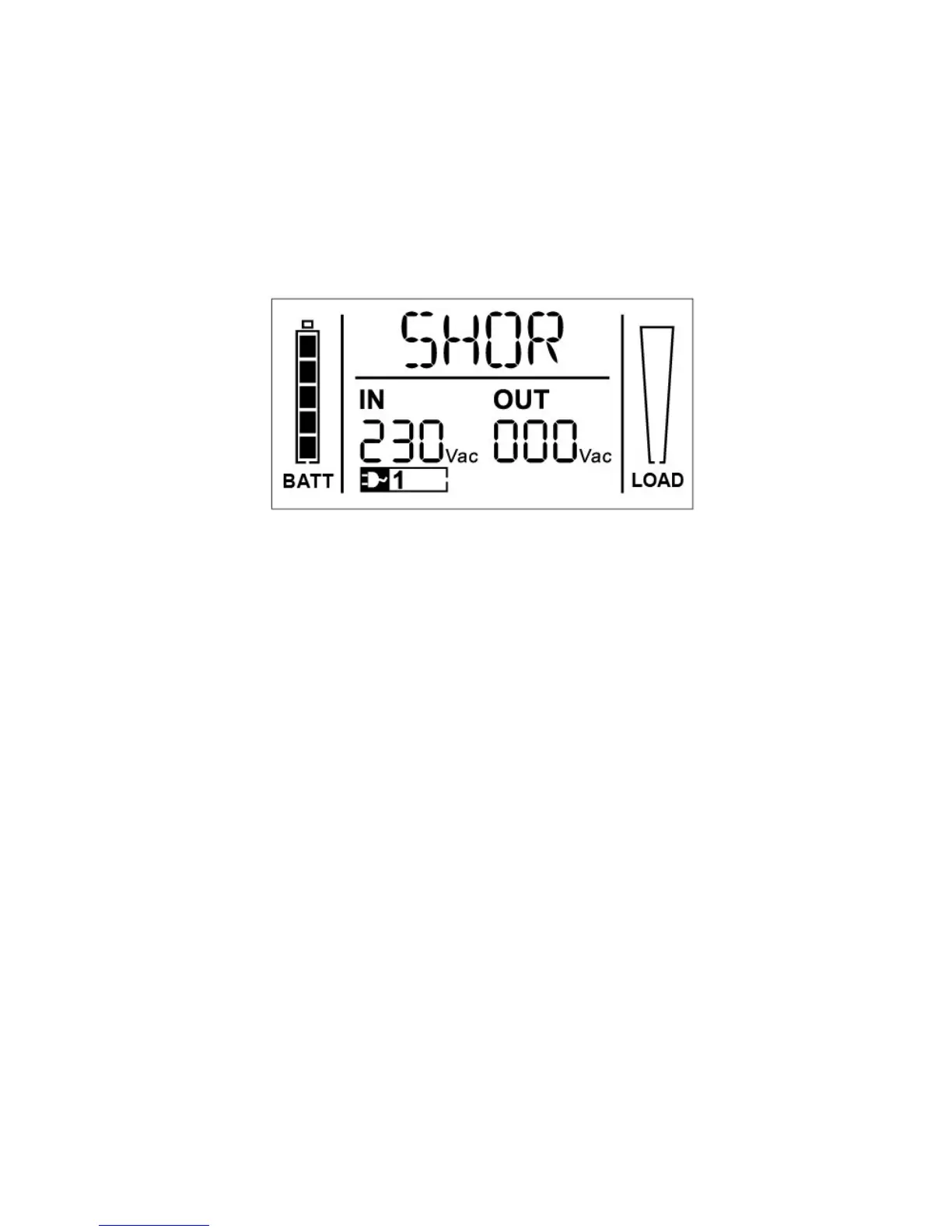

■ Figure 6.5 The Fault mode

Eaton 9E-IN 2K XL Specifications

General

Output Power	1800 W
Waveform	Pure Sinewave
Form Factor	Tower
Power Rating	2000 VA
Topology	Online Double Conversion
Output Voltage	230V
Output Frequency	50/60 Hz
Battery Type	Sealed Lead Acid
Typical Recharge Time	4 hours
Communication	USB, RS232
Operating Temperature	0 to 40°C
