7. Setting by LCD Module
The output voltage/frequency, Auto bypass status, operating mode in No
output mode or Bypass mode, charger current, external Battery AH and
battery remaining time(only for 1K/2K/3K) function in all mode could be set
directly through LCD module.
The output frequency could be set to 50Hz and 60Hz. The bypass state
could be set to enable and disable. The operating mode of UPS could be set
to Normal, ECO and Converter mode. Charger current (only for
1KXL/2KXL/3KXL) could be set to 2A/4A/6A/8A/10A for 1KXL and 1-10A for
2KXL/3KXL . External Battery Ah could be set to 5 to 300Ah.For
1KXL/2KXL/3KXL: The output voltage could be set to 200V, 208V, 220V,
230V and 240V. For 1K/2K/3K: The output voltage could be set to 220V,
230V and 240V.
In bypass or no output mode, pressing the “Enter” button on the LCD panel

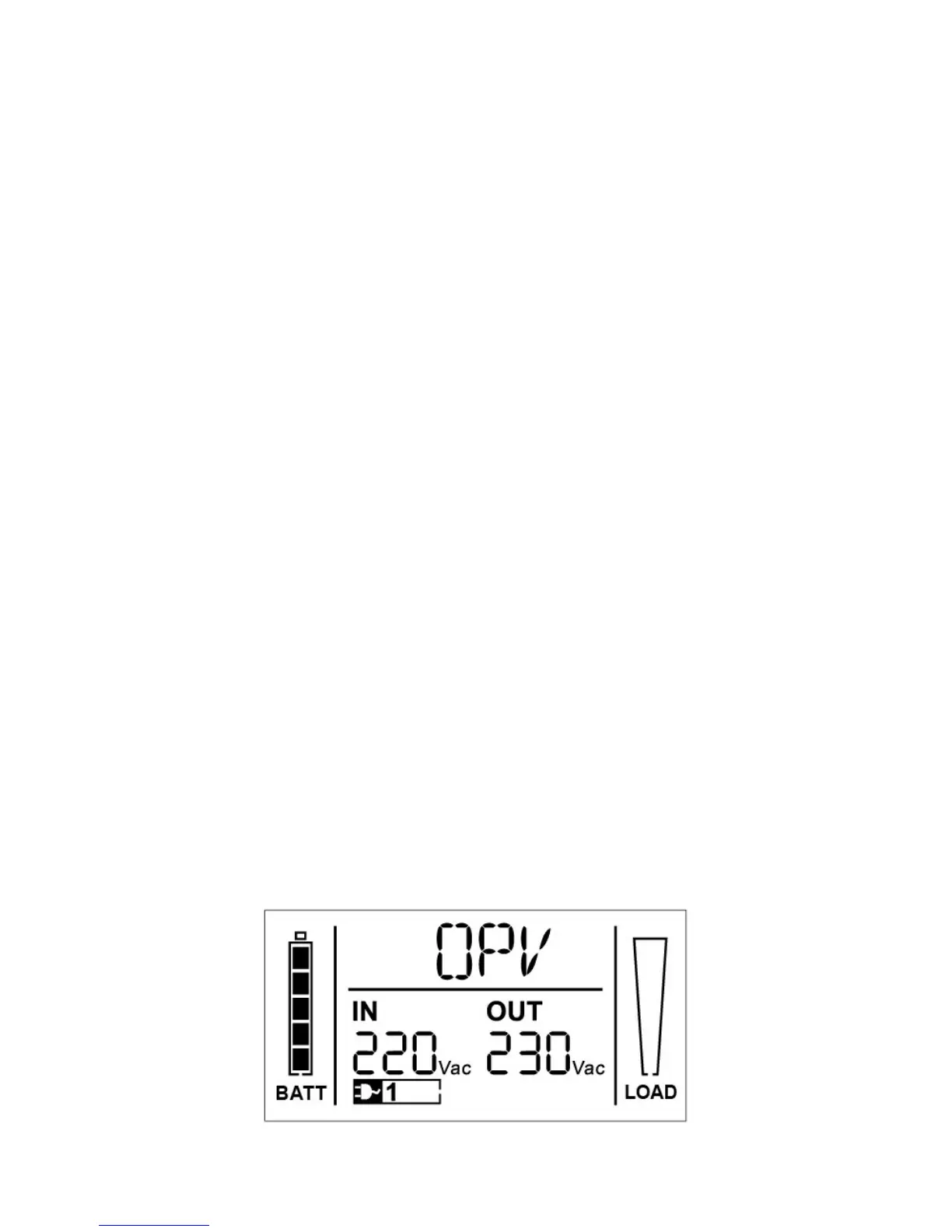

for more than 1 second to enter setting mode. The LCD display is shown in
the following figure7.1.
The string “OPV” that stands for output voltage. “230Vac” indicates the
existing output voltage is 230Vac. if you want to set output voltage, press the
“Enter” button for more than 1 second, a flickering string “220 (for
1K/2K/3K ) ” or “200 (for 1KXL/2KXL/3KXL ) ” would be shown, if the “Enter”
button is pressed again, the string “220 (for 1K/2K/3K ) ” or “200 (for
1KXL/2KXL/3KXL ) ” tur n to flickerless, the output volt is changed to 220V
(for 1K/2K/3K ) or 200V (for 1KXL/2KXL/3KXL ) ; if the “Select” button is
pressed for more than 1 second, the next flickering string “230” appear, the
order of flickering string is 220 – 230 – 240 – 220 – 230(for 1K/2K/3K ) or
200 – 208 – 220 – 230 – 240(for 1KXL/2KXL/3KXL ), Press “Enter” button to
confirm the output volt what you want.
