4. Installation for EBM(s)

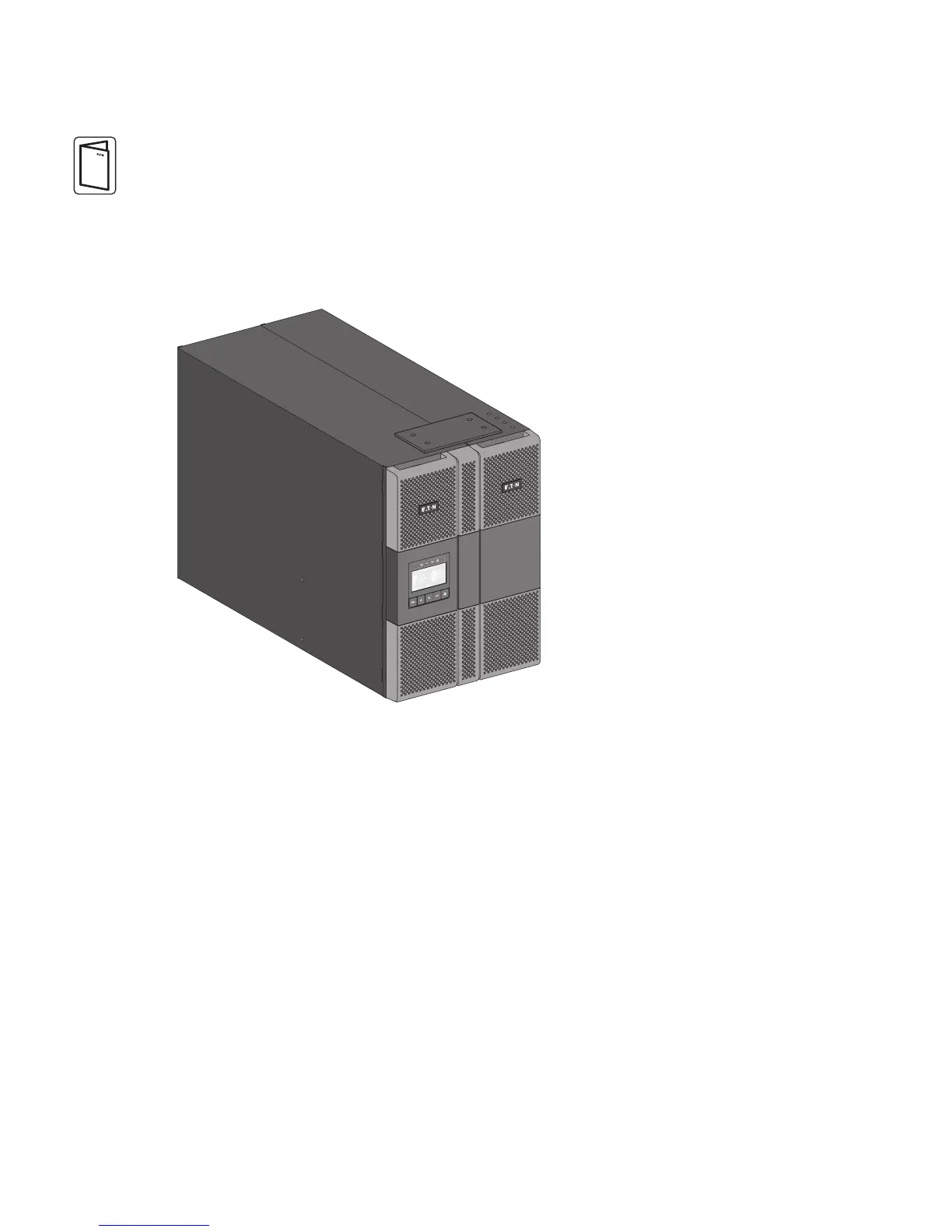

4.5 Tower installation
If you ordered other UPS accessories, refer to specific user manuals to check the tower installation
with the UPS.
To install the cabinet:
1. PlacetheUPSonaat,stablesurfaceinitsnallocation.
2. Always keep 150 mm of free space behind the UPS rear panel.
3. Ifinstallingadditionalcabinets,placethemnexttotheUPSintheirnallocation.
4. Install mounting brackets to attach the EBM to UPS module.
