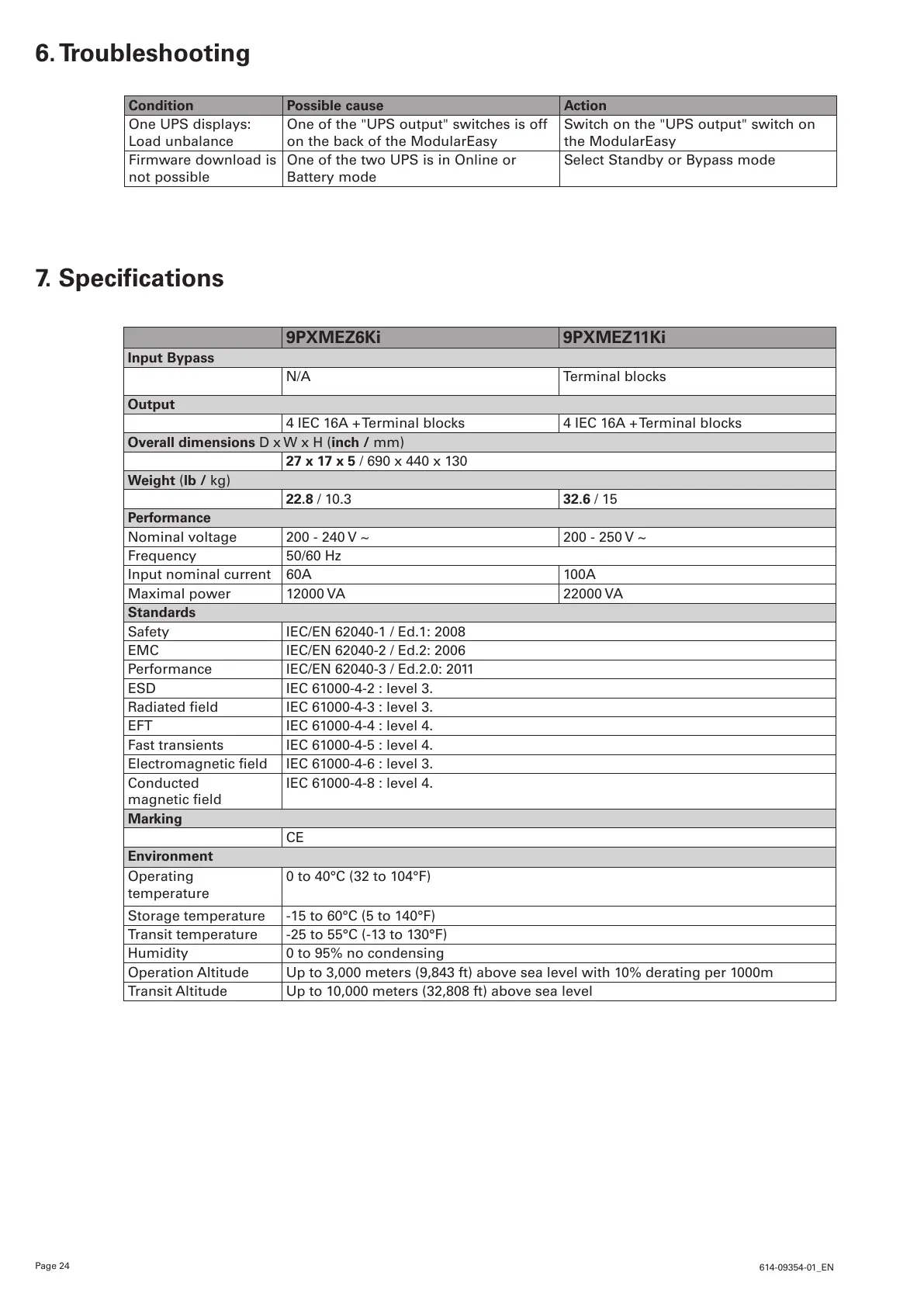

Page 24
614-09354-01_EN
7. Specifications
9PXMEZ6Ki 9PXMEZ11Ki
Input Bypass
N/A Terminal blocks
Output
4 IEC 16A + Terminal blocks 4 IEC 16A + Terminal blocks
Overall dimensions D x W x H (inch / mm)
27 x 17 x 5 / 690 x 440 x 130
Weight (lb / kg)
22.8 / 10.3 32.6 / 15
Performance
Nominal voltage 200 - 240 V ~ 200 - 250 V ~
Frequency 50/60 Hz
Input nominal current 60A 100A
Maximal power 12000 VA 22000 VA
Standards
Safety IEC/EN 62040-1 / Ed.1: 2008
EMC IEC/EN 62040-2 / Ed.2: 2006
Performance IEC/EN 62040-3 / Ed.2.0: 2011
ESD IEC 61000-4-2 : level 3.
Radiatedeld IEC 61000-4-3 : level 3.
EFT IEC 61000-4-4 : level 4.
Fast transients IEC 61000-4-5 : level 4.
Electromagneticeld IEC 61000-4-6 : level 3.
Conducted
magneticeld
IEC 61000-4-8 : level 4.
Marking
CE
Environment
Operating
temperature
0 to 40°C (32 to 104°F)
Storage temperature -15 to 60°C (5 to 140°F)
Transit temperature -25 to 55°C (-13 to 130°F)
Humidity 0 to 95% no condensing
Operation Altitude Up to 3,000 meters (9,843 ft) above sea level with 10% derating per 1000m
Transit Altitude Up to 10,000 meters (32,808 ft) above sea level
6. Troubleshooting
Condition Possible cause Action
One UPS displays:
Load unbalance
One of the "UPS output" switches is off
on the back of the ModularEasy
Switch on the "UPS output" switch on
the ModularEasy
Firmware download is
not possible
One of the two UPS is in Online or
Battery mode
Select Standby or Bypass mode

Table of Contents
