Wiring and DIP Switches

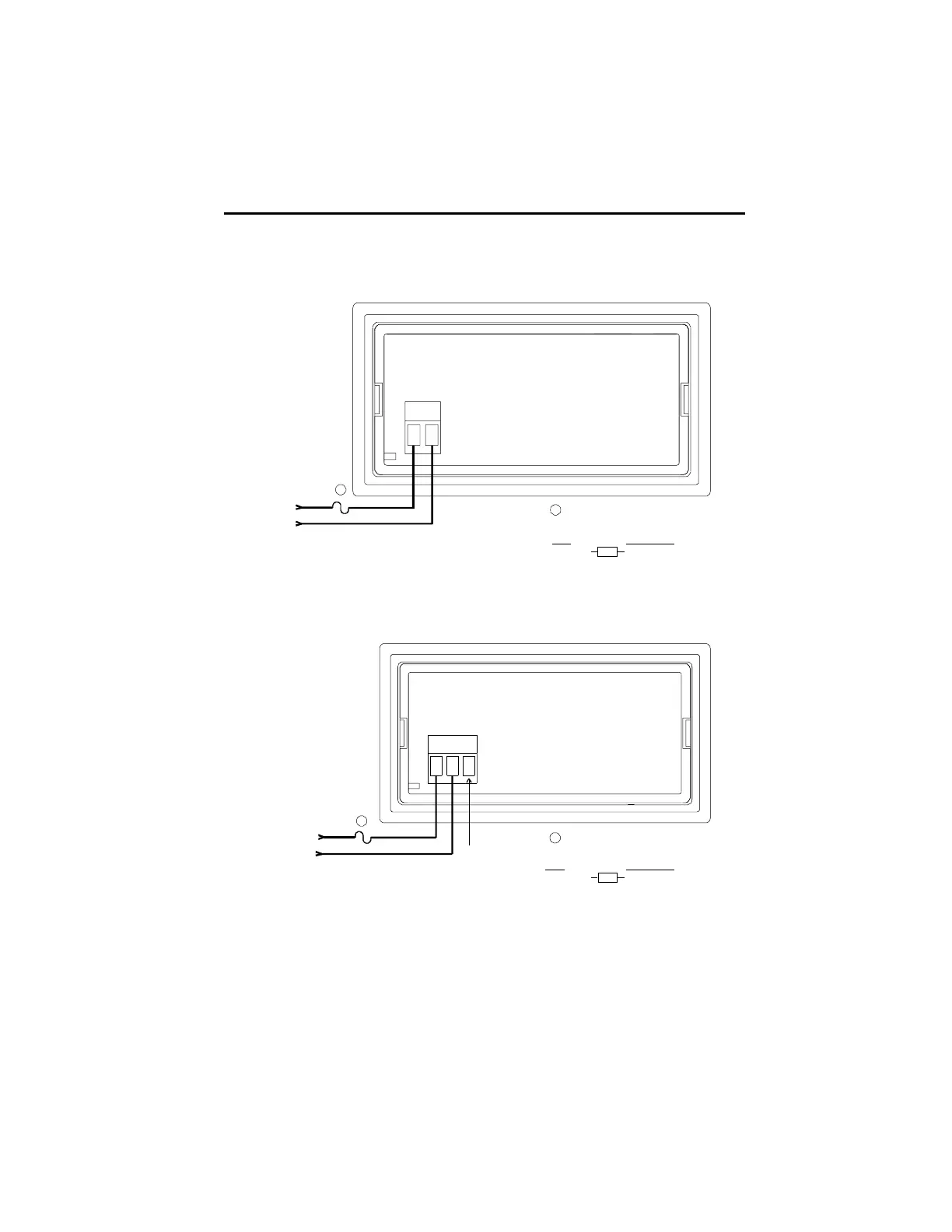

DC Power Input (for DC powered models 57700-47X)
Durant
®
1
1
Power In +
9-30 VDC -
No Internal Fuse 1
{
External Fuse Size
U.S.
European
2 AMP, 50 V
Time Delay
T2A, 50 V
Time Delay
12 VA
AC Power Input (for AC powered models 57701-47X)
No Internal Fuse
1
Power In L1
85-265 VAC L2
47-63 Hz
20 VA
Not
Used
1
Durant
®
1
{
External Fuse Size
U.S.
European
0.2 AMP, 250 V
Time Delay
T200mA, 250 V
Time Delay
WIRING
