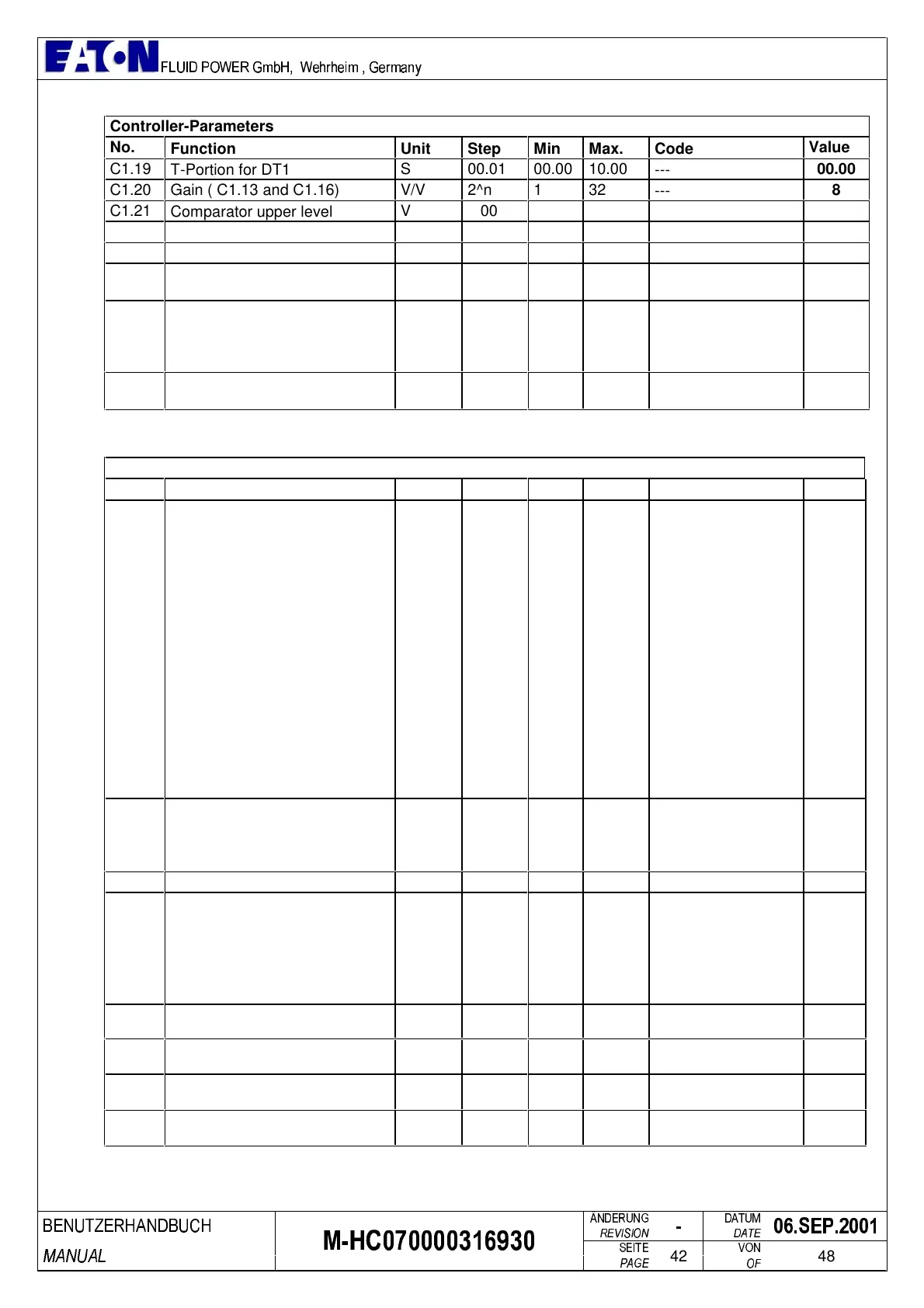

Controller-Parameters
No.
Function Unit Step Min Max. Code
Value
C1.19
T-Portion for DT1
S 00.01 00.00 10.00
---
00.00
C1.20
Gain ( C1.13 and C1.16)
V/V 2^n 1 32
---
8
C1.21
Comparator upper level
V 0.001 -9.999 +9.999
---
0.500
C1.22
Comparator lower level
V 0.001 -9.999 +9.999
---
-0.500
C1.23
Comparator delay into window
S 00.01 00.00 +99.99
---
00.10
C1.24
Comparator delay out of
window
S 00.01 00.00 +99.99
---
00.10
C1.25
Comparator selection
--- 1 0 3
off = off
1 = Set value
2 = Actual value
3 =Lag error
3
C1.26
Cable fracture detection
feedback
--- --- off 1
off = off; 1 = active
off
Table 5: Controller Parameters – as delivered condition
Extended-Parameters
No.
Function Unit Step Min Max. Code
Value
E00
Operation mode
Note:
5 = Reserved and
9 = Reserved
--- 1 1 11
1 = Open loop one
valve
2 = Open loop two
valves
3 = Closed loop one
valve
4 = Closed loop one
application
6 = Closed loop
valve/application
7 = Closed loop
valve/valve
8 = Closed loop
application/
application
10 = Closed loop no
valve one feedback
11 = Closed loop no
valve two feedback.
4
E01
Analog output
--- 1
1
and
14
13
and
21
1 = d1.01 to
13 = d1.13 and
14 = d2.01 to
21 = d2.13
11
E02
Push-Pull function
--- --- off 1
Off = off; 1 = active
off
E03
Solenoid selection
--- --- 0.800 3.500
0.800 = 0,8 A
1.100 = 1,1 A
1.300 = 1,3 A
1.600 = 1,6 A
2.400 = 2,4 A
2.700 = 2,7 A
3.500 = 3,5 A
1.600
E04
P-Portion current contr.
energize
--- 0001 0000 9999
---
0800
E05
I-Portion current contr.
energize
--- 0001 0000 9999
---
1000
E06
P-Portion cur. contr.
de-energize
--- 0001 0000 9999
---
1500
E07
I-Portion cur. contr.
de-energize
--- 0001 0000 9999
---
1000
