5.3 Maintenance on a UPS Equipped With the HotSwap MBP Module
The HotSwap MBP module makes possible
to service or even replace the UPS without
affecting the connected loads (HotSwap
function).
Maintenance:
1. Set switch (53) to the Bypass position.
The red LED (52) on the HotSwap MBP
module goes ON, indicating that the load
is supplied directly with AC power.
2. Stop the UPS by pressing the ON/OFF
button (27) on the UPS control panel. LED
(51) “UPS ON - OK to switch” goes OFF,
the UPS can now be disconnected and
replaced.
Return to normal operation:
1. Check that the UPS is correctly connected
to the HotSwap MBP module.
2. Start the UPS by pressing the ON/OFF
button (27) on the UPS control panel.
LED (51) “UPS ON - OK to switch” on
the HotSwap MBP module goes ON
(otherwise, there is a connection error
between the HotSwap MBP module and
the UPS).
3. Set switch (53) to the Normal position. The
red LED (52) on the HotSwap MBP module
goes OFF.
86-86710-00EN A02 - Page 26
5. Troubleshooting
86-86710-00 A02 UM.indd 26 14/01/2009 10:56:30
6. Appendices
6.1 Technical Specifications
(1) Depending on the output voltage selected: 100V / 104V / 110V / 120V / 127V, the output power is 1890VA /
1890VA / 2100VA / 2100VA / 2100VA.
(2) Depending on the output voltage selected: 100V / 104V / 110V / 120V / 127V, the output power is 2500VA /
2500VA / 2500VA / 3000VA / 3000VA.
(3) Standard output power is 2550 W, 2400 W with an EXB module.
(4) Values for 33% / 66% / 100% of UPS output.
(5) Programmable: 100V / 104V / 110V / 120V / 127V using the UPS Config software.
(6) Frequency-converter mode is programmable using the UPS Config software.
(7) Depending on the output voltage selected: 100V / 104V / 110V / 120V / 127V, the maximum output current is
18.9A / 18.2A / 19.1A / 17.5A / 16.5A.
(8) Depending on the output voltage selected: 100V / 104V / 110V / 120V / 127V, the output current is 25A / 24A /
22.7A / 25A / 23.6A.
(9) EXB is in 3U model only. Standard UPS can be connected with up to 4 EXB.
EX 2200 EX 3000 EXB
(9)
Output power
2100 VA
(1)
/
1650 W
3000 VA
(2)
/
2550 W
(3)
Electrical supply network
w Rated input voltage
w Input voltage range
w Frequency
w Power factor
w Leakage current
100-120 V
55 / 72 / 100 to 142 V
(4)
50/60 Hz (autoselection)
> 0.95
< 2 mA
Load output
w Voltage
w Frequency
w Harmonic distortion
w Overload capacity
w Current
100V
50/60 Hz ±0,5%
(6)
< 4% for linear load, < 6% for nonlinear load
102% continuous, 105% 20s, > 130% 1.5s
17.5 A
(7)
25 A
(8)
Battery
6 x 12V - 7 Ah,
sealed lead acid,
maintenance free
6 x 12V - 9 Ah,
sealed lead acid,
maintenance free
Two 6 x 12 V - 9 Ah
strings, sealed lead acid,
maintenance free
Environment
w Operating temperature
range
w Relative humidity
w Storage temperature
range
w Altitude
0 - 40°C (32 - 104°F )
20 - 90% (without condensation)
-20 - 40°C (-4 -104°F)
1000 m
w Noise level
< 47 dBA
86-86710-00EN A02 - Page 27
86-86710-00 A02 UM.indd 27 14/01/2009 10:56:31
EX 2200 EX 3000 EXB
(9)
Output power
1890 VA
(1)
/
1480 W
2500 VA
(2)
/
2150 W
(3)
Electrical supply network
Rated input voltage
Input voltage range
Frequency
Power factor
Leakage current
Single phose 100v
55 / 72 / 100 to 142 V
(4)
Single phose 100v ±3%
(4)
50/60 Hz (autoselection)
> 0.95
< 2 mA
Load output
Voltage
Frequency
Harmonic distortion
Overload capacity
Current
50/60 Hz ±0,5%
(6)
< 4% for linear load, < 6% for nonlinear load
102% continuous, 105% 20s, > 130% 1.5s
18.9A
(7)
25 A
(8)
Battery
6 x 12V - 7 Ah,
sealed lead acid,
maintenance free
6 x 12V - 9 Ah,
sealed lead acid,
maintenance free
Two 6 x 12 V - 9 Ah
strings, sealed lead acid,
maintenance free
Environment
Operating temperature
range
Relative humidity
Storage temperature
range
Altitude
0 - 40°C (32 - 104°F )
20 - 90% (without condensation)
-20 - 40°C (-4 -104°F)
1000 m
Noise level
< 47 dBA
(1) Depending on the output voltage selected: 100V / 104V / 110V / 120V / 125V, the output power is 1890VA /
1890VA / 2100VA / 2100VA / 2100VA.
(2) Depending on the output voltage selected: 100V / 104V / 110V / 120V / 125V, the output power is 2500VA /
2500VA / 2500VA / 3000VA / 3000VA.
(3) Standard output power is 2550 W, 2400 W with an EXB module.
(4) Values for 33% / 66% / 100% of UPS output.
(5) Programmable: 100V / 104V / 110V / 120V / 125V using the UPS Config software.
(6) Frequency-converter mode is programmable using the UPS Config software.
(7) Depending on the output voltage selected: 100V / 104V / 110V / 120V / 125V, the maximum output current is
18.9A / 18.2A / 19.1A / 17.5A / 16.5A.
(8) Depending on the output voltage selected: 100V / 104V / 110V / 120V / 125V, the output current is 25A / 24A
/
22.7A / 25A / 23.6A.
(9) EXB is in 3U model only. Standard UPS can be connected with up to 4 EXB.

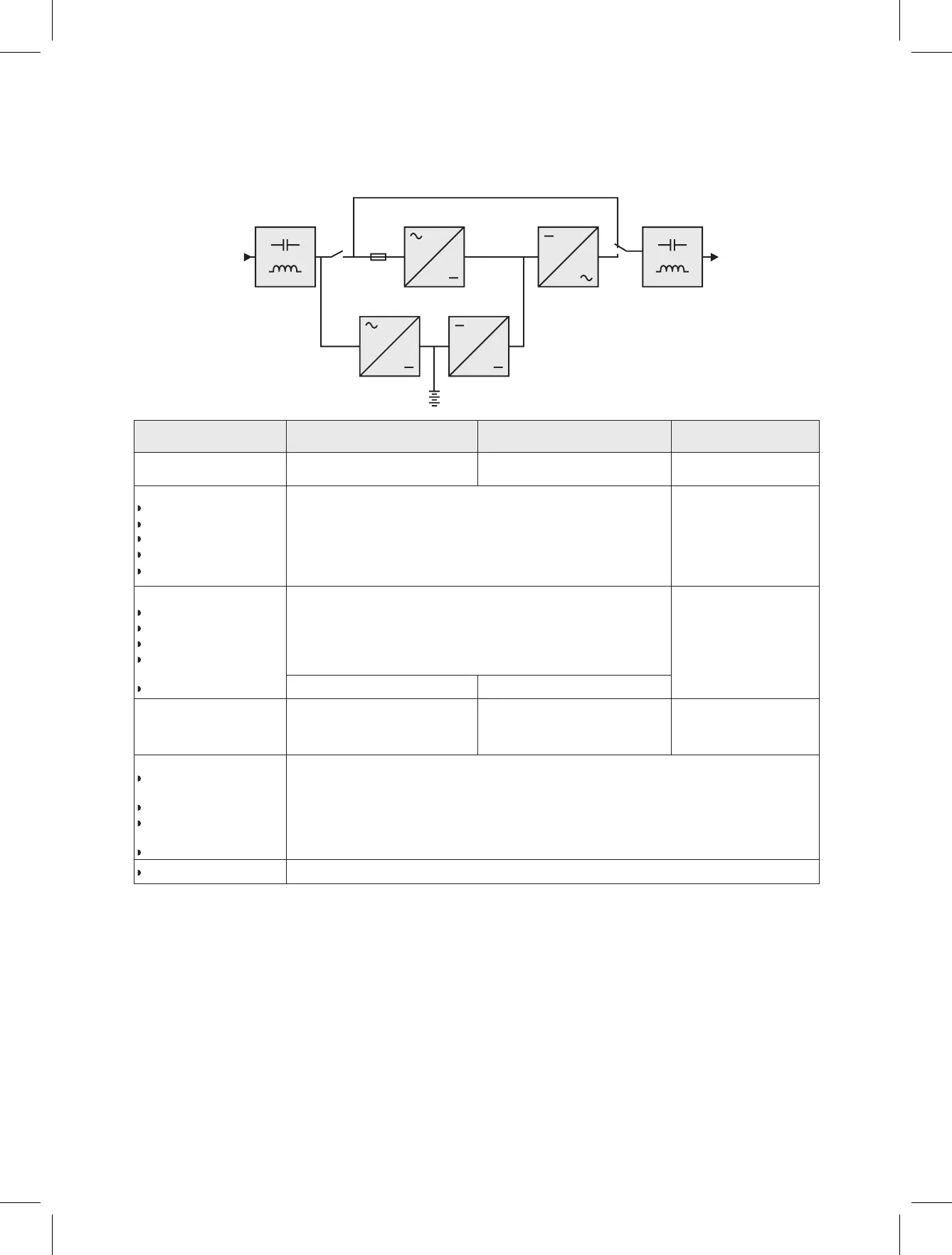

Filter FilterConverter
Battery
Charger
DC-DC
Inverter
Inverter
