Installation Instructions

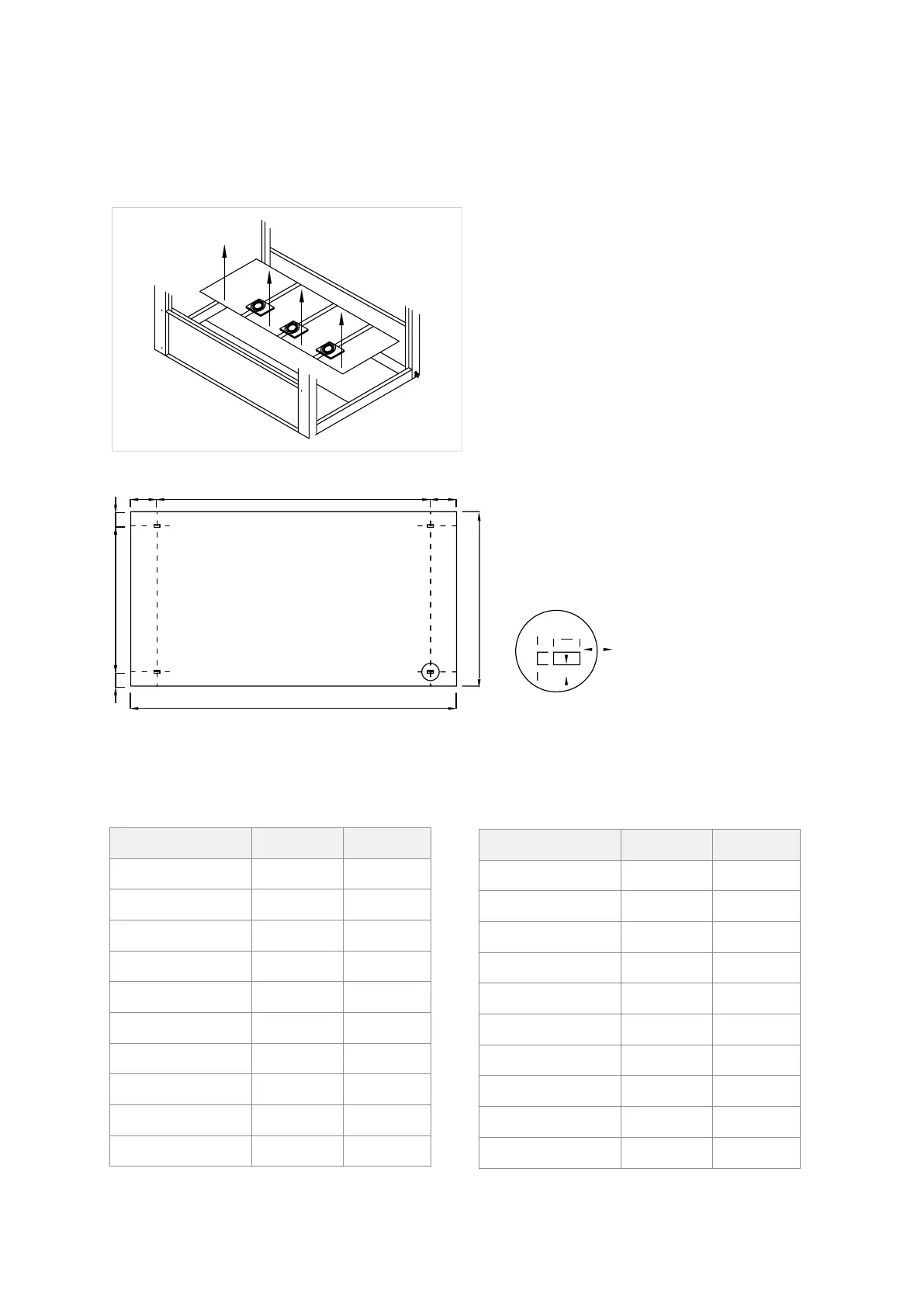

Fixing on the Ground
A
61
B
61
1176
112 112
1400
SWITCHGEAR BASE
25
12
4 fixing holes on base of every switchgear
Disassemble the cable clamps on the base
sheet metal and disassemble the base
sheet metals.
Fix the switchgear on the ground from fixing holes.
**Sizes in mm.
Hole Sizes for Fixing
Type A (mm) B (mm)
HMH 36-01 750 628
HMH 36-02 750 628
HMH 36-03 750 628
HMH 36-04 1000 878
HMH 36-05 1500 1378
HMH 36-06 750 628
HMH 36-07 750 628
HMH 36-08 1000 878
HMH 36-09 750 628
HMH 36-10 750 628
Type A (mm) B (mm)
HMH 36-11 750 628
HMH 36-12 1000 878
HMH 36-13 750 628
HMH 36-14 1500 1378
HMH 36-15 1000 878
HMH 36-16 1000 878
HMH 36-17 750 628
HMH 36-18 400 278
HMH 36-19 1000 878
HMH 36-20 1000 878
Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com 3
