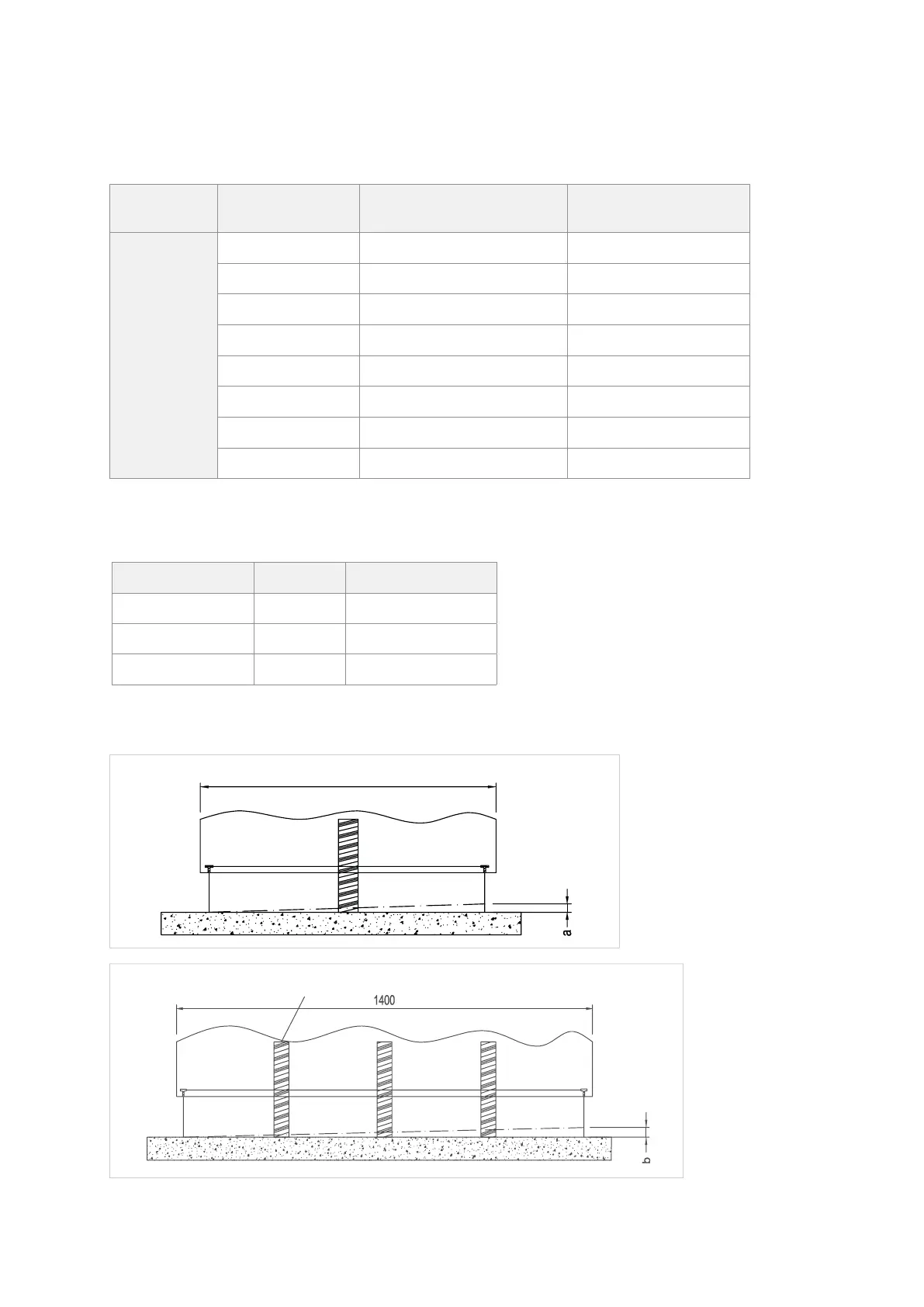

Cable Torsion Radius and Canal Depth
Cable Type
Section (mm²) Cable Torsion Radius (mm) Canal Depth F (mm)
1x35 525 550
1x50 555 580
1x70 585 610
1x95 600 620
1x120 620 650
1x150 630 665
1x185 650 680
1x240 690 720
Single Core Cables
Width a (max) b (max)
750 mm 3 6
1000 mm 4 6
1500 mm 7 6
**Sizes in mm.
The ground gradients should not
exceed the values given on the
chart for the switchgears to work
properly.
Switchgear width
Ground Gradient Tolerance
MV cables
