Operation and maintenance of
IZM low voltage air circuit breakers
MOELLER www.moeller.net/de/support
10/09 AWB1230-1605
Effective October 2009
Table 3. Rejection Interlock Pin Locations
Cell For:
Pin Locations
1 2 3 4 5 6 7 8
IZM93, IZM20 X X
IZM93, IZM20 X X X
IZM93, IZM20 X X X X
IZM97, IZM32 X X X X
IZM97, IZM32 X X X X X
IZM97, IZM32 X X X X X X
IZM97, IZME40 X X X X
IZM97, IZME40 X X X X X
IZM97, IZME40 X X X X X X
IZM99, IZM63 X X X
IZM99, IZM63, IZM40 X X X
IZM99, IZM63 X X X
IZM99, IZM63, IZM40 X X X
IZM99, IZM63 X X X X
IZM99, IZM63, IZM40 X X X X
IZM99, IZM63 X X X
IZM99, IZM63 X X X
IZM99, IZM63 X X X X
IZM99, IZM63 X X X X
Circuit breaker positioning
The IZM drawout circuit breaker has four normal positions:
•
REMOVE (withdrawn) (Figure 7)
•
DISCONNECT (Figure 8)
•
TEST (Figure 9)
•
CONNECT (Figure 10)
The REMOVE position is a position outside the compartment
on the cassette’s drawout rails where the circuit breaker is not
engaged with the levering mechanism. The DISCONNECT, TEST,
and CONNECT, positions are reached by means of the levering
mechanism.
With the breaker solidly positioned on the cassette’s extension rails
and levering-in mechanism in the DISCONNECT position, carefully
and firmly push the circuit breaker into the compartment as far as it
will go. The outer (recessed) portion of the circuit breaker faceplate
should align with the GREEN target line (labelled DISC) on the inside
top-left wall of the cassette (Figure 11).

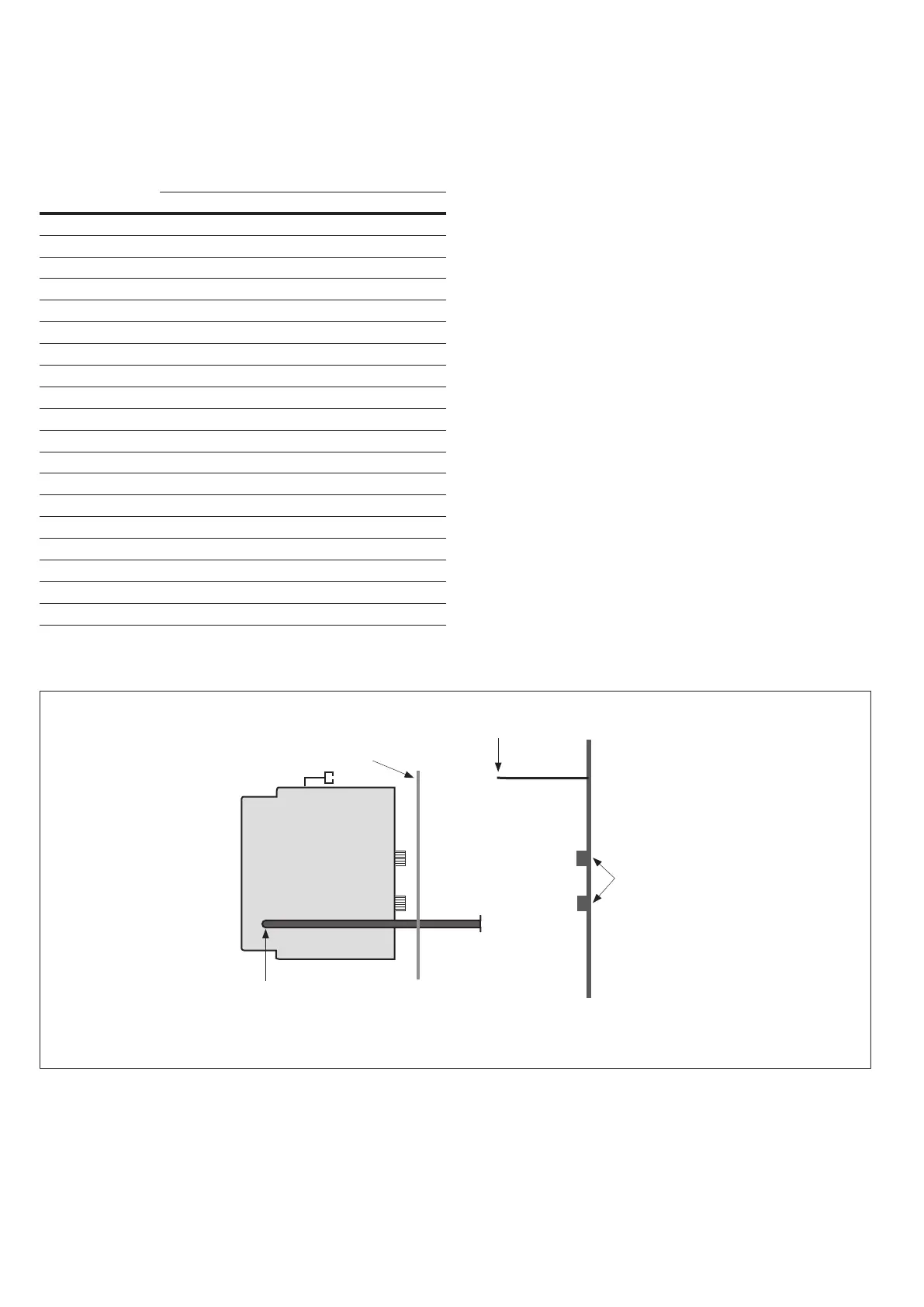

Figure 7. REMOVE Position
Compartment
Front Door
Secondary Connection
Not Made
Rear of
Compartment
Primary
Connections
Not Made
Circuit Breaker Out
of Compartment On
Extension Rails
•
No Electrical Connections Made
•
Breaker On Extension Rails
•
Remove or Inspection Position
Circuit
Breaker
Side View
