Eaton LMR PLUS - Electric Motor Connection Diagrams; Wye-Delta Lower Voltage Motor Wiring; Wye-Delta Higher Voltage Motor Wiring

1. M O T O R C O NN E CTIO N S VA R Y PLE ASE R E F E R TO SP E C IFIC
M O TO R M A NU F A C TU R E R'S CO N NE C TIO N D IA G R A M .
2. FO R S IN G LE VO LTAGE 12 LE A D M O TO R S
USE LO W ER V O LT A G E CO N N E C TIO N D IA G R AM
1. M O T O R C O NN E CTIO N S VA R Y PLE ASE R E F E R TO SP E C IFIC
M O TO R M A NU F A C TU R E R'S CO N NE C TIO N D IA G R A M .
2. FO R S IN G LE VO LTAGE 12 LE A D M O TO R S
USE LO W ER V O LT A G E CO N N E C TIO N D IA G R AM

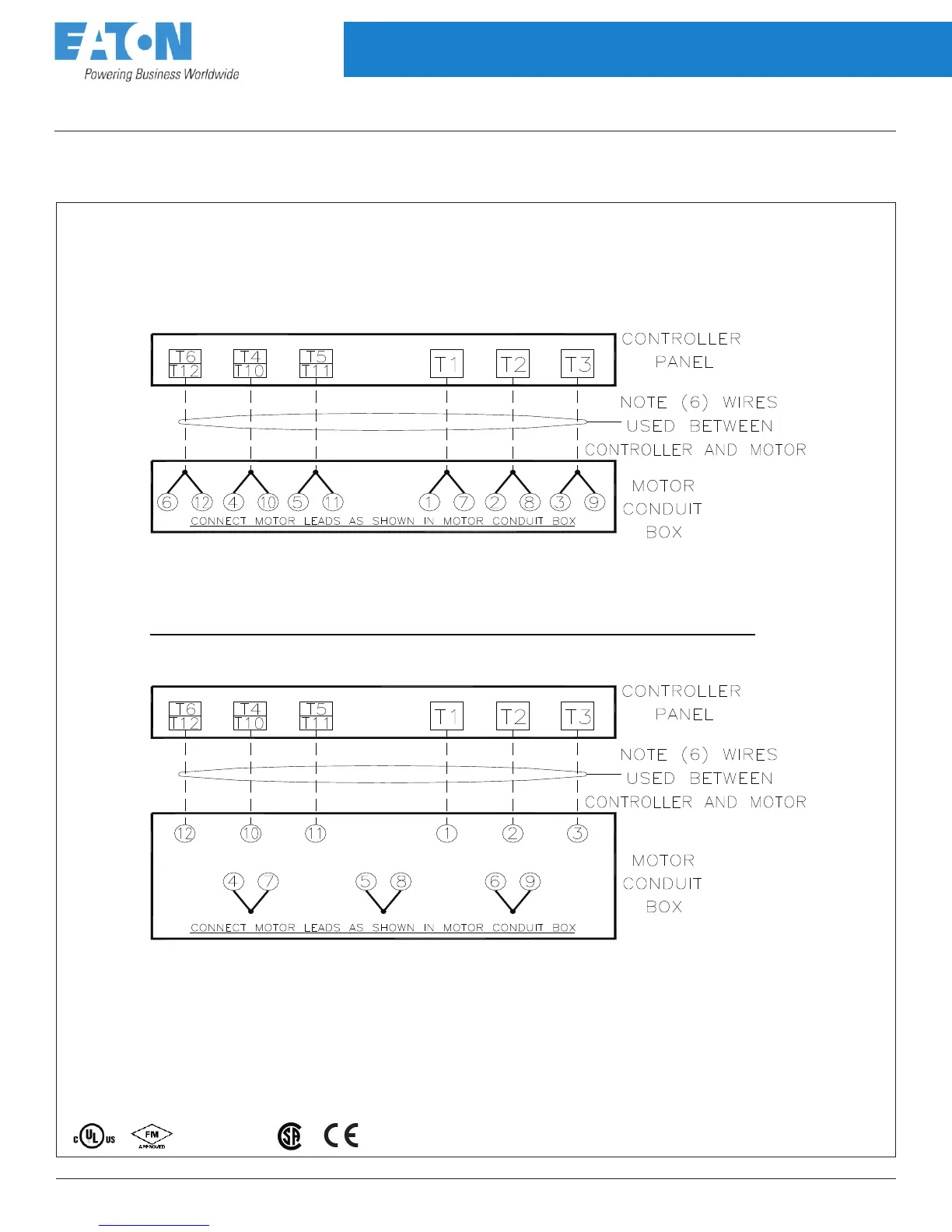

W ye-D elta Lower N am eplate Voltage
W ye-D elta H igher Nam eplate Voltage
NO T E:
NO T E:
LMR PLUS Electric Fire Pump Controllers
Electric Motor Connections
For more information visit: www.chfire.com
FD70 Wye Delta (Star-Delta) Open / FD80 Wye Delta (Star-Delta) Closed
FT70 Wye Delta (Star-Delta) Open / FT80 Wye Delta (Star-Delta) Closed
LMR
PLUS
PLUS
ES05805100K/B
Electric Motor Connections
March 2010
N. Y. C.
APPROVED
