Eaton LMR PLUS - Electrical Wiring Schematics; Power Transfer and Control Wiring Diagram; Customer Inputs and Alarm Contact Wiring; Internal Connection Wiring

For more information visit: www.chfire.com
FT80 Wye Delta (Star-Delta) Closed
LMR
PLUS
PLUS
ES05805109K/D

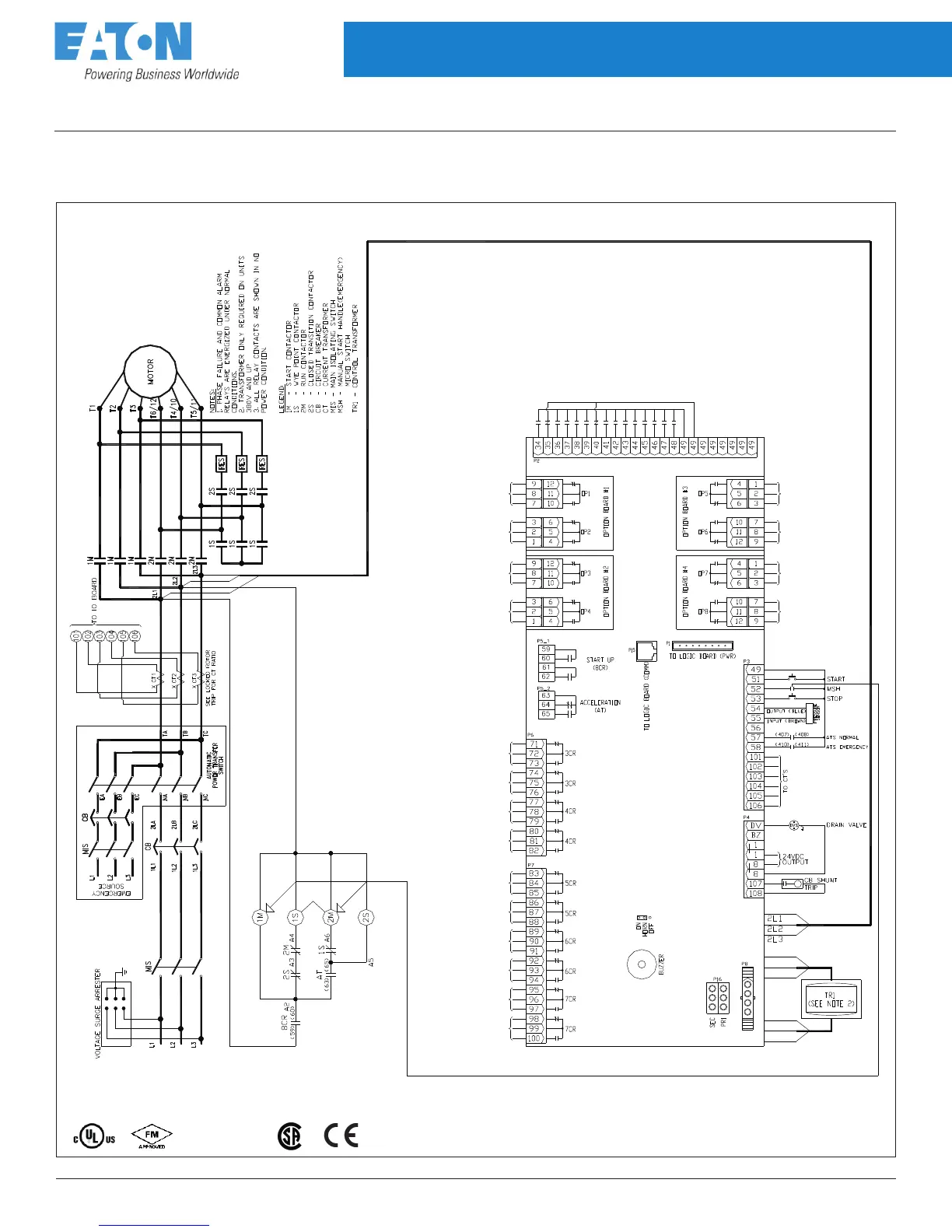

Electrical Wiring Schematic
LMR PLUS Electric Fire Pump Controllers with Transfer Switch
Electrical Wiring Schematic
May 2011
N. Y. C.
APPROVED
INPUT #2 LOW ROOM TEMPERATURE INTERLOCK ON DELUGE VALVE (REMOVE JUMPER IF USED) INPUT #5 INPUT #4 INPUT #3 INPUT #7 INPUT #6 INPUT #8 INPUT #9
COMMON ALARM
COMMON ALARM
PHASE FAILURE
(NORMALLY ENERGIZED)
PHASE FAILURE
PHASE REVERSAL
PHASE REVERSAL
FUTURE #1
FUTURE #1
PUMP RUN
PUMP RUN
(NORMALLY ENERGIZED)
(NORMALLY ENERGIZED)
(2 SETS FORM-C)
OPTION RELAY #2
(2 SETS FORM-C)
OPTION RELAY #4
(2 SETS FORM-C)
SOURCE 2 DISCONNECTED
(2 SETS FORM-C)
OPTION RELAY #7
OPTION RELAY #8
(2 SETS FORM-C)
(2 SETS FORM-C)
OPTION RELAY #6
(2 SETS FORM-C)
OPTION RELAY #5
(2 SETS FORM-C)
(NORMALLY ENERGIZED)
REMOTE START LOW SUCTION PUMP START
OPTION RELAY #3
SOURCE 2 DISC. (FROM ATS MIS) INPUT #2
ALARM CONTACTS
INTERNAL CONNECTIONS
CUSTOMER INPUTS
