Automatic Power Transfer Switch

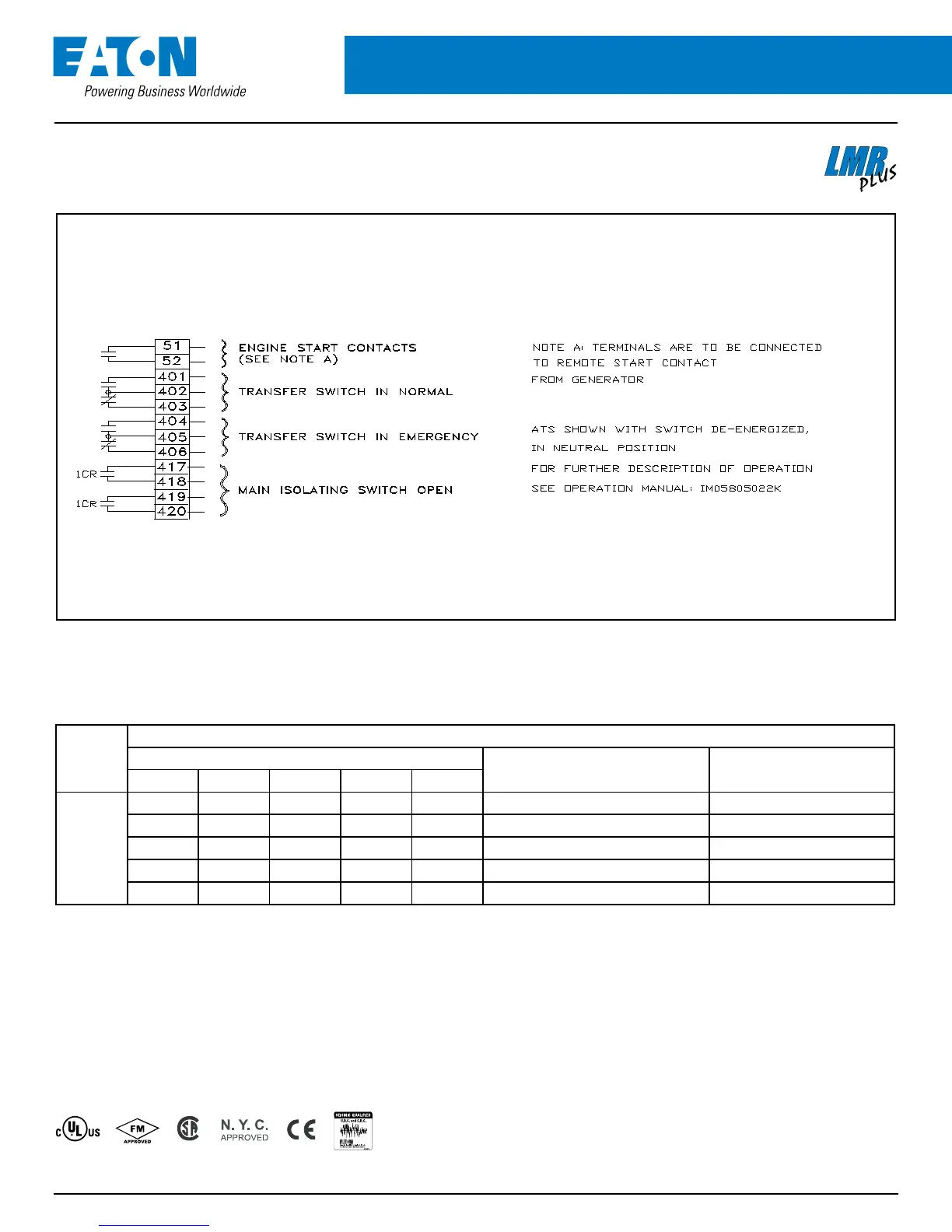

Electrical Wiring Schematic
For more information visit: www.chre.com
ES05805113K/E
June 2014
Automatic Power Transfer Switch
Electrical Wiring Schematic
Qty. & Cable Sizes
200 - 208 220 - 240 *380 - 415 440 - 480 550 - 600
Max HP 25 30 40 60 75 (1)#14-1/0 PER Ø (CU/AL) (1)#14-2/0 (CU/AL)
40 50 75 100 100 (1)#4-4/0 PER Ø (CU)
(1)#4-350MCM (CU/AL)
75 75 150 200 200
(1)#3-350MCM PER Ø (CU/AL) (1)#4-350MCM (CU/AL)
100 125 200 250 300
(2)3/0-250MCM PER Ø (CU/AL) (2)1/0-750MCM (CU/AL)
150 200 350 400 400
(2)250-350MCM PER Ø (CU/AL) (2)1/0-750MCM (CU/AL)
Line Terminals on Main Isolation Switch (Incoming Cables)
LINE VOLTAGE
Service Entrance GND. LUG
Qty. & Cable Sizes
Technical Data and Specications
Line Terminals (Incoming Cables)
