Eaton PowerXL DM1 Series - Step 1 - Ratings; Rating label

3
Instruction Leaet PUB53675
Effective December 2021
PowerXL DM1 and DM1 Pro series VFD
EATON www.eaton.com
Table 1. Approximate mounting dimensions in inches (mm).
Output rating Dimensions Weight
Input
voltage
Frame
size
Drive
catalog
number
CT/IH
current
amps
VT/IL
current
amps
D
in. (mm)
H1
in. (mm)
H2
in. (mm)
W1
in. (mm)
W2
in. (mm)
W3
in. (mm)
Ф
in. (mm)
lb (kg)
100 Vac to
120 Vac
50/60 Hz
1 phase
FR1 DM1-111D6… 1.6 2.5 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-113D0… 3 4.8 7.0 9 (18 0) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
FR2 DM1-114D8… 4.8 6.9 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-116D9… 6.9 7.8 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
200 Vac to
240 Vac
50/60 Hz
1 phase
FR1 DM1-121D6… 1.6 2.5 7.0 9 (18 0) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-123D0… 3 4.8 7.0 9 (18 0) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-124D8… 4.8 7.8 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
FR2 DM1-127D8… 7.8 11 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-12011… 11 17.5 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
FR3 DM1-12 0 17… 17.5 25.3 7.09 (180) 10.24 (260) 9.72 (247) 5.12 (130) 4.57 (116) 4.57 (116) 0.22 (5.5) 8.2 (3.7)
200 Vac to
240 Vac
50/60 Hz
3 phase
FR1 DM1-321D6… 1.6 2.5 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-323D0… 3 4.8 7.0 9 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-324D8… 4.8 7.8 7.0 9 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
DM1-327D8… 7.8 11 7.09 (180) 5.98 (152) 5.51 (140) 2.83 (72) 2.26 (57.5) 2.26 (57.5) 0.20 (5.2) 2.6 (1.2)
FR2 DM1-32011… 11 17.5 7.0 9 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
DM1-32017… 17.5 25.3 7.09 (180) 8.66 (220) 8.15 (207) 4.29 (109) 3.56 (90.5) 3.56 (90.5) 0.22 (5.5) 5.7 (2.6)
FR3 DM1-32025… 25.3 32.2 7.0 9 (18 0) 10.24 (260) 9.72 (247) 5.12 (130) 4.57 (116) 4.57 (116) 0.22 (5.5) 8.2 (3.7)
FR4 DM1-32032… 32.2 48.3 7.6 8 (195) 11.81 (300) 11.06 (281) 7.24 (184) 6.3 (160) 6.3 (160) 0.24 (6) 13.9 (6.3)
DM1-32048… 48.3 62.1 7.68 (19 5) 11.81 (300) 11.06 (281) 7.24 (184) 6.3 (160) 6.3 (160) 0.24 (6) 13.9 (6.3)
W2
H2
Ø
W1
H1
D
W3

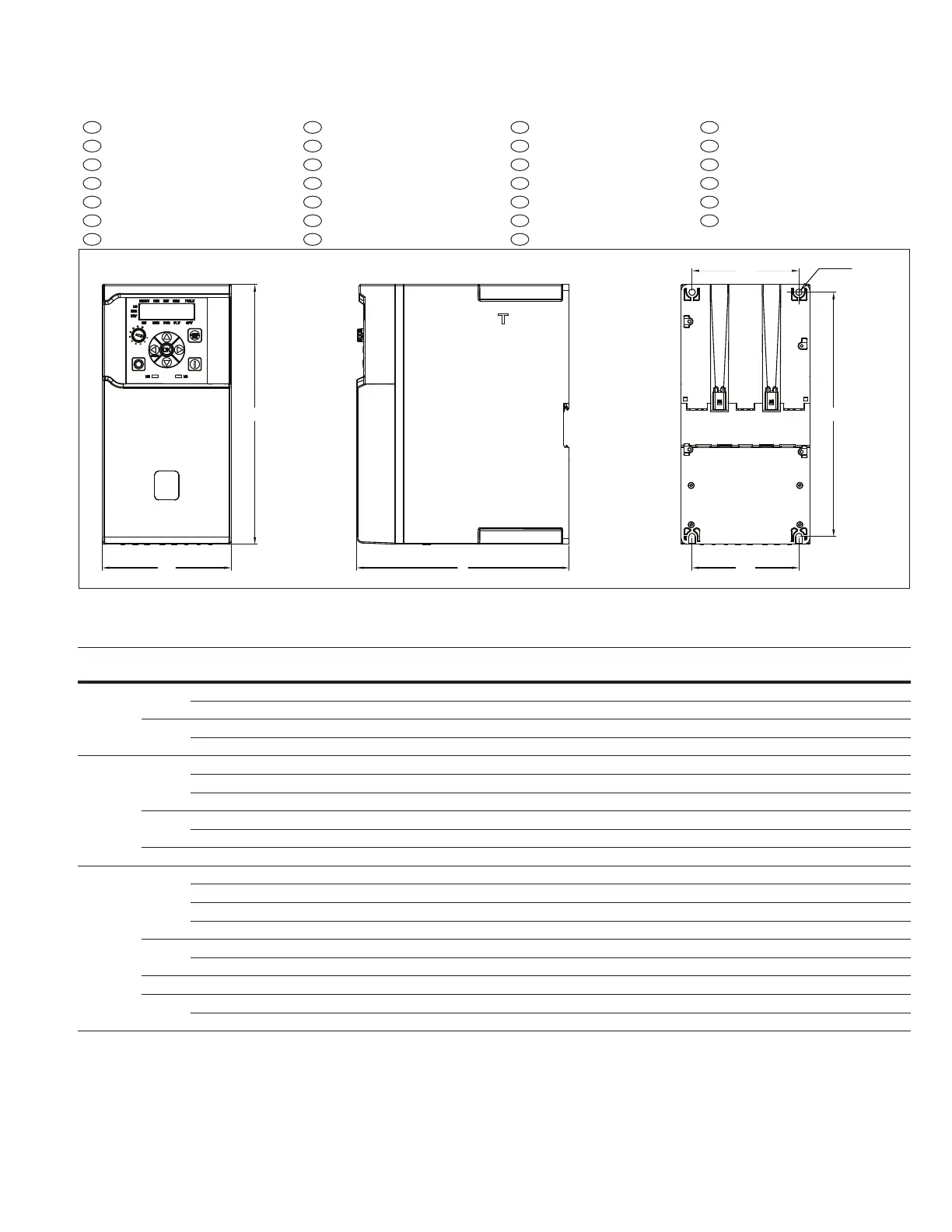

Dimensions and weights
