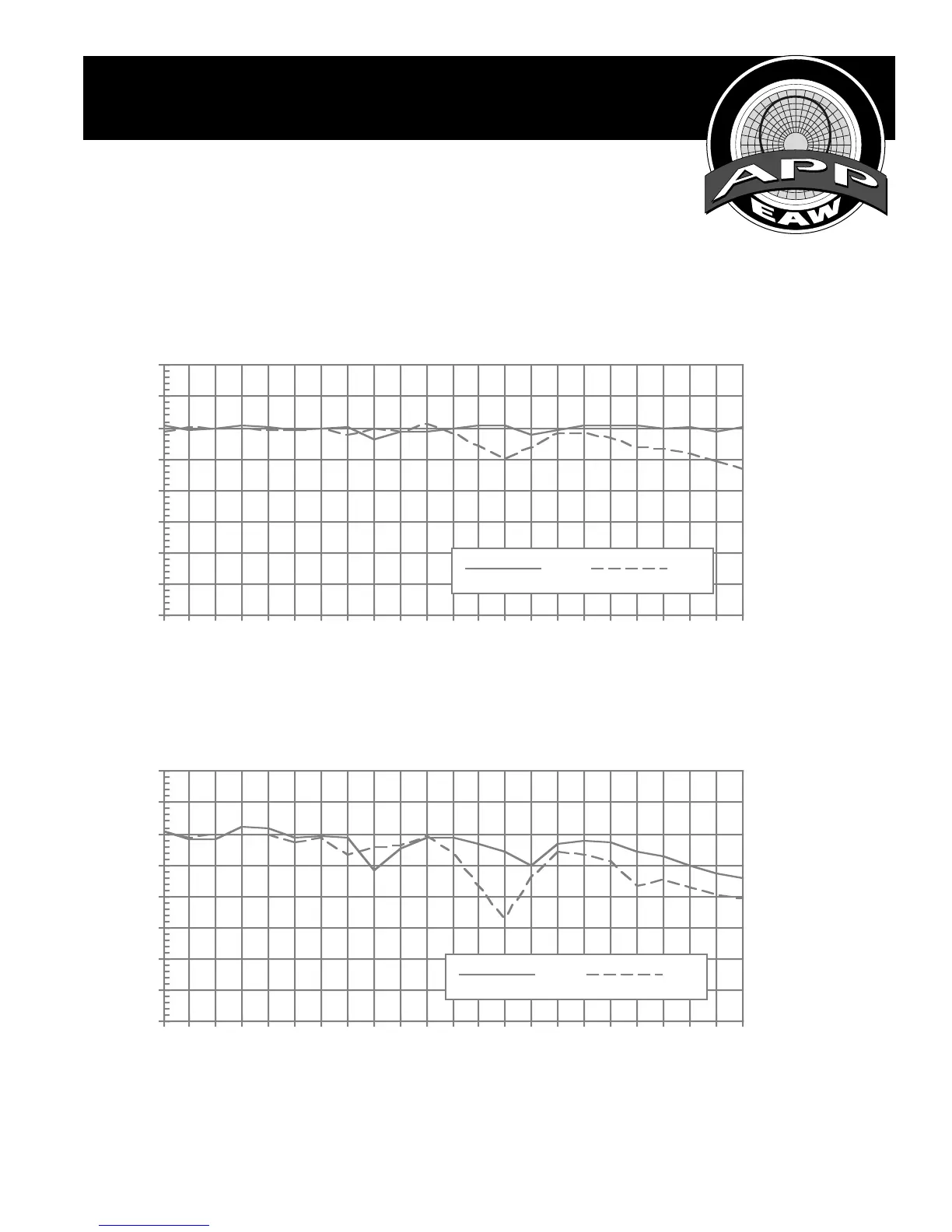

3.6 KF300 I P ERFORMANCE D ATA
3.6.2 OFF AXIS FREQUENCY RESPONSE
3.6.2.2 V
ERTICAL (N ORMALIZED T O A XIAL R ESPONSE )
KF 300i w/MX 300i-3
Frequency (Hz)
Attenuation in dB
-30
-25
-20
-15
-10
-5
0
5
10
100 125 160 200 250 315 400 500 630 800
1000 1250 1600 2000 2500 3150 4000 5000 6300 8000
10000 12500 16000
+10° -10°
KF 300i w/MX 300i-3
Frequency (Hz)
Attenuation in dB
-30
-25
-20
-15
-10
-5
0
5
10
100 125 160 200 250 315 400 500 630 800
1000 1250 1600 2000 2500 3150 4000 5000 6300 8000
10000 12500 16000
+20° -20°
