EBARA DML - Construction; Section Drawing: Typical Model

- 16 -
EBARA
Corporation
9
Construction

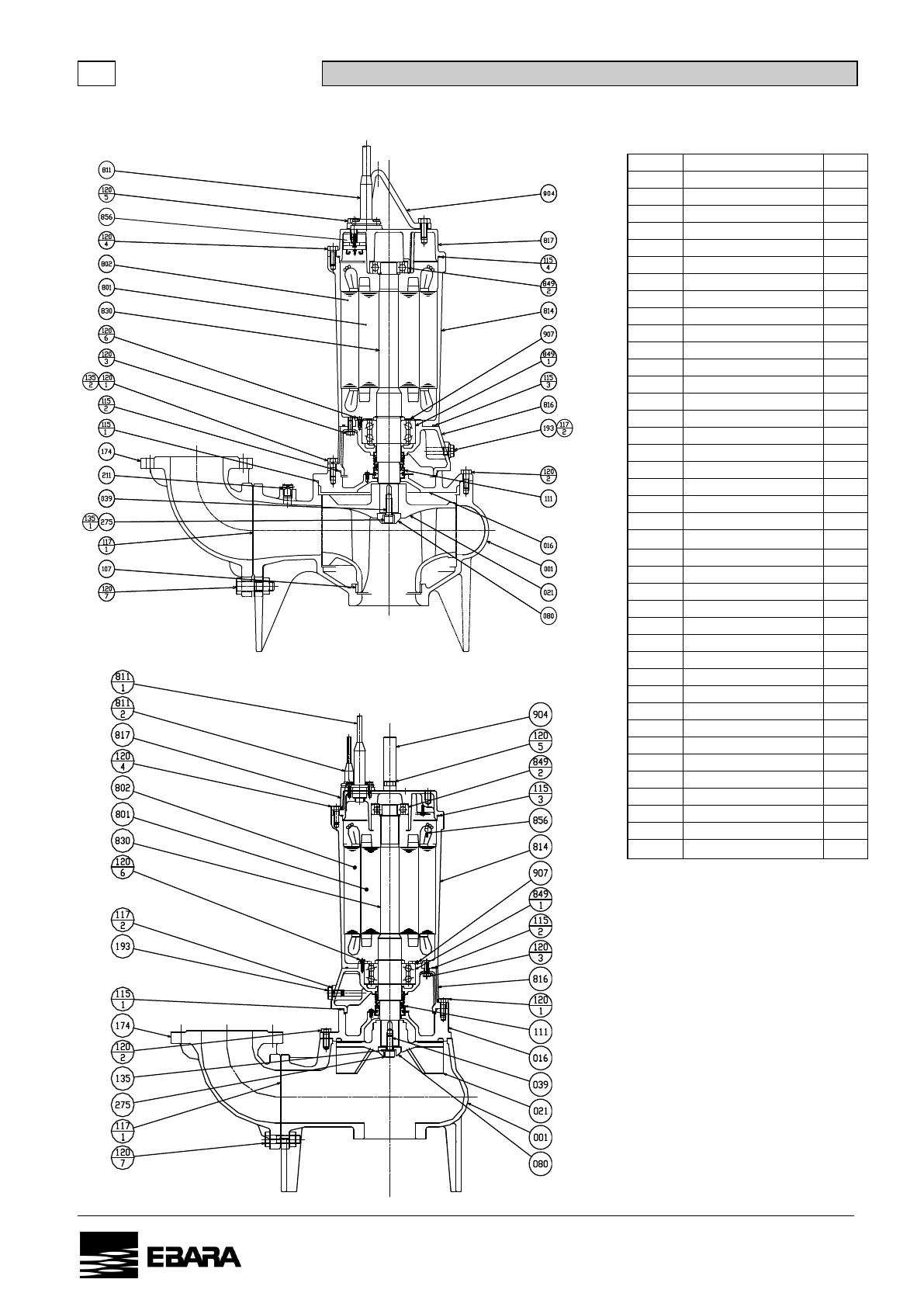

1. Section drawing : Typical model
907
BEARING COVER
1
904
LIFTING HANGER
1
856
THERMAL PROTECTOR
2※3
849-2
BALL BEARING
1
849-1
BALL BEARING
1
830
SHAFT
1
817
OPPOSITE SIDE BRACKET
1
816
POWER SIDE BRACKET
1
814
MOTOR FRAME
1
811-2
SUBMERSIBLE CABLE
1※2
811-1
SUBMERSIBLE CABLE
2※1
802
STATOR
1
801
ROTOR
1
275
IMPELLER BOLT
1
211
AIR VENT VALVE
1
193
OIL PLUG
1
174
DISCHARGE PIPE
1
135
WASHER
1
135-2
WASHER
4
135-1
WASHER
1
120-7
BOLT
4
120-6
BOLT
3
120-5
BOLT
2
120-4
BOLT
4or6
120-3
BOLT
4
120-2
BOLT
8
120-1
BOLT
4
117-2
SEAL WASHER
1
117-1
FLANGE GASKET
1
115-4
O-RING
1
115-3
O-RING
1
115-2
O-RING
1
115-1
O-RING
1
111
MECHANICAL SEAL
1
107
WEARING RING
1
080
BUSHING
1
039
KEY
1
021
IMPELLER
1
016
MECHANICAL SEAL COVER
1
001
CASING
1
No.
NAME
QUANT
※1 2.2 kw : 1
※2 2.2 kw : 0
※3 2.2 kw : AUTO-CUT : 1
100 DML 57.5
100 DMLV55.5
