P.21
PM10U
EBARA
CORPORATION
4.3.2 Power Supply Wiring
CAUTION Use the correct wiring materials and size to match the
operating conditions in accordance with the power
consumption rating and ambient air temperature of the pump.
CAUTION Be sure to connect the grounding wire.
CAUTION Wiring should be hard-wired or using twist-lock Hubbel type
connector at power source side.
Wire the connector for the main power supply (3-phase, 200-220V and 50Hz/60Hz).
Fig. 4.4 and Tables 4.2 and 4.3 show the connector pin assignment.
Table 4.2 Pin Assignment
of Power Supply Receptacle
Ｄ A
Ｃ Ｂ
No.
S
C
T
D
GND

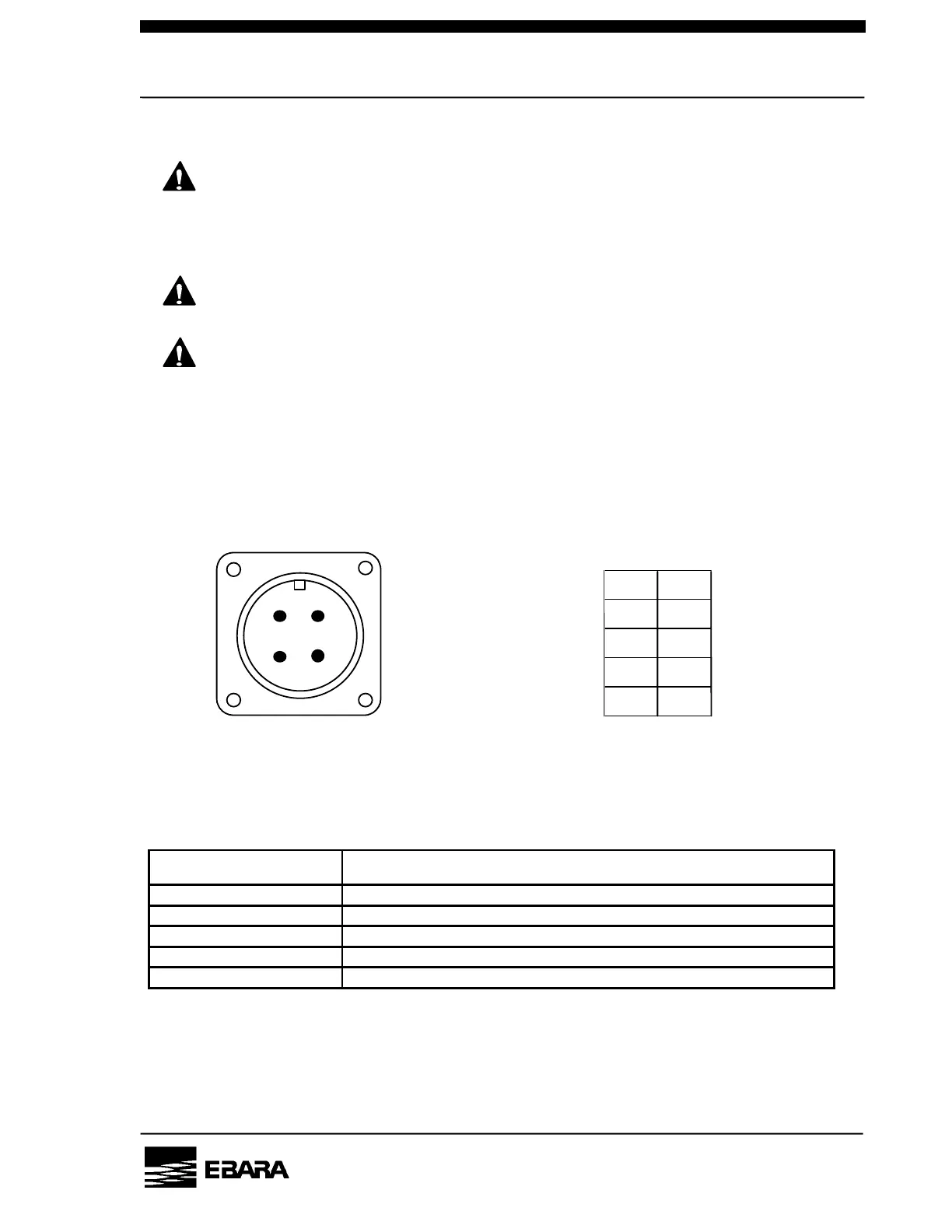

Fig. 4.4 Power Supply Receptacle
(As seen from outside,just unplugged)
Table 4.3 Receptacle Specification
Pump model Model ESA200W
Receptacle type JL04HV-2E22-22PE-B
Recep. Manufacturer Japan Aviation Electronics Industry Co., Ltd.
Adapted plug type JL04V-6A22-22SE-EB
Suitable wire AWG #8 (UL1283)
Power capacity kVA 12.0
To Next Page
