6. LCD Controller
6.1 LCD Outline
[Buttons] START For start Main pump(MP) and Booster pump(BP)
STOP For stop MP and BP
▲ ▼ For changing LCD indication
RESET For resetting WARNING and ALARM
BZ. OFF For "buzzer mute in WARNING / ALARM "
PRG. For changing screen of pump status
and change hierarchy of screen
ENTER For using at DIP switch selection
And change hierarchy of screen
[LED] B.P. RUN BP running
M.P. RUN MP running
LOCAL LOCAL mode
WARNING WARNING condition
ALARM ALARM condition

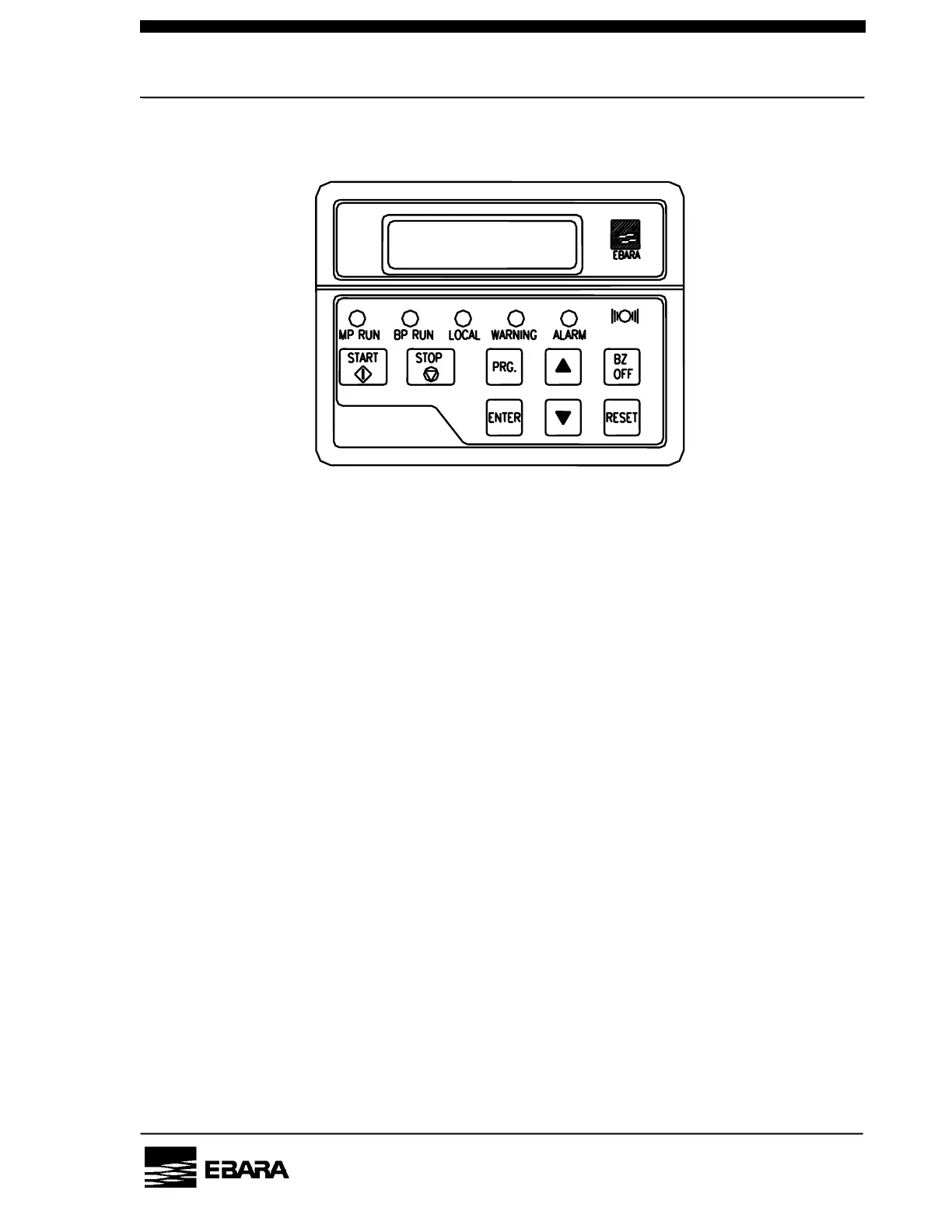

Fig. 6.1 LCD controller
