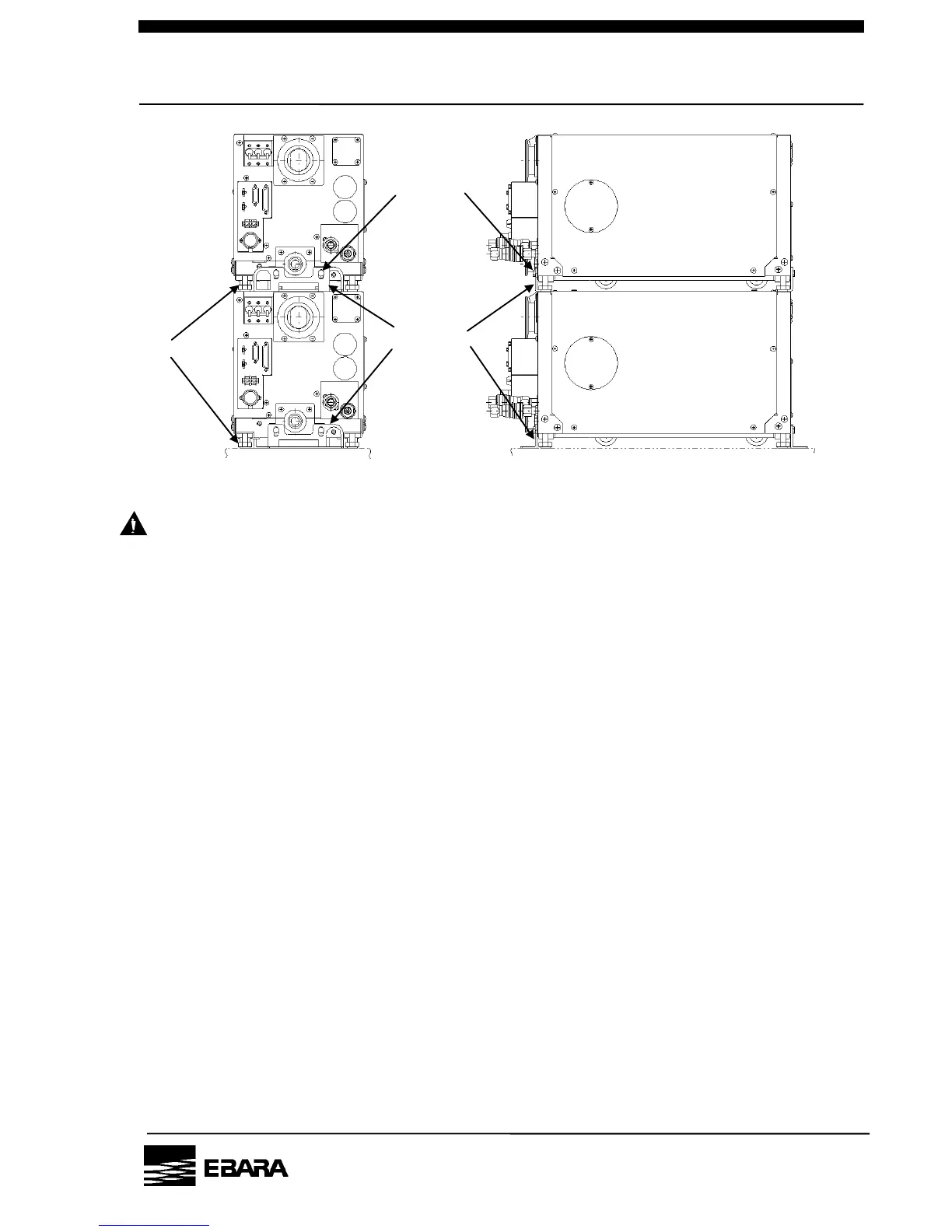

Fig. 4.2 How to stack pumps
WARNING In MODEL EV-S20 type pump, the bolt which is fixing the fixing
bracket to a pump is M6✕16. This fixing bracket can use as lifting
bracket.
When you use this bracket as lifting bracket, you use M6✕12 bolts
for fixing this bracket to the upper side of the pump. In this case,
you cannot use the M6✕16 bolts, because the M6✕16 bolts reach
to an internal part and have a possibility to break it.
・Using this bracket as a fixing bracket, please use the bolt of
M6✕16(hexagon head bolts).
・Using this bracket as a lifting bracket, please use the bolt of
M6✕12(hexagon head bolts).
Fixing bolts
