Eberspächer Easystart Remote + - Connection Diagram for Airtronic Heaters

20 | VEHICLE HEATERS – TECHNICAL DOCUMENTATION

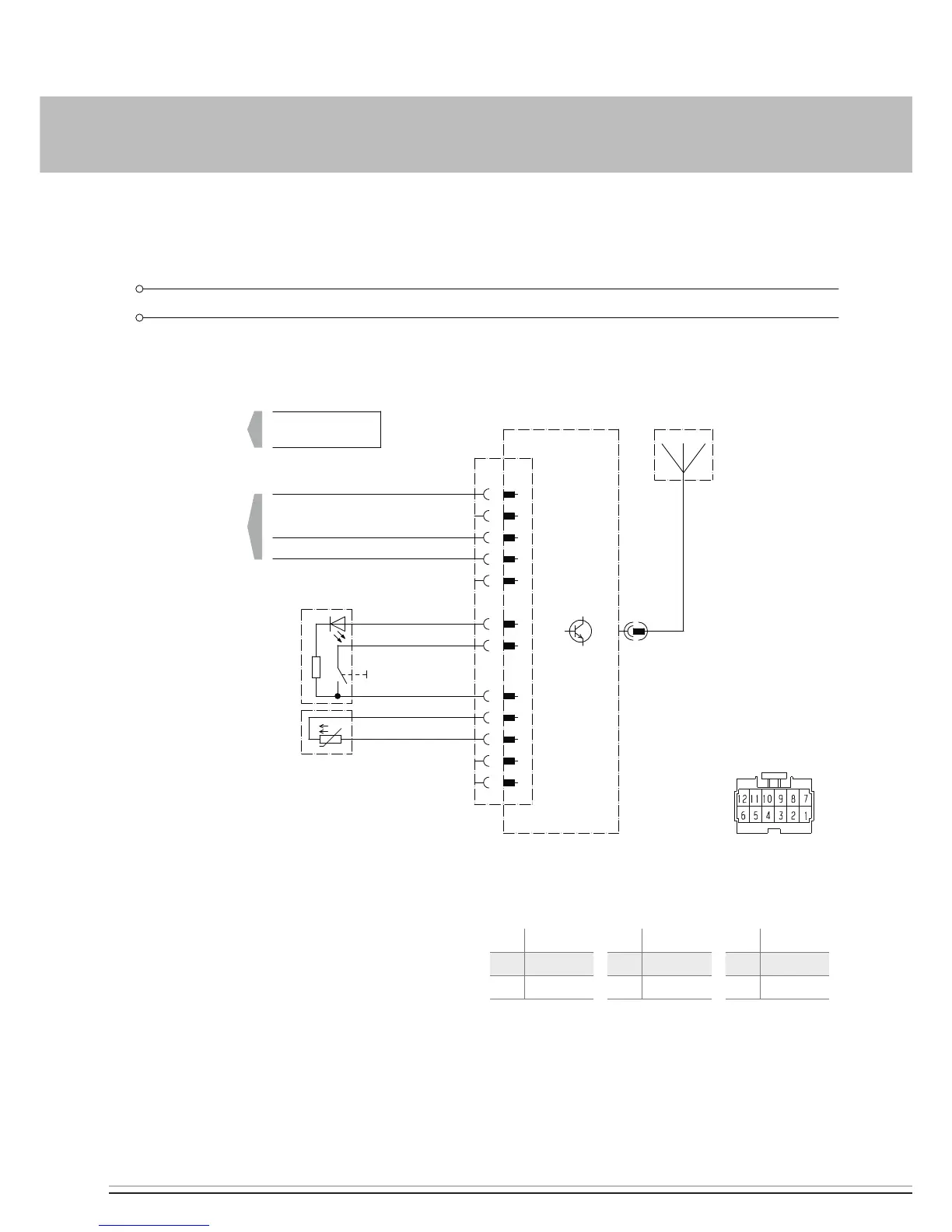

CIRCUIT DIAGRAM
EasyStart Remote+ connection to Airtronic, Airtronic M, Airtronic L
g
0,5 BNWH
0,5 GYRD
c
y
X:58
Light (+)
X:15
Ign (+)
-E5
1
-XB12
2
12
3
4
5
6
7
8
9
10
11
-H2
0,5 RD
0,22 RDYE
0,5 BUWH
0,22 BNWH
0,22 GY
0,22 BNYE
-W2
0,5 BN
Θ
-B8
0,22 BN
-XB12
22 1000 34 97 29
-B8 Room temperature sensor
-E5 EasyStart Remote
+
radio remote control
-H2 Button
-W2 Antenna
c to the heater
g to the heater
y Connect cables and insulate
CABLE COLOURS
RD red GY grey BK black
BU blue YE yellow GN green
WH white VT violet BN brown
5 CIRCUIT DIAGRAM
