VEHICLE HEATERS – TECHNICAL DOCUMENTATION | 9
Connector housing pin assignment
Pin Signal Cable colour Pin Signal Cable colour
1 Terminal 30 red 7 Button (+) brown / yellow
2
–
– 8 Button (–) brown
3 Terminal 31 brown 9 Temp (–) brown / white
4 Diagnosis blue / white 10 Temp (+) grey
5 DAT vi 11 S (+) ge
6 Button LED red / yellow 12 – –
Connector housing chamber assignment -XB12 (assignment seen from the cable inlet side) from page 19

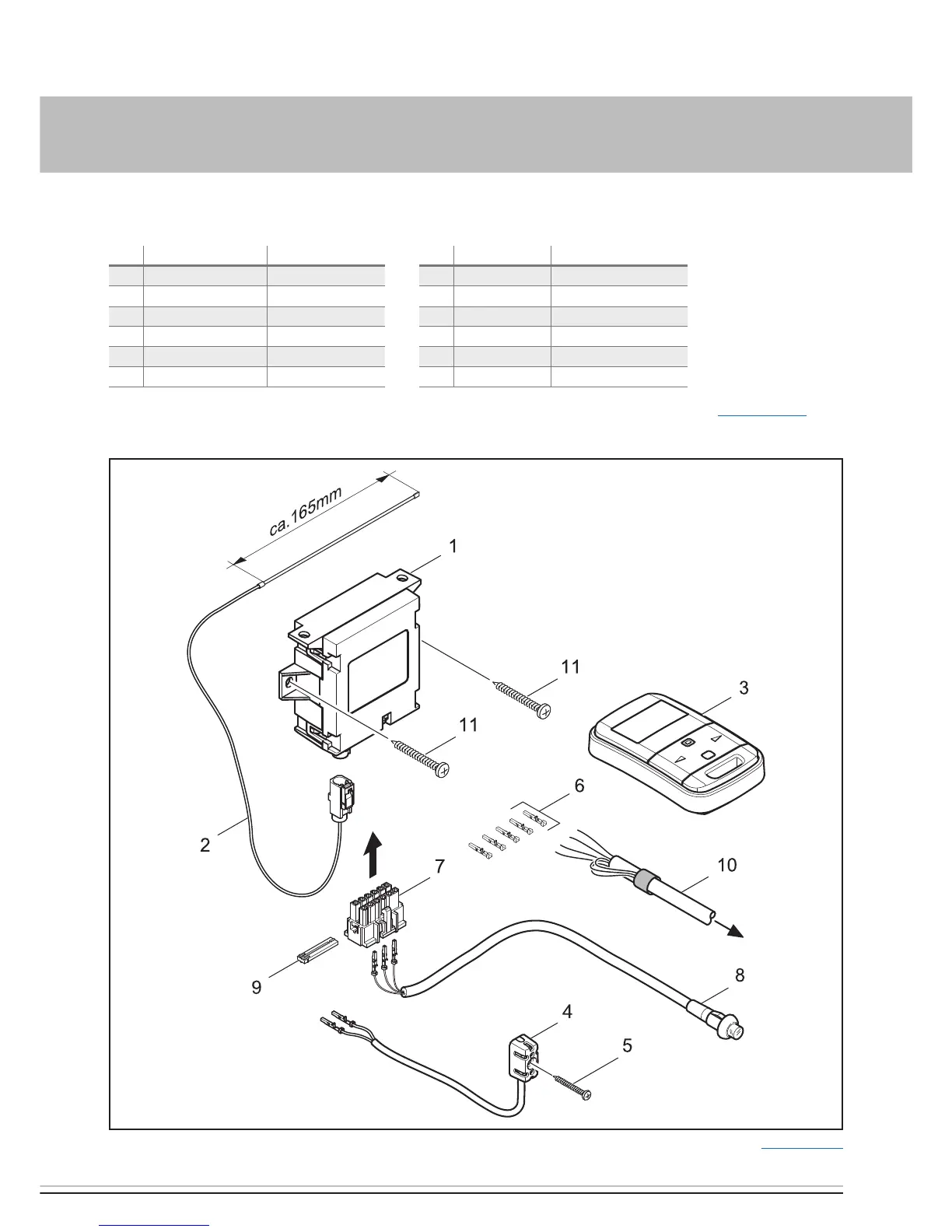

SKETCH OF EASYSTART REMOTE
+
INSTALLATION
Key see page 10
2 INSTALLATION
