March 2013 22 IPV58
1.9 ActiveX Mode (For Internet Explorer Browser)

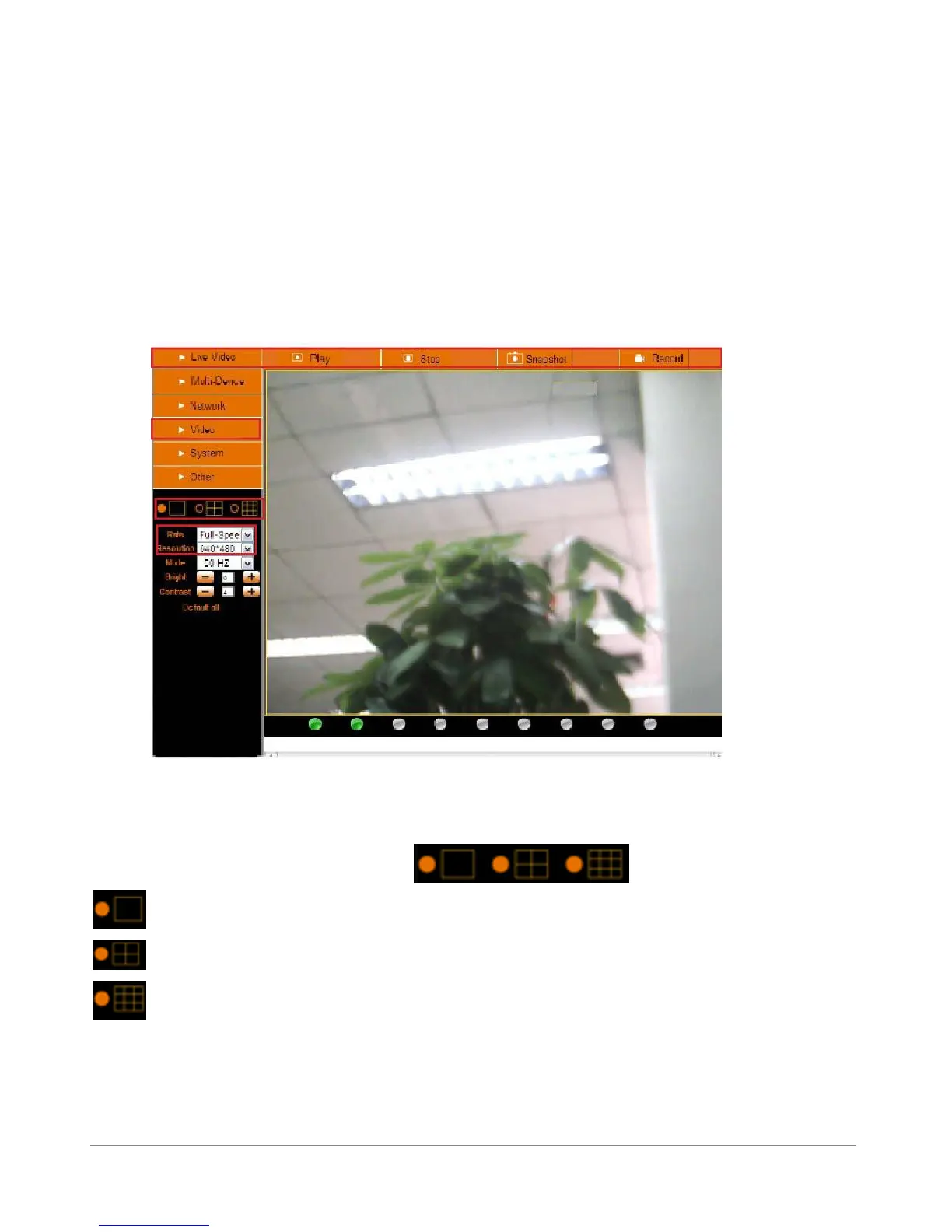

Login to the camera in ActiveX mode, the main User Interface is as below:
NOTE: There are 3 levels of users, Visitor, Operator, Administrator, if you login with different users, the
use authority is different. (See 3.11 User Settings, Figure 8.5).
1.9.1 For Visitor
When you login as Visitor, you can enter the IP Camera for visitor.
Visitor is the lowest level with only some operation available.
Figure 3.5
Channels:
The IE software supports 9 channels. Click to get different windows.
Click this one to view the main channel of the camera you login to.
Click this one to view 4 Channels of cameras that are connected, from CH1 to CH4.
Click this one to view 9 Channels of cameras that are connected, from CH1 to CH9.
NOTE: If you want to view 4/9 channels, you should set the Multi-Device first (See 3.1
Multi-Device Settings).
