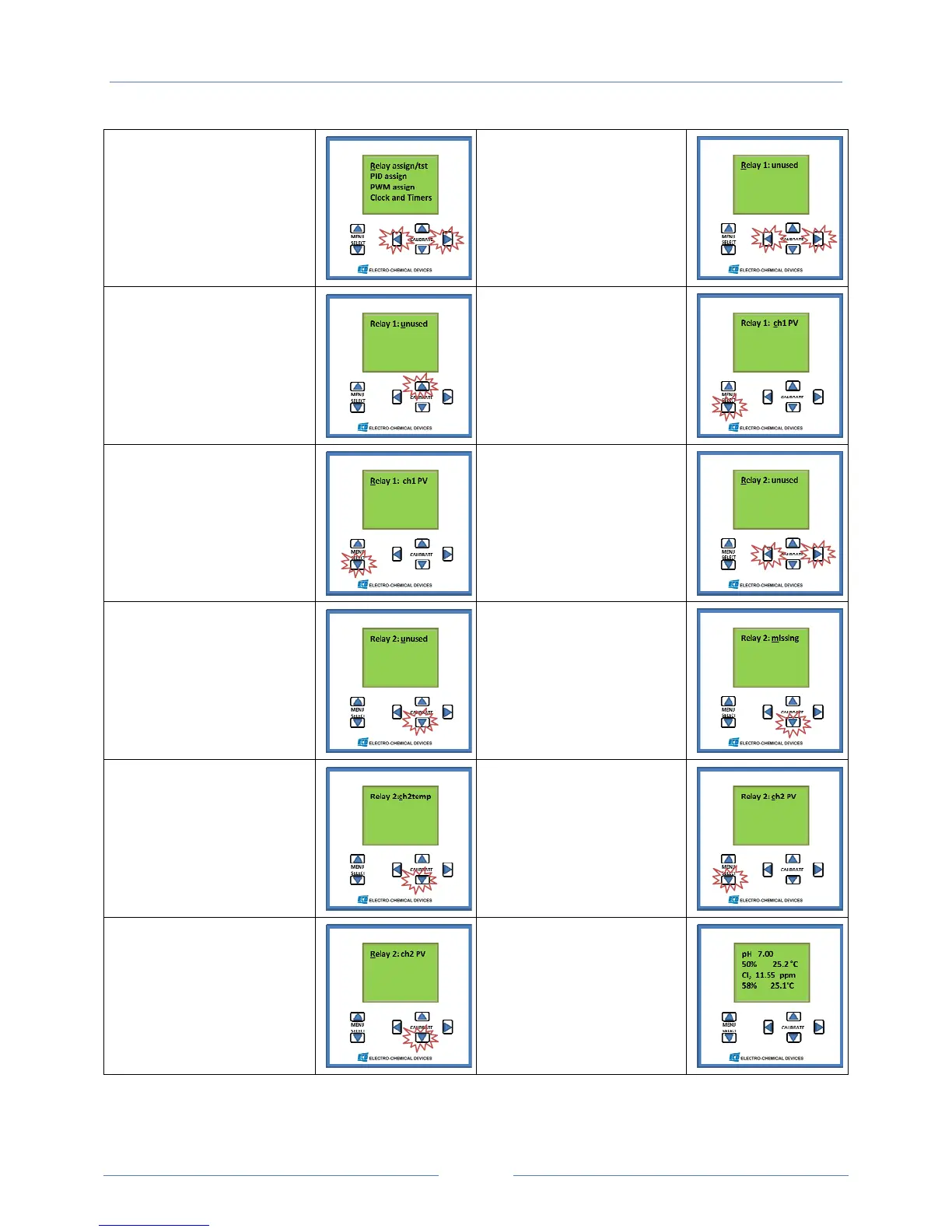

#11RelayAssignment/Test
Toassignfunctionstothe
relayssimultaneouslypress
bothhorizontalCALIBRATE
keys

#12AccessRelay1menu
Toaccessthemenu
Simultaneouslypressboth
HorizontalCALIBRATEkeys

#13AssignRelay1to
Chlorine
PresstheUpCALIBRATEkey
toaccessPV1,
PV1=Chlorine

#14AcceptPV1
Toacceptthechange
pressMenuSelect
downbutton

#15SelectRelay2
PressMenuSelect
Downbutton

#16AccessRelay2menu
Toaccessthemenu
Simultaneouslypressboth
HorizontalCALIBRATEkeys

#17AssignRelay2
PressthedownCALIBRATE
keytoaccessPV2,PV2=pH
PresstheupCALIBRATEkey
toaccessPV1,
PV1=Chlorine
#18AssignRelay2
(Missing)
PressthedownCALIBRATE
key

#19AssignRelay2
(ch2temperature)
PressthedownCALIBRATE
key

#20Choose“ch2PV”
PressMenuSelect
Downbutton

#21ReturntoHome
Screen
PressthedownCALIBRATE
key

HomeScreen


