12
control functIon

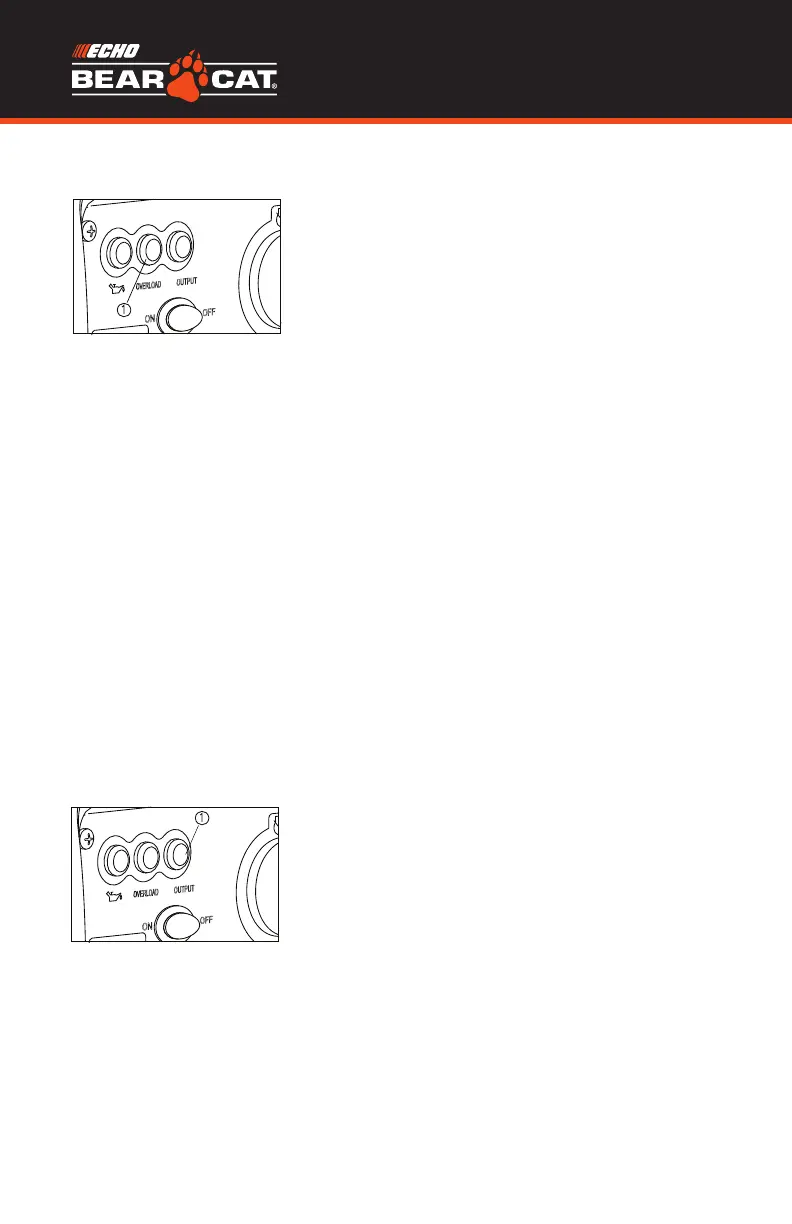

OVERLOAD INDICATOR LIGHT (RED)
AC PILOT LIGHT (GREEN)
The overload indicator light comes on when
an overload of a connected electrical device
is detected, the inverter control unit overheats,
or the AC output voltage rises. Then, the AC
protector will trip, stopping power generation
in order to protect the generator and any
connected electric devices. The AC pilot light
(Green) will go off and the overload indicator
light (Red) will stay on, but the engine will not
stop running. When the overload indicator
light comes on and power generation stops,
proceed as follows:
1. Turn off any connected electric devices
and stop the engine.
2. Reduce the total wattage of connected
electric devices within the rated output.
3. Check for blockages in the cooling air
Inlet and around the control unit. If any
blockages are found remove.
4. After checking, restart the engine.
TIP: The overload indicator light may come on
for a few seconds at first when using electric
devices that require a large starting current,
such as a compressor or a submergible pump.
However, this is not a malfunction.
The AC pilot light comes on when the engine
starts and produces power.
1312
Inverter Generator Owner's ManualInverter Generator Owner's Manual
Control Function Control Function
Overload indicator light (Red)
The overload indicator light comes on
when an overload of a connected
electrical device is detected, the
inverter control unit overheats, or the
AC output voltage rises. Then, the AC
protector will trip, stopping power
generation in order to protect the
generator and any connected electric
devices. The AC pilot light (Green)
will go off and the overload indicator
light (Red) will stay on, but the engine
will not stop running.
When the overload indicator light
comes on and power generation
stops, proceed as follows:
1. Turn off any connected electric
devices and stop the engine.
2. Reduce the total wattage of
connected electric devices within the
rated output.
3. Check for blockages in the cooling
air Inlet and around the control unit. If
any blockages are found remove.
4. After checking, restart the engine.
①
TIP：The overload indicator light may
come on for a few seconds at first
when using electric devices that
require a large starting current,
such as a compressor or a
submergible pump. However, this
is not a malfunction.
The AC pilot light comes on when the
engine starts and produces power.
①
AC pilot light (Green)
DC protector
“ON” Direct current is output.
“OFF” Direct current is not output.
The DC protector turns to “OFF”
automatically when electric device being
connected to the generator is operating
and current above the rated flows. To use
this equipment again, turn on DC
protector by pressing its button to “ON” .①
NOTICE
Reduce the load of the
connected electric device
below the specified rated
output of the generator if
the DC protector turns off.
If the DC protector turns off
again, stop using the
device immediately and
consult a .franchised dealer
1312
Inverter Generator Owner's ManualInverter Generator Owner's Manual
Control Function Control Function
Overload indicator light (Red)
The overload indicator light comes on
when an overload of a connected
electrical device is detected, the
inverter control unit overheats, or the
AC output voltage rises. Then, the AC
protector will trip, stopping power
generation in order to protect the
generator and any connected electric
devices. The AC pilot light (Green)
will go off and the overload indicator
light (Red) will stay on, but the engine
will not stop running.
When the overload indicator light
comes on and power generation
stops, proceed as follows:
1. Turn off any connected electric
devices and stop the engine.
2. Reduce the total wattage of
connected electric devices within the
rated output.
3. Check for blockages in the cooling
air Inlet and around the control unit. If
any blockages are found remove.
4. After checking, restart the engine.
①
TIP：The overload indicator light may
come on for a few seconds at first
when using electric devices that
require a large starting current,
such as a compressor or a
submergible pump. However, this
is not a malfunction.
The AC pilot light comes on when the
engine starts and produces power.
①
AC pilot light (Green)
DC protector
“ON” Direct current is output.
“OFF” Direct current is not output.
The DC protector turns to “OFF”
automatically when electric device being
connected to the generator is operating
and current above the rated flows. To use
this equipment again, turn on DC
protector by pressing its button to “ON” .①
NOTICE
Reduce the load of the
connected electric device
below the specified rated
output of the generator if
the DC protector turns off.
If the DC protector turns off
again, stop using the
device immediately and
consult a .franchised dealer
