Echo BEAR CAT EGI-2000 User Manual

40
Inverter Generator Owner's Manual

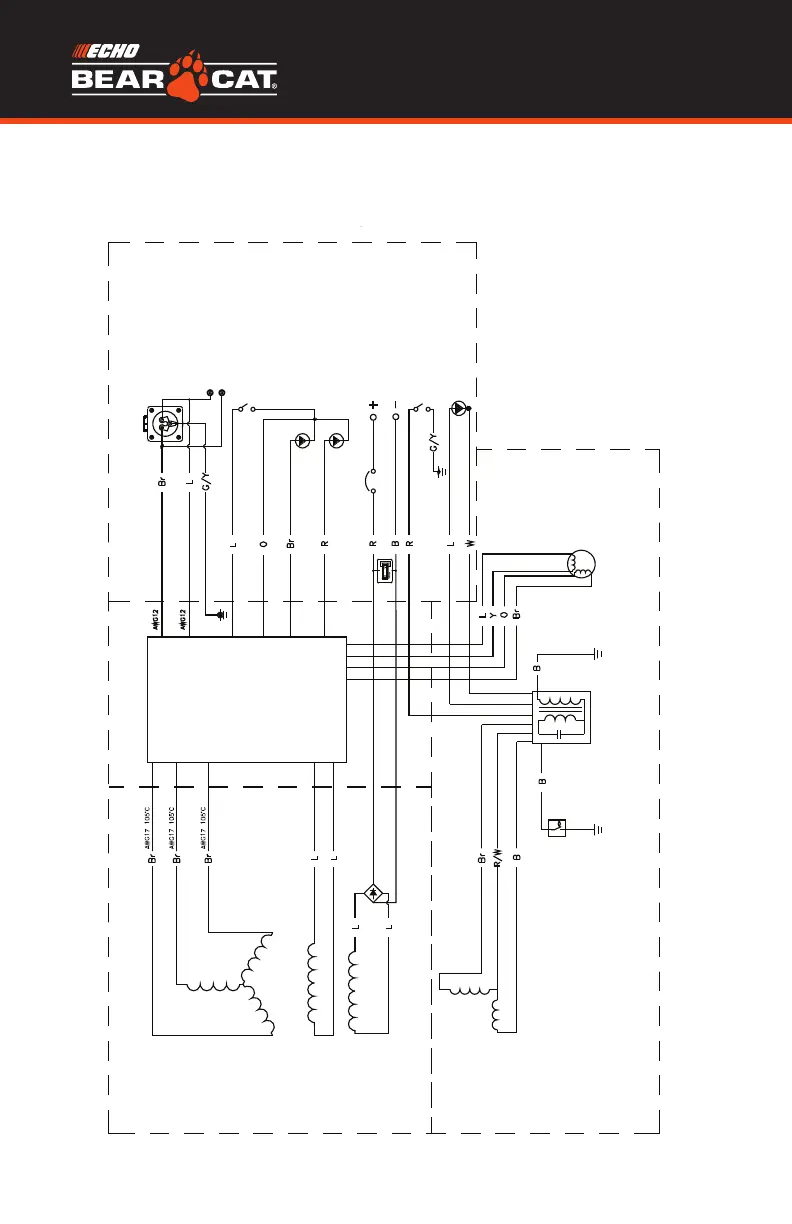

Electrical Schematic Diagram
42
50Hz / 60Hz, 100V With Parallel Receptacle 50Hz, 110V With Parallel Receptacle
Inverter Generator Owner's Manual
Electrical Schematic Diagram
circuit breaker 10A
KBPC2510
rectifier
lgnition coil
charging
oil sensor
ignition spark plug
stepper motor speed
DC receptacle
inverter
flameout switch
DC-spoel
Subspoel
Hoofdspoel
GENERATOR BLOCK
ENGINE BLOCK
CONTROL PANEL BLOKC
INVERTER BLOCK
B
Br
G
L
O
R
W
Y
B
/
W
G
/
Y
R
/
W
Black
Brown
Green
Blue
Orange
Red
White
Yellow
Black
/
White
Green
/
Yellow
Red
/
White
ESC switch
oil warning indicator light
overload indicator light
AC pilot light
FS switch
parallel
receptacle
AC receptacle
43
KBPC2510
circuit breaker 10A
rectifier
lgnition coil
charging
oil sensor
ignition
spark plug
stepper motor speed
DC receptacle
inverter
parallel
receptacle
flameout switch
DC-spoel
Subspoel
Hoofdspoel
GENERATOR BLOCK
ENGINE BLOCK
CONTROL PANEL BLOKC
INVERTER BLOCK
AC receptacle
ESC switch
oil warning indicator light
overload indicator light
AC pilot light
B
Br
G
L
O
R
W
Y
B
/
W
G
/
Y
R
/
W
Black
Brown
Green
Blue
Orange
Red
White
Yellow
Black
/
White
Green
/
Yellow
Red
/
White
time-meter
• 50Hz, 110V With Parallel Receptacle
wIrInG dIaGram

Echo BEAR CAT EGI-2000 Specifications

General

Brand	Echo
Model	BEAR CAT EGI-2000
Category	Portable Generator
Language	English
