Preparation For Use
Saw chain is sharp! Always wear gloves when handling
assembly, otherwise serious personal injury may result.
Note: The machine may be delivered with guide bar, tip guard, and
saw chain separated. Install guide bar, tip guard, and saw
chain as follows.
Momentary STOP Switch automatically returns to RUN position.
Engine can start unintentionally. Always remove spark plug
lead from spark plug before assembling or performing
maintenance procedures. Serious personal injury can result.
Instructions to Install Optional Kick Guard
TM
to Bar
Tools Needed: Two 11 mm (7/16 in.)
Wrenches.

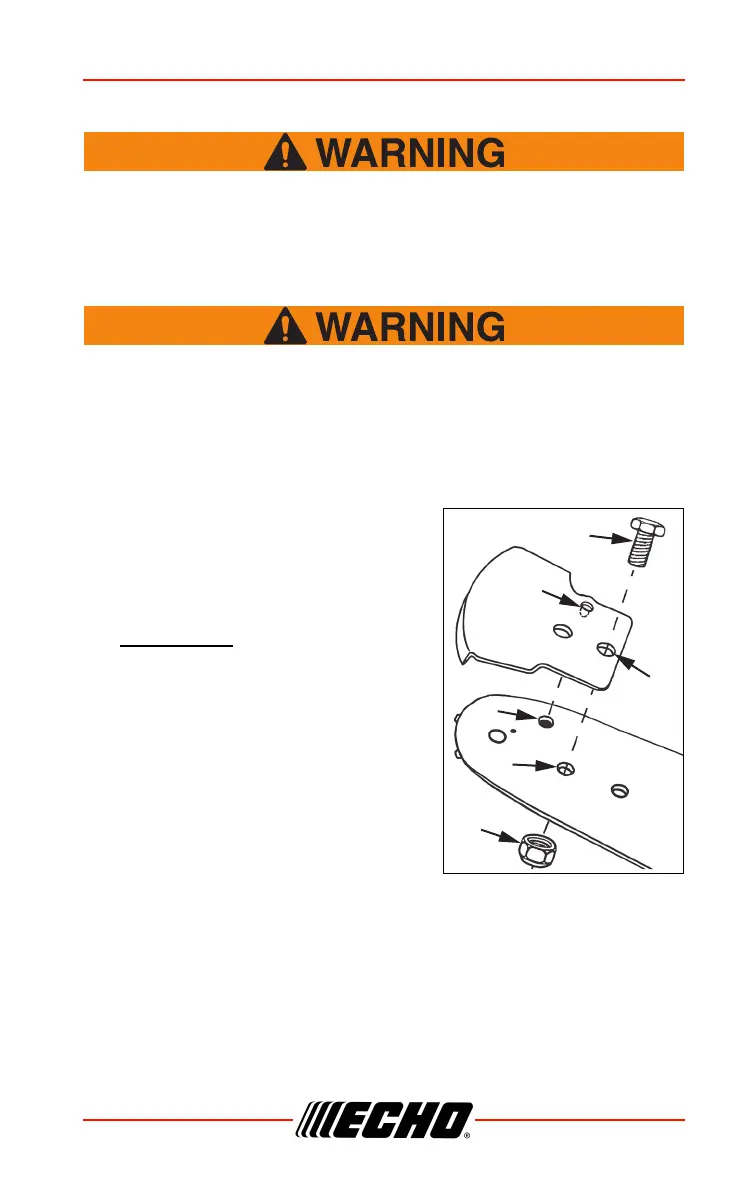

1. Install bolt (A) in rear hole (B) of tip
guard and through front hole (C) in
guide bar.
2. IMPORTANT:
Dimple (D) in tip guard
must engage recess (E) in guide bar.
3. Securely tighten nut (F) and bolt (A).
