Description
Description

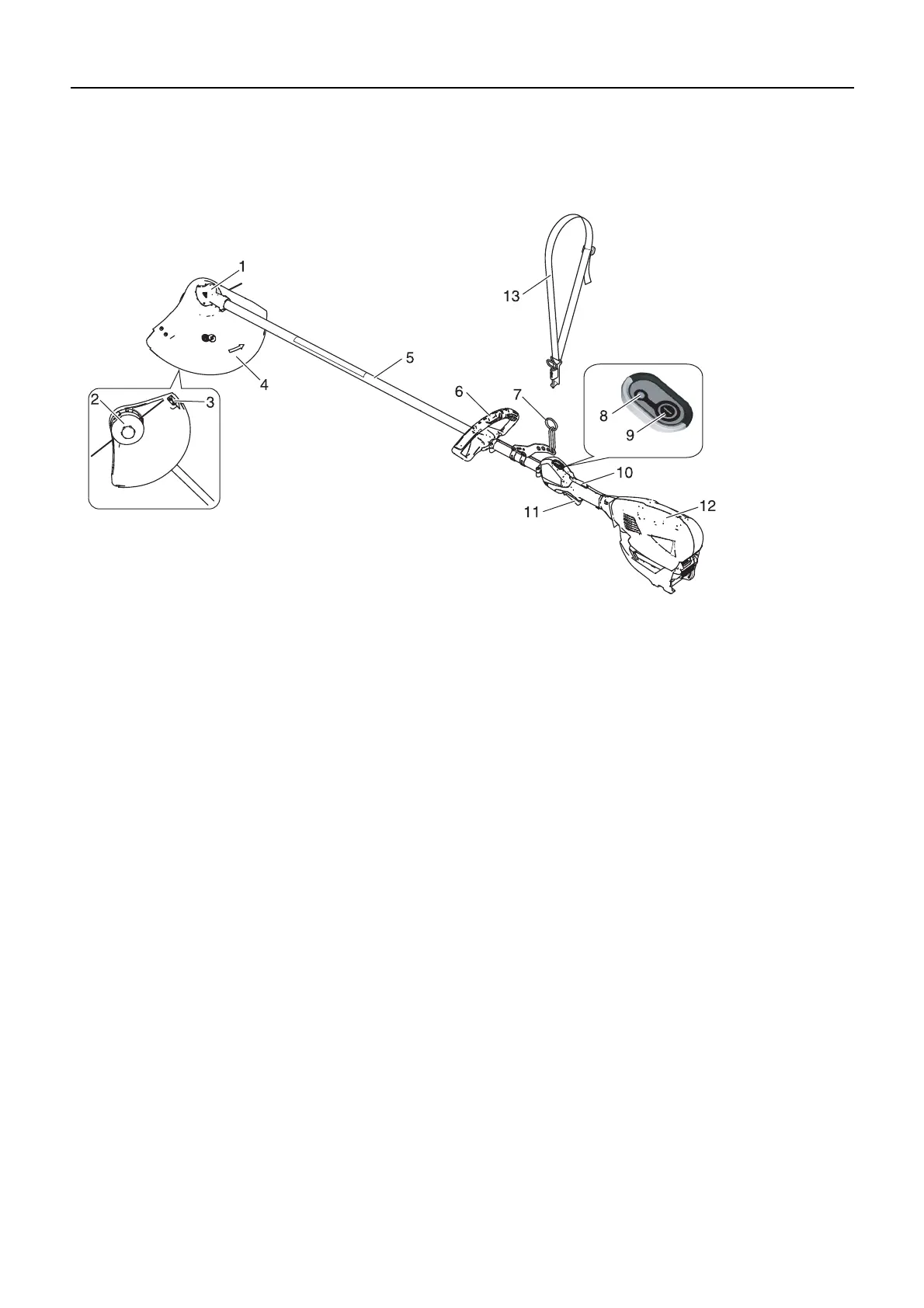

1. Angle transmission - Having two gears to change the
angle of rotating axis.
2. Cutting attachment - Nylon line cutting head for cutting
grass and weed.
3. Cut off knife - Cut nylon line to adjust line length to
proper swath.
4. Shield - Device to protect the operator from accidental
contact with the cutting head and thrown objects.
5. Shaft tube - Part of the unit that provides a casing for
power transmission shaft.
6. Loop-handle - Grip for Left Hand.
7. Suspension point - Device on which the harness can
be hooked.
8. Power indicator LED - Remains illuminated when pow-
er to unit is turned on. Turns off when power to unit is off.
9. Power button - Press once to turn on power to the unit,
power indicator LED illuminates. Press once more to
turn power off to unit, power indicator LED turns off.
10. Trigger switch lockout - Locks trigger switch in the off
position until you have a proper grip with your right hand
around the handle.
11. Trigger switch - Activated by the operator's finger for
turning the motor on.
12. Power head – Houses Motor and Battery.
13. Shoulder harness - An adjustable strap to suspend
unit.
