GRASS TRIMMER
OPERATOR'S MANUAL
19

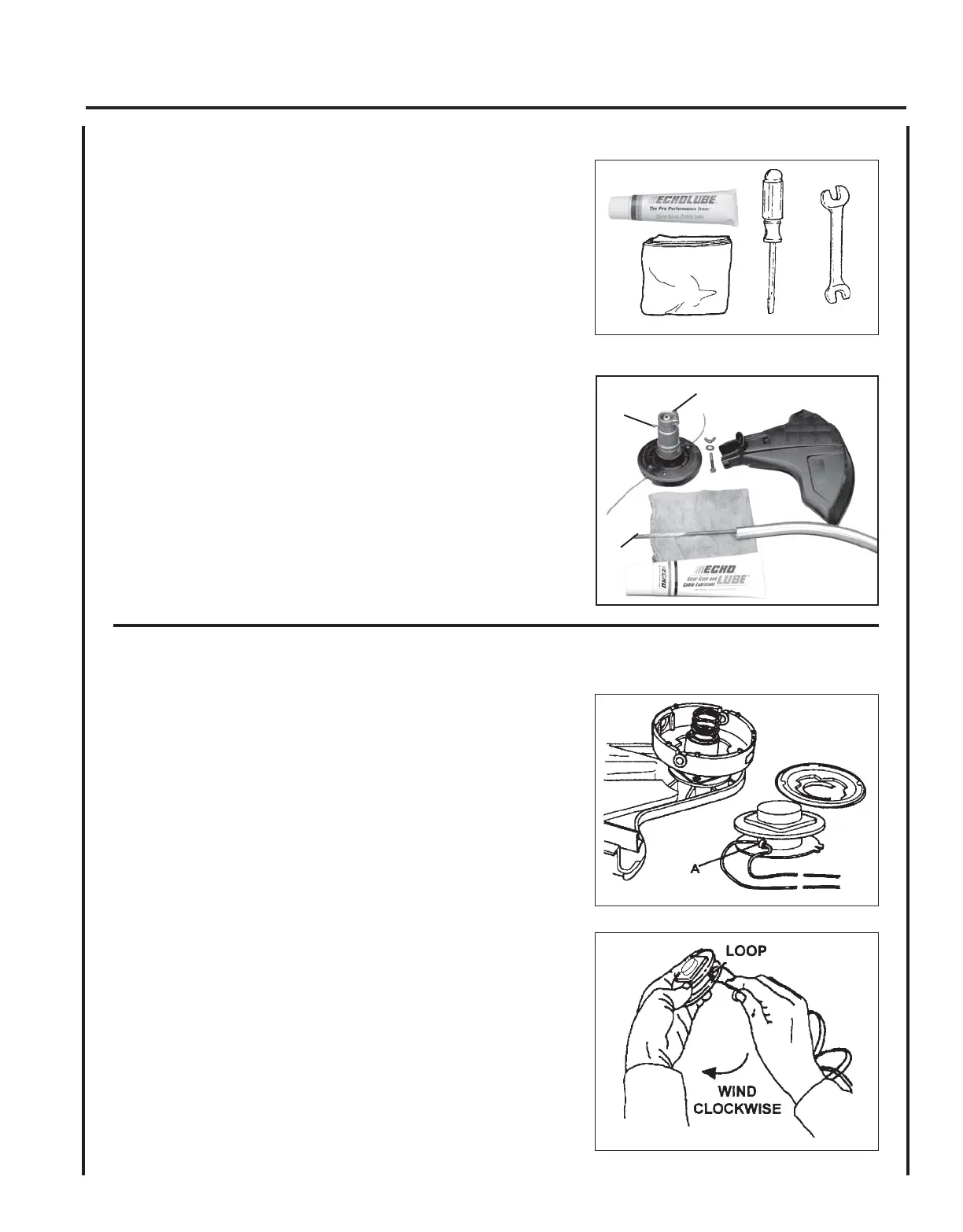

LUBRICATION
Level 1.
Tools Required: 8mm Open end wrench, screwdriver, clean rag.
Parts Required: ECHO
®
LUBE
TM
8 oz. (P/N 91014) or Lithium Base
Grease.
1. Remove plastic shield.
2. Loosen bearing housing locating screw (A), at the top of the
housing, loosen mounting screw (B) and remove gear case from
drive housing.
3. Pull the flexible drive shaft (C) from the drive housing, wipe clean
and recoat with a thin coating [1/2 oz. (15 ml)] of grease.
4. Slide the flexible drive shaft back in the drive housing being careful
not to get dirt on the flexible drive shaft.
5. Install the bearing housing and shield.
A
B
C
NYLON LINE REPLACEMENT
Level 1.
Tools Required: Head locking tool - 1/8" dia. Rod (if head is to be
removed)
Parts Required: ECHO 0.080 (2mm) Nylon Trimmer Line 4.6m (15 feet)
1. Shut engine off. Lay unit on the ground with head assembly up.
2. Hold head firmly, push in housing tab and turn cover counter
clockwise to remove cover and spool.
3. Cut .080" line to 4.6 m (15 feet) length. Thread line through hole (A)
in spool spindle until one end is 4" longer than the other end.
4. Hold spool with words "WIND LINE" and tap knob towards you.
Place index finger between the two lines and wind line clockwise
tightly and evenly.
To Next Page
