GRASS TRIMMER
OPERATOR'S MANUAL
9

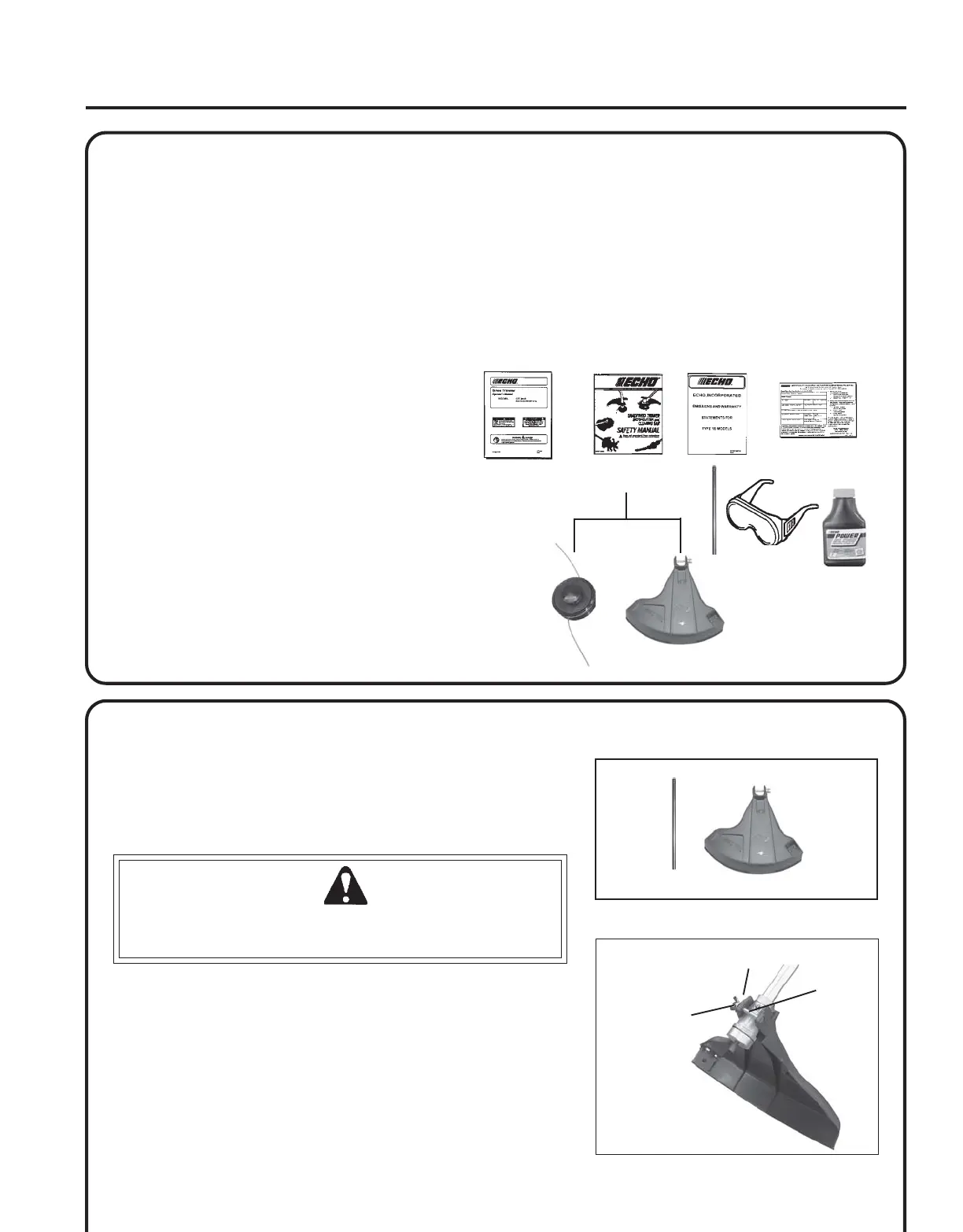

____ - Trimmer Assembly:
____ - Power Head
____ - Drive Shaft Assembly
____ - Plastic Bag (Co-Pack)
____ - Operator's Manual
____ - Safety Manual
____ - Warranty Card & Limited Warranty
____ - Locking Tool, P/N 89751801131 (head locking tool)
____ - Safety Glasses
____ - Echo Power Blend
TM
2-stroke oil sample
* ___ - Nylon Trimmer Head
* ___ - Plastic debris shield
CONTENTS
The ECHO product you purchased has been partially assembled for your convenience. Due to packaging restrictions,
installation of the plastic debris shield, nylon line head, and positioning of the front handle are necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
* Some units may be factory pre-assembled. No assembly tools are needed and the nylon line head and plastic debris
shield shown in the contents list, are pre-assembled to the unit. Only the front handle may need to be re-positioned for
comfortable operation.
ASSEMBLY
Tools Required: Locking Tool
Parts Required: Nylon Trimmer Head, Plastic Shield Assembly
WARNING DANGER
Cut-off knife on debris shield has sharp edges. Avoid contact
when installing or removing line head.
PLASTIC SHIELD INSTALLATION
1. Remove wing nut (A), washer (B), and bolt (C).
2. Snap the shield over the bearing housing.
3. Install bolt (C), washer (B), and wing nut (A).
C
A
B
*
To Next Page
