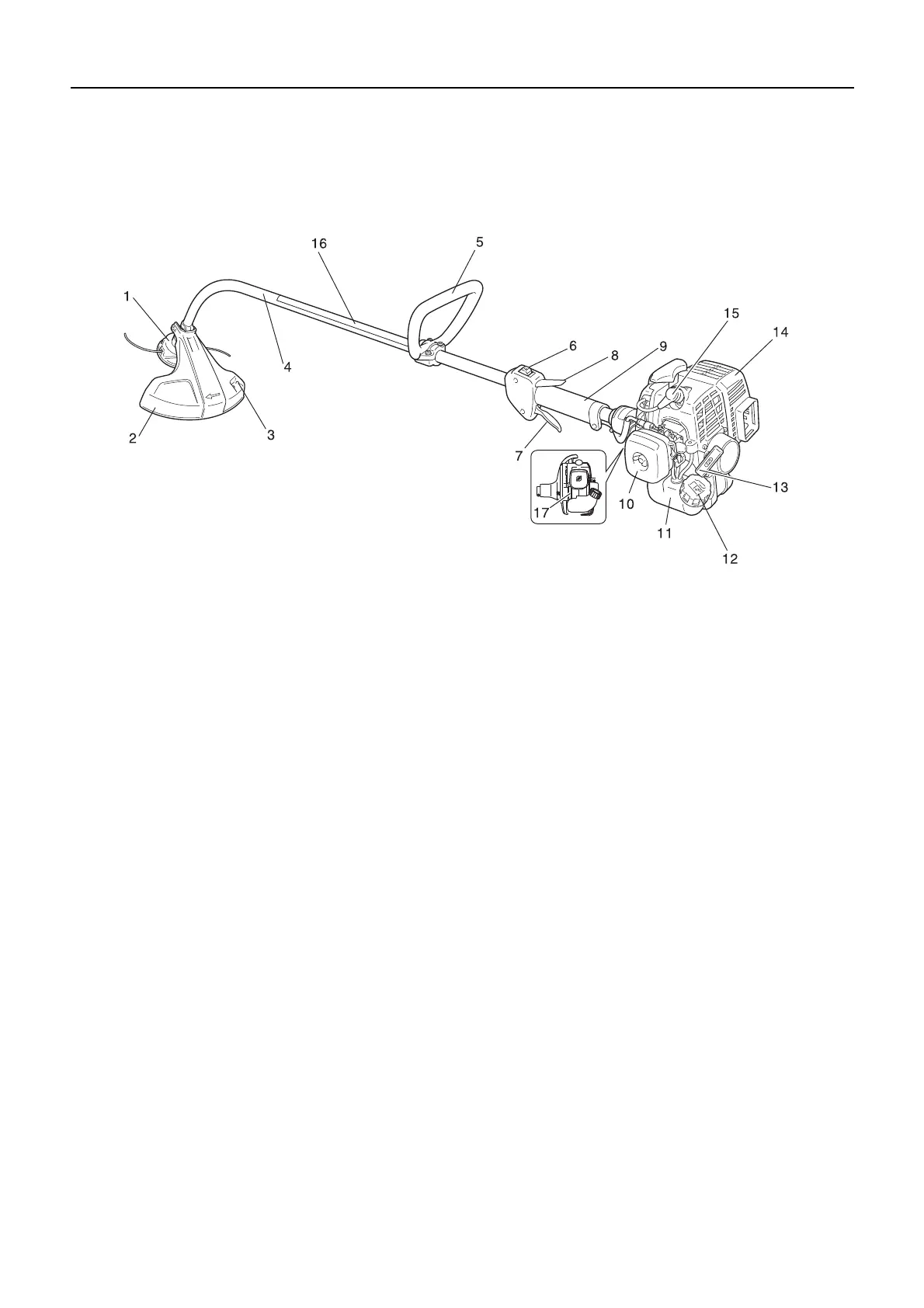

Description
Description
1. Cutting attachment Nylon line cutting head for cutting
grass and weed.
2. Shield Device to protect the operator from accidental
contact with the cutting head and thrown objects.
3. Cut off knife Cut nylon line to adjust line length to prop-
er swath.
4. Shaft tube Part of the unit that provides a casing for
power transmission shaft.
5. Loop-handle Light weight, suitable for nylon line trim-
mer.
6. Ignition switch "Slide switch" mounted on top of the
throttle trigger housing, move switch forward to RUN,
backward to STOP position.
7. Throttle trigger Activated by the operator's finger for
controlling the engine speed.
8. Throttle trigger lockout Locks throttle trigger in the
idling position until you have a proper grip with your right
hand around the handle.
9. Grip Rear (right hand) handle.
10. Air cleaner cover Covers air filter.
11. Fuel tank Contains fuel and fuel filter.
12. Fuel tank cap For closing the fuel tank.
13. Starter handle Pull handle to start the engine.
14. Silencer cover Cover the silencer not to make operator
touch to hot surface of silencer.
15. Spark plug
16. Safety decal
17. Type and serial number
