CONTENTS

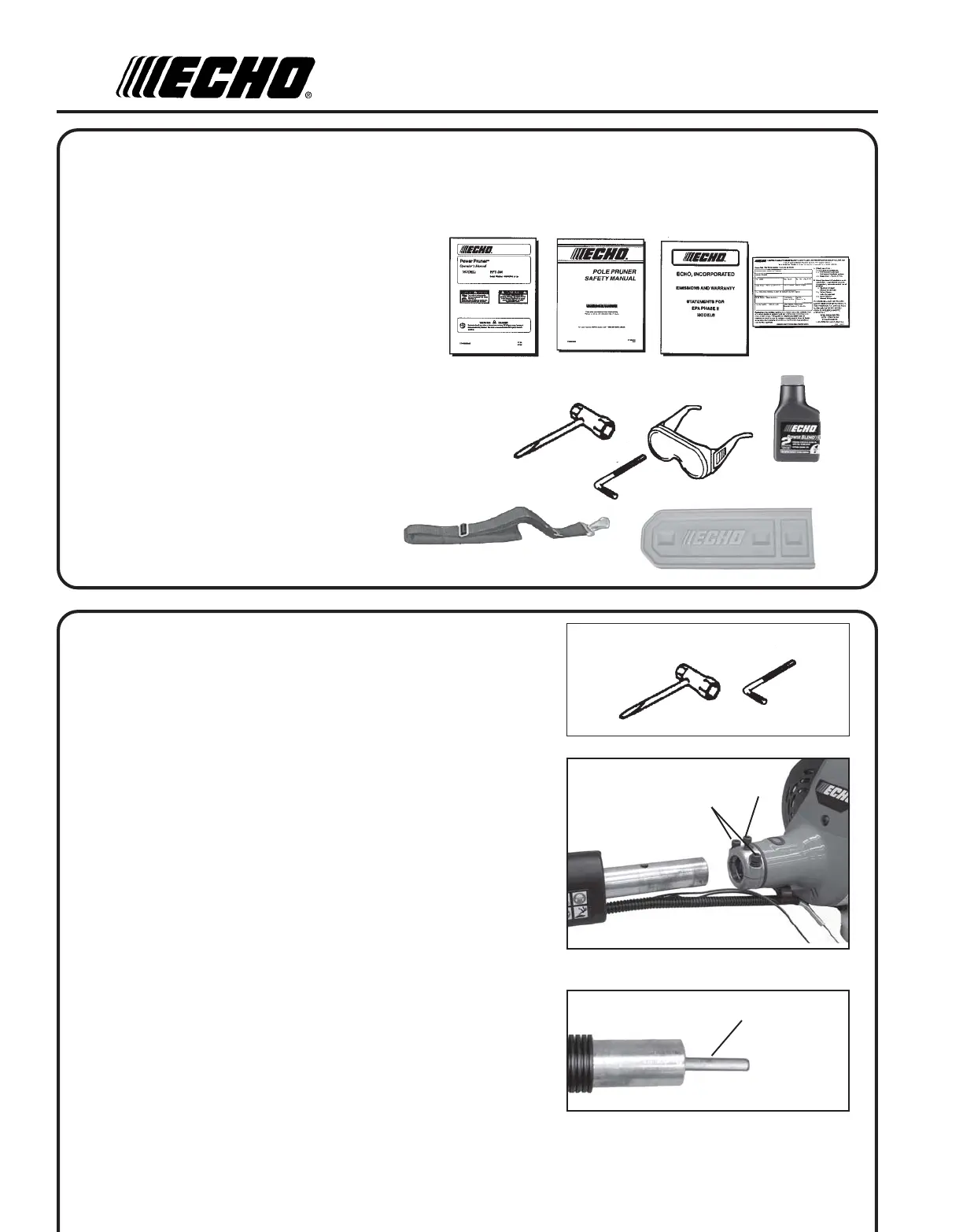

Due to packaging restriction the ECHO product you have purchased requires some assembly.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
__ Power Head
__ Drive Shaft Assembly
__ Cutting Attachment W/ Guide Bar and Saw Chain
__ Operator's Manual
__ Safety Manual
__ Warranty Registration Card
__ Warranty Statement
__ T-Wrench (combination screwdriver/spark plug socket)
__ 4 mm hex wrench
__ Safety Glasses
__ Echo Power Blend X
TM
2-stroke oil sample
__ Shoulder Harness
__ Guide Bar Cover
ASSEMBLY
Tools Required: 10x19mm (13/32x3/4in) T-wrench, 4 mm Hex
Wrench
Parts Required: Power Head, Drive Shaft Assembly,
Cutting Attachment
DRIVE SHAFT / POWER HEAD
1. Remove protective cap from drive shaft end.
2. Loosen two (2) clamping screws (A) and remove locating screw (B).
3. Pull flexible drive shaft coupler (C) 2-3 in. out of drive shaft
assembly.
A
B
C
To Next Page
