POWER PRUNER
TM
OPERATOR'S MANUAL
11
WARNING
Saw Chain is sharp! Always wear gloves when handling assembly,
otherwise serious personal injury may result.

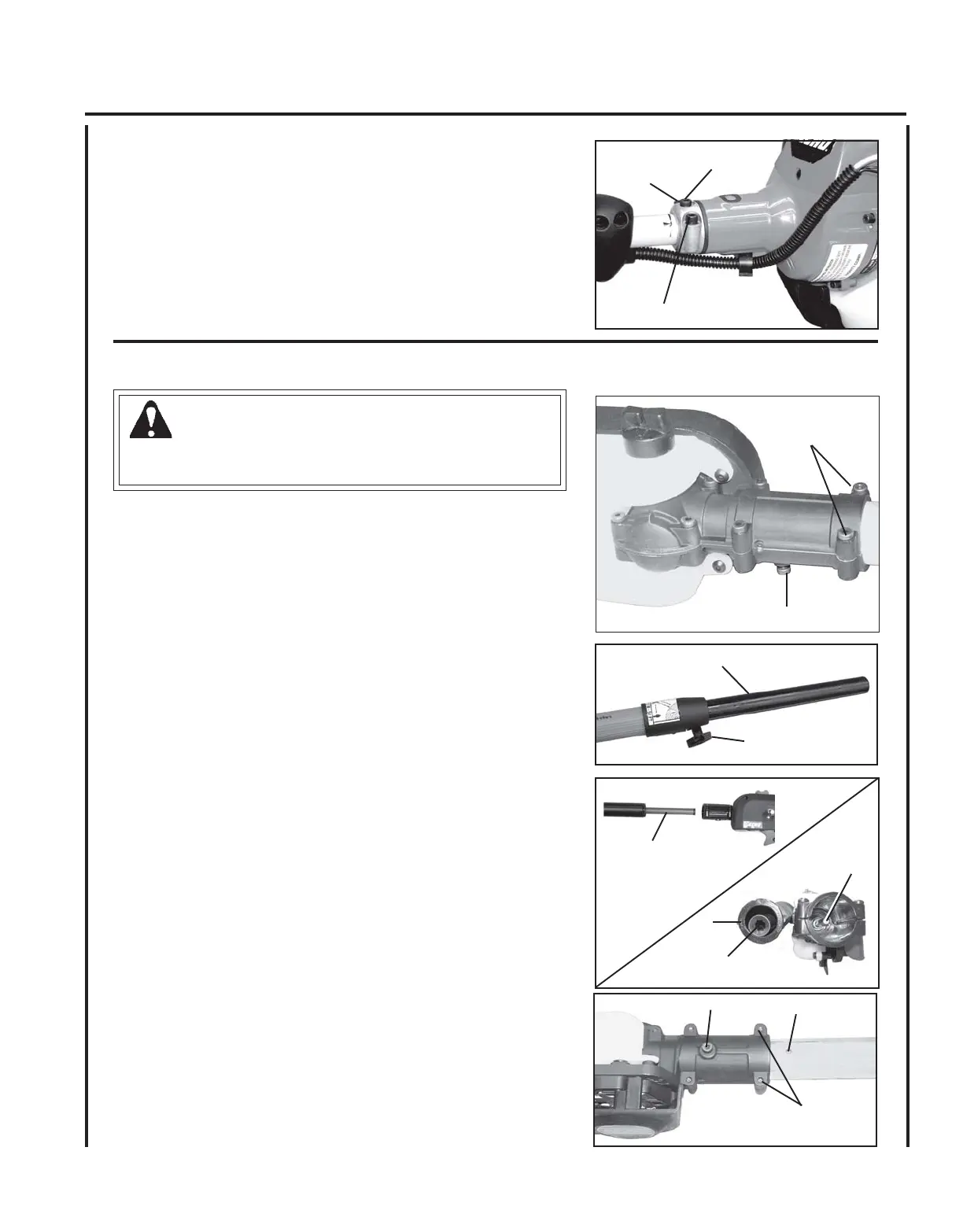

1. Loosen the two (2) screws (C) and locator screw (D) on cutting
attachment.
2. Loosen clamp knob (E) turning counter clockwise.
3. Pull upper tube (F) out of fiberglass lower tube 127-152 mm (5-6 in.),
then slide (F) back into fiberglass lower tube exposing inner drive
shaft (G). Align and join star shaped drive end of inner drive shaft
(G) with cutting attachment shaft (H).
4. Align ridges (J) on upper tube with seams in cutting attachment.
5. Slide together aligning locator screw (D) in cutting attachment with
locating hole (I) in upper tube.
6. Tighten locator screw (D). Tighten two (2) cutting attachment
screws (C).
7. Extend upper tube to desired length. Tighten clamp knob (E)
turning clockwise.
D
C
CUTTING ATTACHMENT TO DRIVE SHAFT INSTALLATION
C
I
G
H
G
E
F
4. Align flexible drive shaft coupler with engine socket and slide
together until locating hole in shaft is visible through locating hole
in engine housing.
5. Install locating screw (B) and tighten clamping bolts (A).
J
D
6. Route throttle linkage and ignition lead assembly along shaft and
clip as shown.
B
A
A
