Power Pruner
TM
oPeraTor's Manual
25

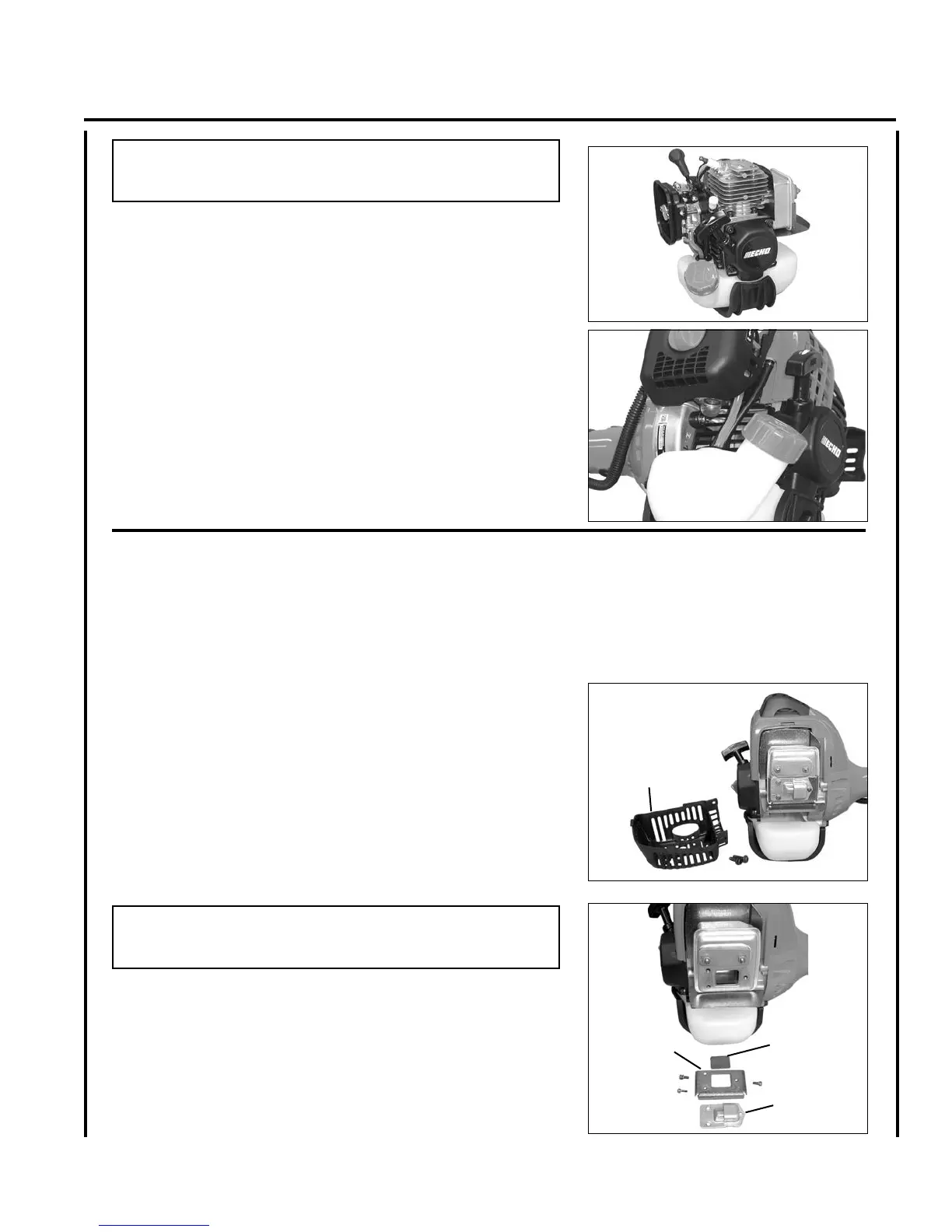

eXhausT sysTem
Spark Arrestor Screen
Level 2.
Parts Required: Spark Arrestor Screen, Gasket
1. Remove mufer cover (A).
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
3. Remove spark arrestor screen (B), gasket (C), and exhaust guide
(D) from mufer body.
4. Clean carbon deposits from mufer components.
NOTE
When cleaning carbon deposit, be careful not to damage the cata-
lytic element inside mufer.
5. Replace screen if it is cracked, plugged or has holes burned
through.
6. Assemble components in reverse order.
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder ns.
5. Use brush to remove dirt from the cylinder ns.
6. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
7. Assemble components in reverse order.
A
B
C
D
