Before you start
Assembly

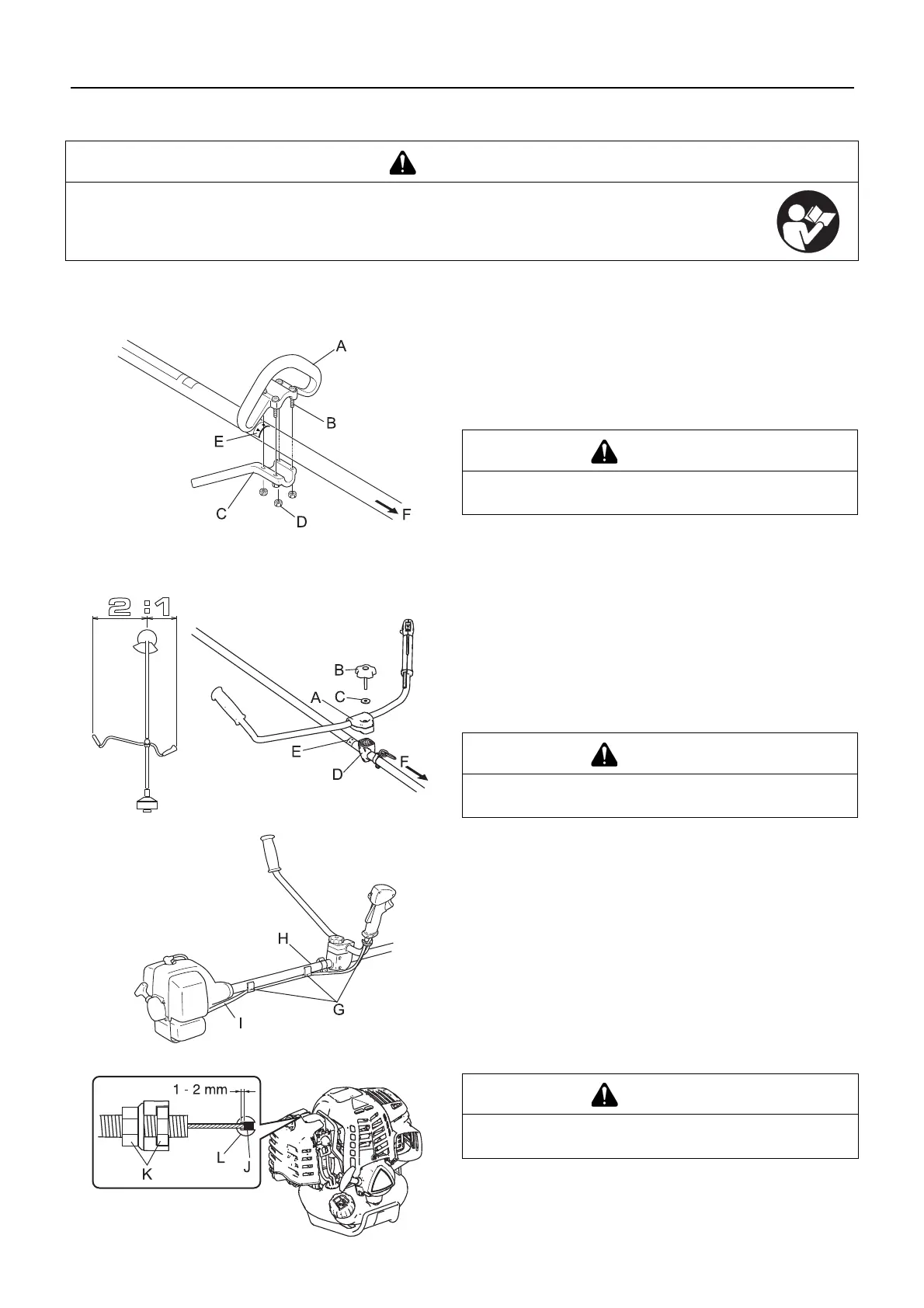

Loop handle version
Loop handle assembly
Assemble loop handle (A) and bracket (C) to drive shaft assem-
bly.
Position handle in comfortable operating position and tighten
Bolts (B).
U-handle version
U-handle assembly
1. Install handle assembling bracket (upper) (A) in handle as-
sembling bracket (lower) (D) and fix handle by tightening
handle assembling bolt (8 mm) (B) lightly.
2. Adjust inclination of handle to adequate position (easy to op-
erate) and tighten firmly handle assembling bolt.
C: Washer
E: Arrow
F: To engine
3. To eliminate loosening of throttle wire (I), fix it to shaft tube
(H) (2 places) and to right hand U-handle (1 place) with wire
fixing clips (G).
K: Nuts
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
E: Arrow F: To engine
CAUTION
Install the handle to the engine side from the arrow
mark.
CAUTION
Install the handle so that it does not hide any of the
safety decals.
CAUTION
After assembly, adjust the play of wire end (J) on carbu-
rettor (L) side to 1 mm - 2 mm.
