Maintenance

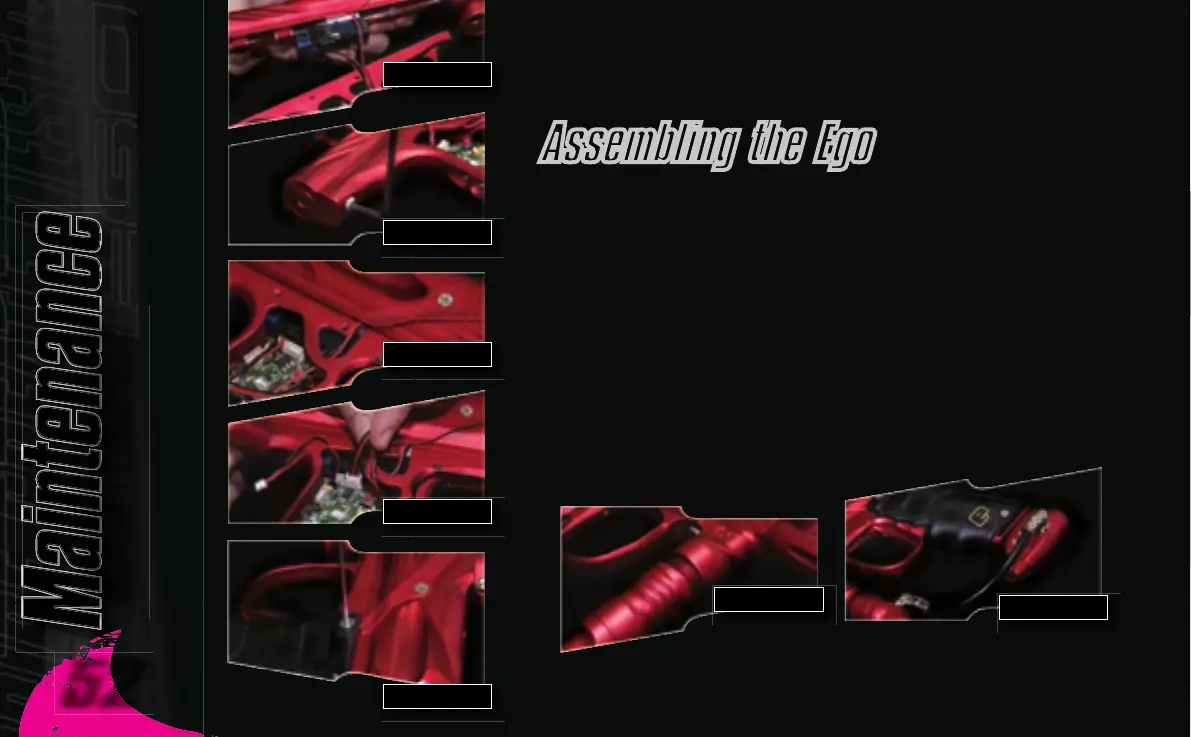

Assembling the Ego
Carefully thread the solenoid and Break Beam Sensor leads through the
access hole in the top of the grip frame
(See Figure 6.63)
, and reattach the
grip frame to the marker, tightening the grip frame screws using a 1/8th" hex
key
(See Figure 6.64)
.
Ensure that the Break Beam Sensor cables lie neatly in the slots provided
for them in the Eclipse Ego grip frame
(See Figure 6.65)
. Connect the
solenoid and the Break Beam Sensors into their relevant places on the
Eclipse Ego PCB
(See Figure 6.66)
and re-attach the Eclipse Ego grips by
securing the six grip screws using a 5/64th" hex key
(See Figure 6.67)
.
Screw the inline regulator back into the FRM
(See Figure 6.68)
and connect
any hosing that was disconnected
(See Figure 6.69)
. Replace bolt and locate
bolt pin in the designated groove in the rammer.
You have now assembled your Eclipse Ego.
FIGURE 6.63
FIGURE 6.64
FIGURE 6.65
FIGURE 6.66
FIGURE 6.67
FIGURE 6.68
FIGURE 6.69
