37 Accelerating the path to discovery
®
Technical Data
Nominal Hose
Size (in.)
I.D.
(in.)
O.D.
(in.)
Minimum Inside
Bend Radius (in.)
Temperature
Range °F (°C)
Vacuum (28.5
in. Hg [96.5 kPa])
Rated to °F (°C)
Working Pressure at
70°F (20°C) PSIG (bar)
Minimum Burst
Pressure at 70° F
(20° C) PSIG (bar)
Static Dynamic
1 1.00 1.32 5.50 7.15
-65 to 450
(-53 to 230)
150 (65) 1000 (68.9) 4000 (275)
B. FEP Tubing
FEP Tubing (Fluorinated Ethylene Propylene) has chemical and dielectric properties similar
to those of PTFE. FEP tubing is a clear tubing that is an economical choice for applications
requiring chemical resistance and a broad temperature exposure.
FEP Tubing Features
• Chemically inert to most industrial chemicals and solvents
• Non-ammable
• High thermal stability
FEP Metric Size
O.D.
(in.)
I.D.
(in.)
Wall
(in.)
Nominal O.D.
(in.)
O.D. Tolerance
(in.)
Wall Tolerance
(in.)
Working
Pressure
PSIG (bar)
Burst
Pressure+
PSIG (bar)
Minimum Bend
Radius (in.)
1 0.875 0.062 1.000 +/- 0.010 +/- 0.003 80 (5.5) 398 (27.4) 16
C. Compression Fittings, PTFE
• Fittings are made entirely of chemically inert corrosion resistant PTFE.
• Ferrules: Ferrules are machined from virgin Polytetrauoroethylene (PTFE)
• Grippers: The Gripper in the two-piece Ferrule-Gripper assemblies are
manufactured from PVDF
• Nuts: Nut are molded PVDF

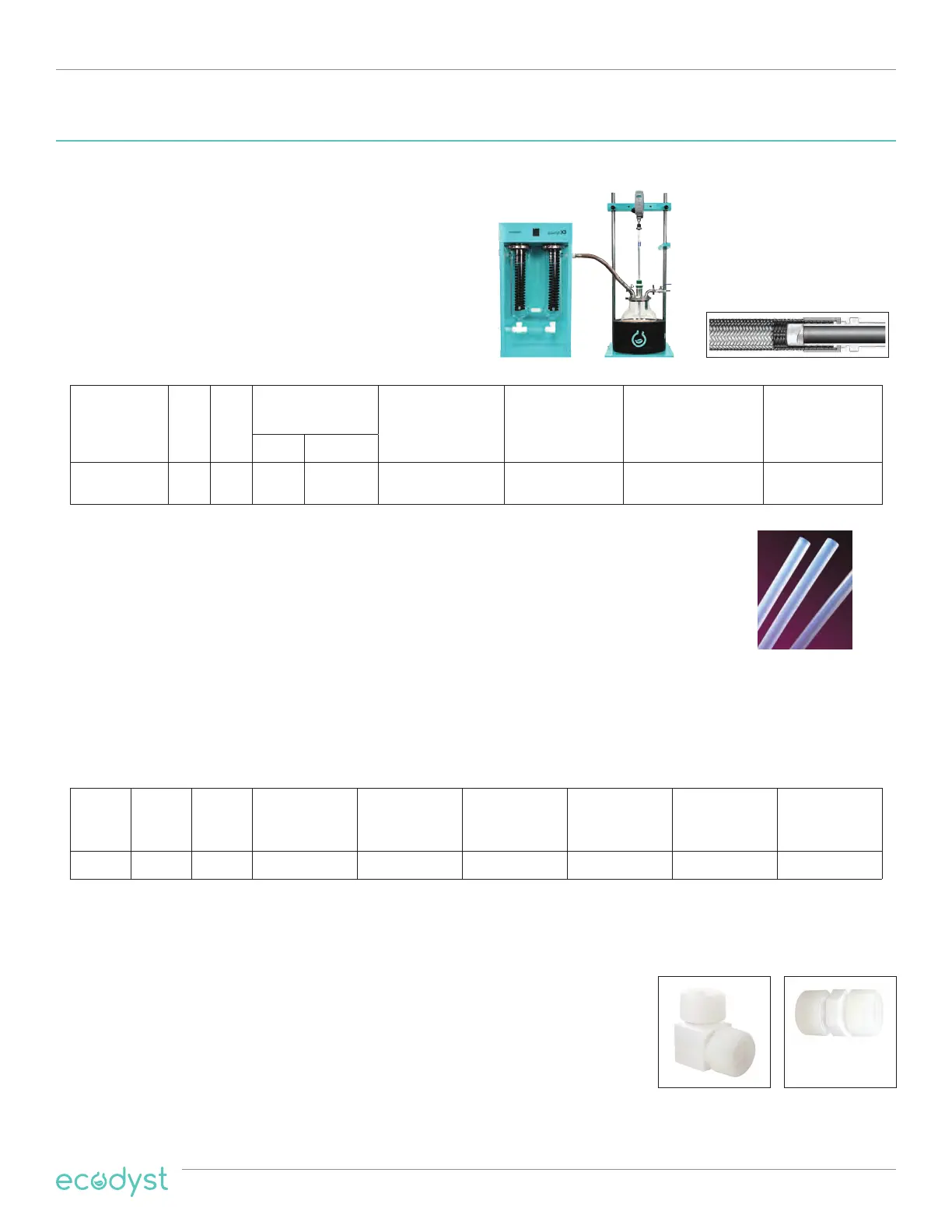

A. High temperature vapor hose
Features
• Highly exible PTFE hose
• Smooth-bore PTFE core
• Fiber braid bonded to the core with a patent-
pending process supports core to resist kinking
• 304 stainless steel braid protects the core from
abrasion and enhances hose pressure rating
Other Parts
