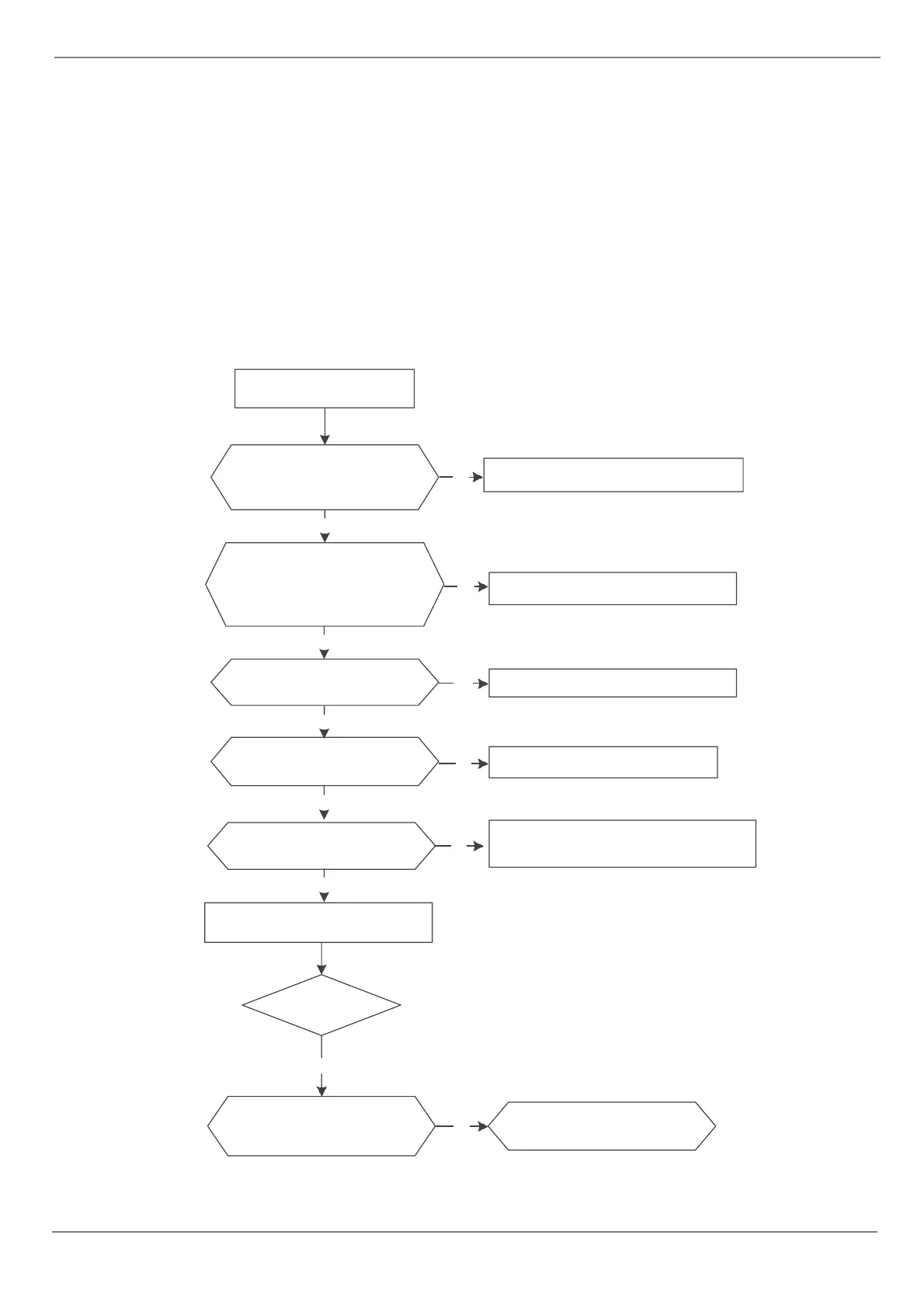

8.7.10 PC 03/PC 31(Low Pressure Protection Diagnosis and Solution)
Description: If the sampling voltage is not 5V, the LED displays a failure code.
Recommended parts to prepare:
• Connection wires
• Low pressure protector
• Indoor fan assembly
• Outdoor PCB
Troubleshooting and repair:
Note: For certain models, outdoor PCB could not be removed separately. In this case, the outdoor
electric control box should be replaced as a whole.
Are the low pressure protector
and main control board wired
properly?
Yes
Reconnect the low pressure protector and
main control board
Replace outdoor main board
No
Replace low pressure protector
Is the outdoor ambient
temperature too low?
Stop the unitYes
Open the valve core of the high
pressure valve
No
Is the valve core of the high
pressure valve fully opened?
Is the indoor fan running
properly in cooling mode?
Refer to the solution to the malfunction of
fan speed being out of control.
.
Find the
cause and resolve the problem.
.
Check whether the refrigerant
system is functioning properly.
.
No
Is it in working order?
No
When the l
l
evel of refrigerant is
not sufficient,
,
doe the system
function properly after more
refrigerant is added?
Is the low pressure protector
broken?Method: Disconnect the plug.
.
Measure the resistance of the low
pressure protector. If the protector is
normal the value is o.
.
Yes
Low pressure protection
No
No
No
Yes
Yes
