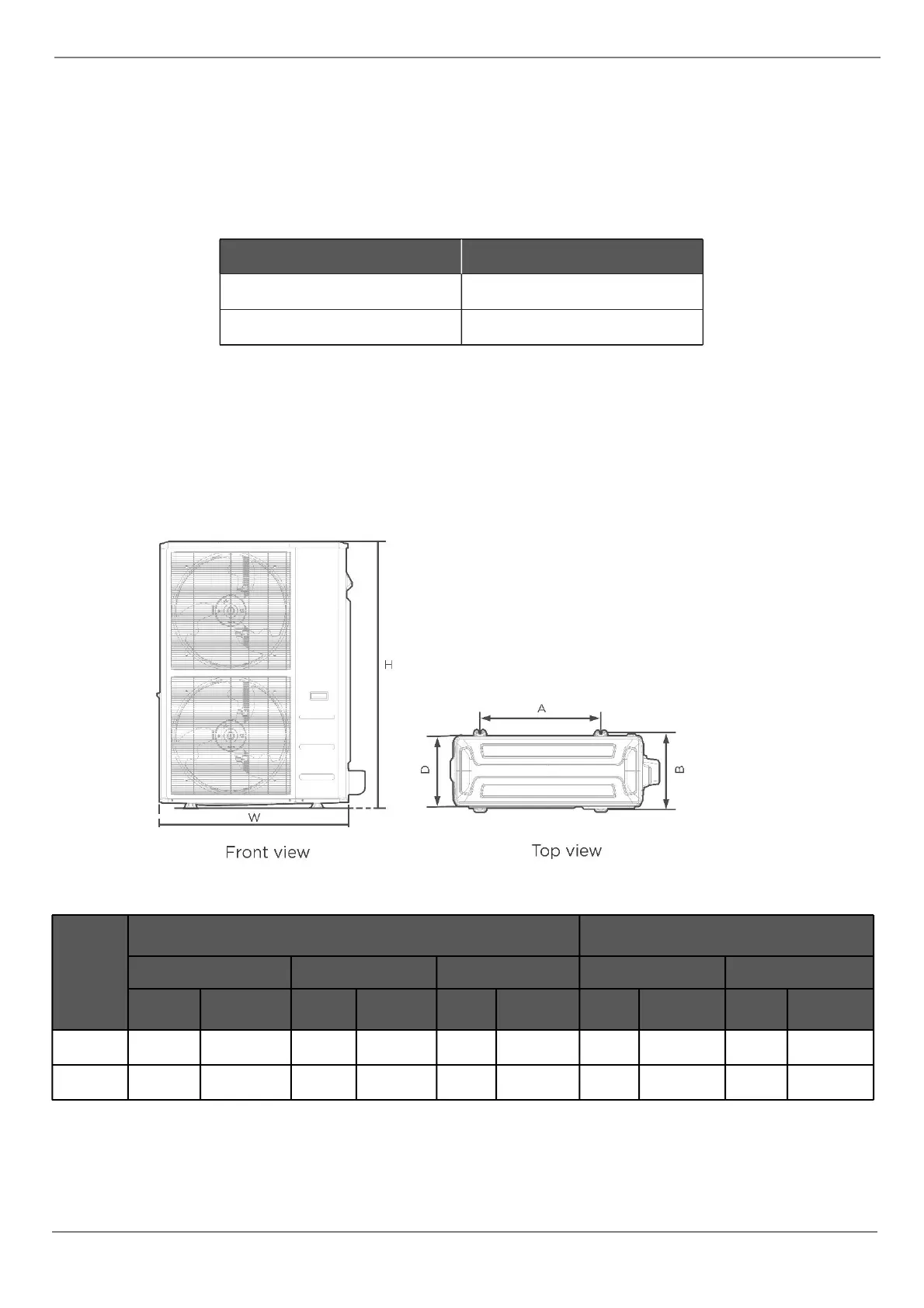

Ecoer EAHAEC-36 - Outdoor Unit; 4.1 Dimensional Drawings

24/157
SDi Decades Extreme Service Manual www.ecoer.com
May. 2023Manufacturer reserves the right to change specifications or designs without notice.
Please check the corresponding dimensional drawing according to the panel plate.
ODU Model
Panel Plate
36K
E30
60K
E30
Panel Plate E30
Model
Outdoor Unit Dimension
Mounting Dimension
W
H
D
A
B
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
36K
952
37-1/2
1333
52-1/2
415
16-11/32
634
24-35/36
404
15-29/32
60K
952
37-1/2
1333
52-1/2
415
16-11/32
634
24-35/36
404
15-29/32
4. Outdoor Unit
4.1 Dimensional Drawings
