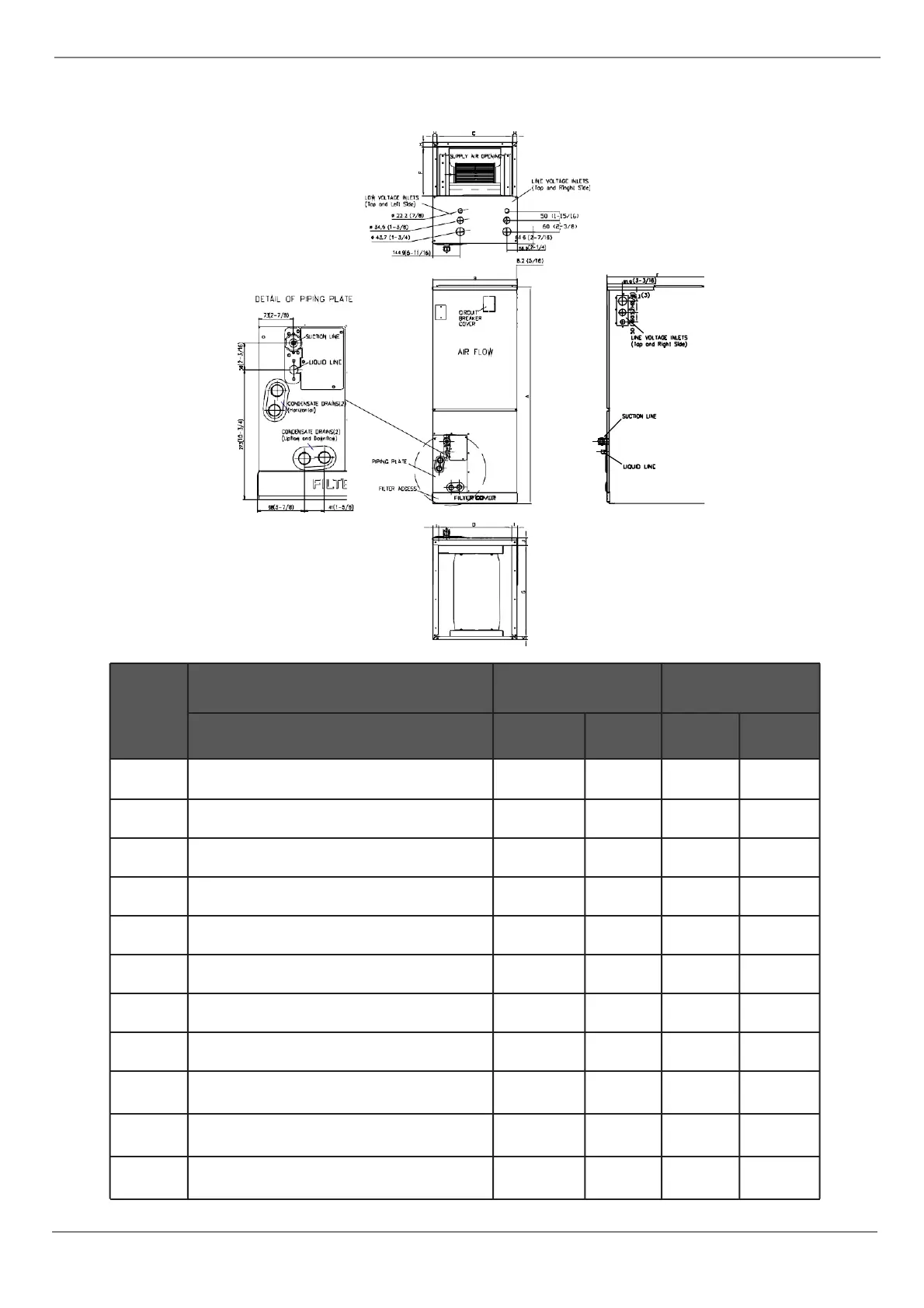

3.2 Dimensional Drawings
NO.
Model
36k
60k
Dimensions
inch
mm
inch
mm
A
Model Height
49
1245
53
1346
B
Model Width
21
534
24-1/2
622
C
Supply Air Opening Width
19-1/8
486
22-5/8
575
D
Return Air Opening Width
18-5/8
473
22-1/8
562
E
Model Depth
21
534
21
534
F
Supply Air Opening Depth
10-1/4
260
10-1/4
260
G
Return Air Opening Depth
18-3/4
476
18-3/4
476
H
Supply Air Opening Clearance
15/16
24
15/16
24
I
Return Air Opening Side Clearance
1-1/4
32
1-1/8
28
J
Return Air Opening Front Clearance
1-5/8
41
1-5/8
41
K
Return Air Opening Back Clearance
5/8
16
3/4
19
