Procedure
Illustration

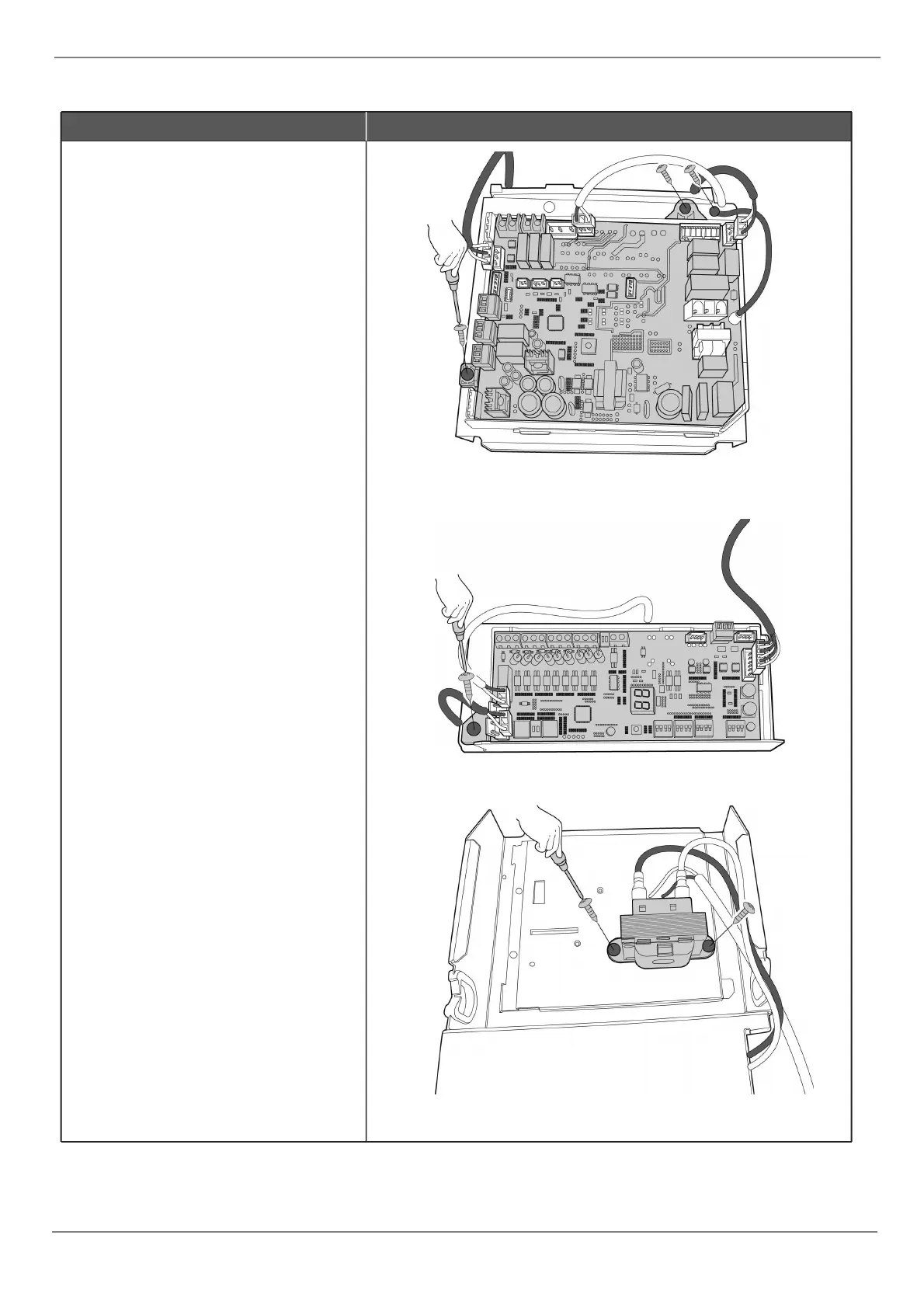

4) Release 2 fixing screws and 1earthing
screw.(see AHU_3)
5) Unplug the plugs and then remove the
main control board subassembly. (see
AHU_3)
6) Release 1 fixing screw of the data
transfer module control board to remove
it. (see AHU_4)
7) Release 2 screws and then remove
the transformer. (see AHU_5)
AHU_3
AHU_4
AHU_4
Note: This section is for reference only. Actual unit appearance may vary.
