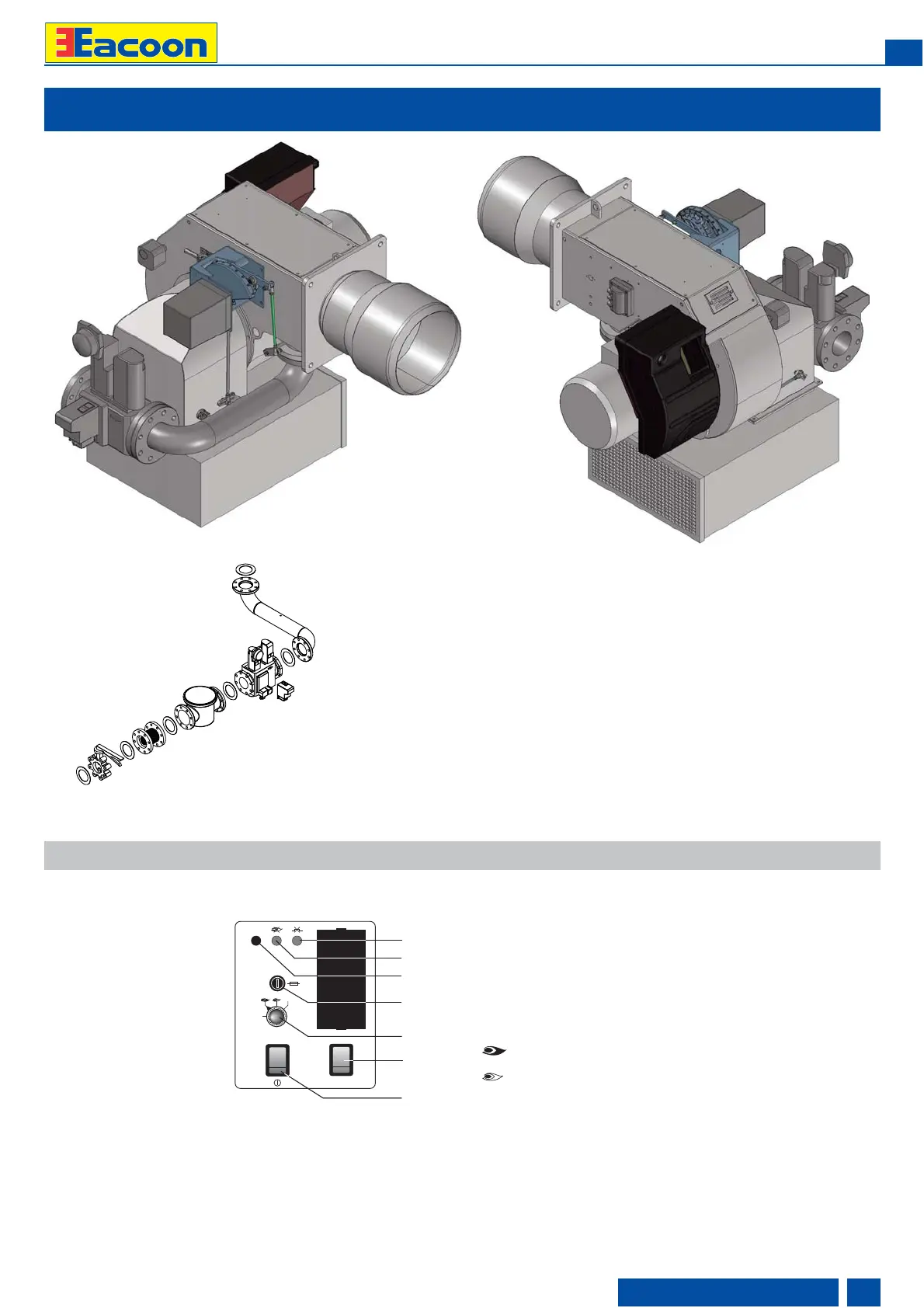

BURNER DESCRIPTION
GTCP
LEGENDA
1. Housing
2. Electrical control panel
3. Blower motor
5. Hinge flange
6. Blast tube
7. Burner head
8. Burner fixing flange
9. Air flap regulation
11. Silencer
12. Lifting eyebolts
13. Mechanical cam gas
15. Servomotor for gas and air
16. Gas train
19. Gas filter
20. Ball valve
23. Antivibration coupling
24. Tightness control
GTCP. Gas train connection pipe
Control panel
20
23
24
19
16
15
13
1
7
6
8
12
1
9
11
3
2
1 - Fuse
2 - Termal lock-out lamp
3 - Working lamp
4 - Selector
:
0 Loking of devoices for operating at intermediate outputs
Operation at max. output
Operation at min. output
AUTO Automatic operation
5 - Main switch I / O
6 - Lockout disable push button
7 - Lock-out lamp
PGM EXIT
5
0
I
GAS
RESET
0
AUTO
6
4
1
7
3
2
