Ecoflam BLU 8000.1 PR - Overall Dimensions; Burner-Boiler Mounting Flange

9
www.eacoon.com
EN
420010511800
E
D - D1
F
G
C
B
A
H1
M16
550
M
L
I
N
O
600
540

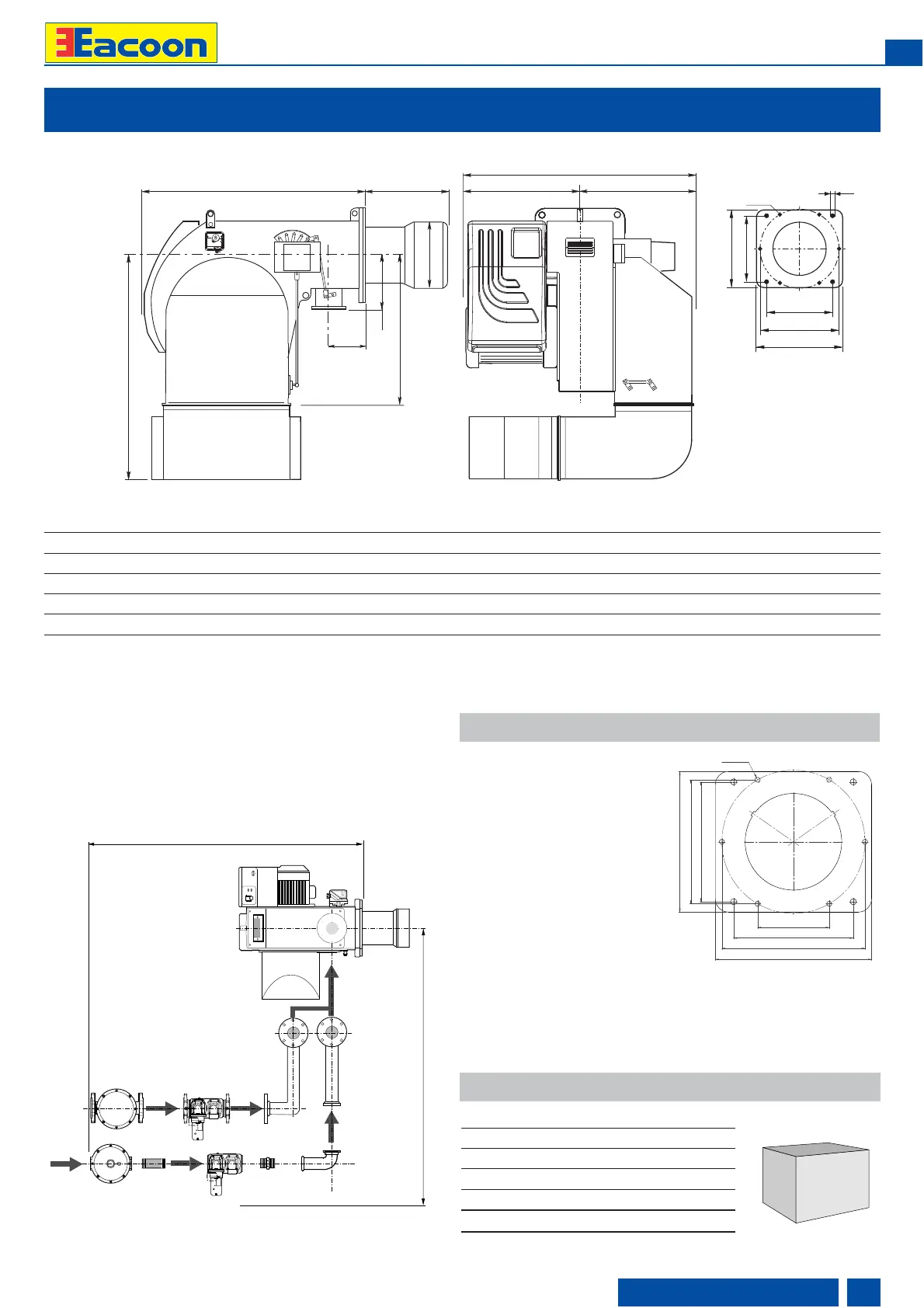

OVERALL DIMENSIONS
HOW TO INSTALL THE GAS TRAIN
INTO THE BURNER AND CALCULATE
THE OVERALL DIMENSIONS:
refer to the dimension page and the gas train
manual for all detailed information
Fixing hole dimensions
are “I” and “L” as per
dimension table.
Boiler hole shall be done
according to the blast
tube dimension “F” plus
15-25 mm in order to be
able to extract it during
maintenance.
Burner-boiler mounting flange
Packaging (only burner)
WARNING: Please follow the suggested dimension for the hole on
the boiler flange in order to fit the burner. Make sure that between
the boiler and the blast tube proper insulation is fitted.
X Y Z kg
BLU 7000.1 1750 2380 1460
BLU 8000.1 1750 2380 1460
BLU 10000.1 1750 2380 1460
BLU 12000.1 1750 2380 1460
Dimensions (mm)
D = Short head
D1= Long head
X
Y
Z
A B C D D1 E F G H1 I L M N O
BLU 7000.1
1210 585 625 470 - 1212 420 775 1270 460 460 M20 195 232
BLU 8000.1
1280 655 625 470 - 1212 420 775 1270 460 460 M20 195 232
BLU 10000.1
1310 685 625 470 - 1212 420 775 1270 460 460 M20 195 232
BLU 12000.1
1420 795 625 470 - 1212 450 775 1270 460 460 M20 195 232
460 540
460
600
550
476
275
N° 6 M16
