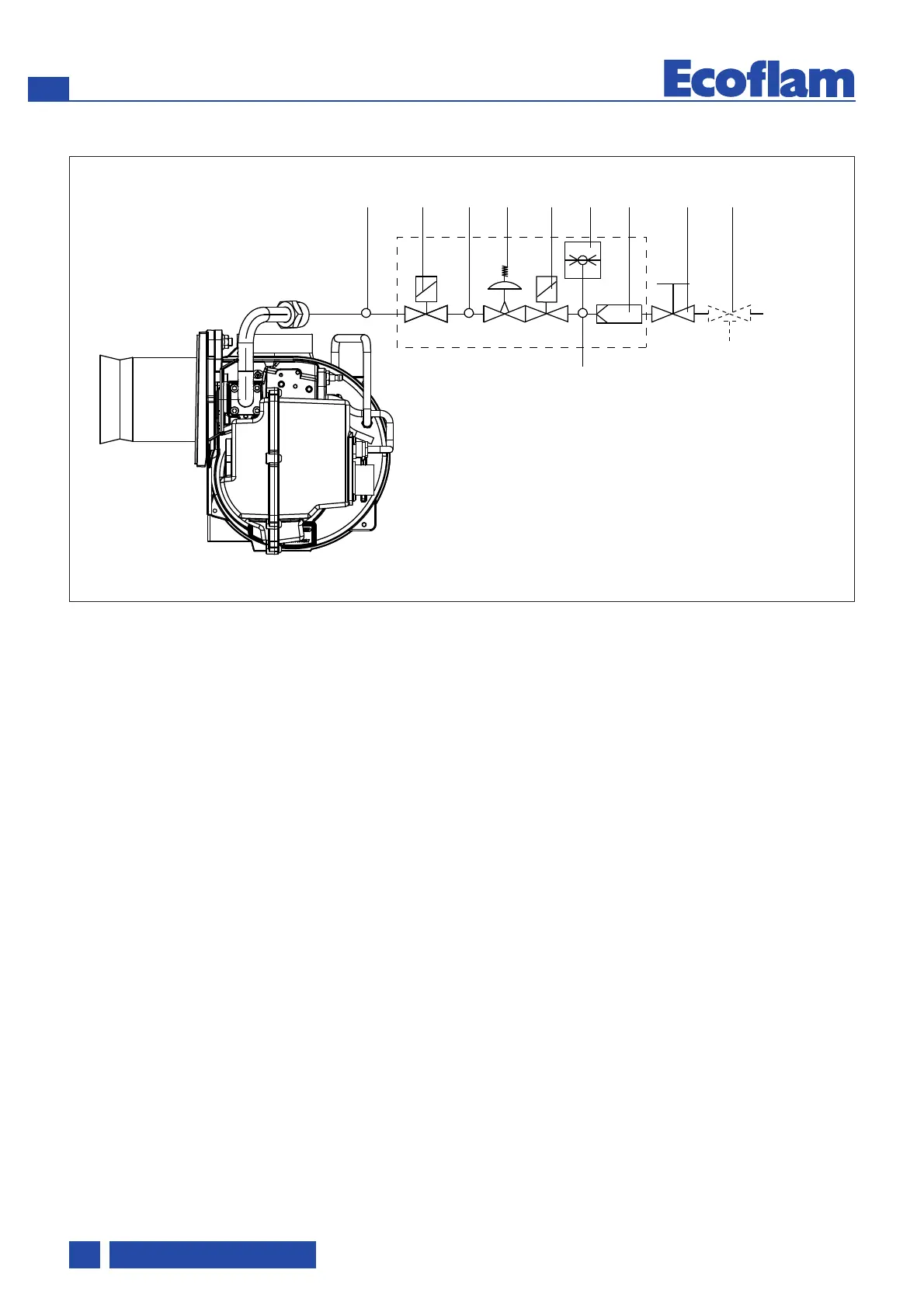

Function - General safety functions
1108106
119.1
Y12104 F4119.1119 pBr Y13
F4 Minimum gas pressure switch
Y13 Main solenoid valve
Y12 Safety solenoid valve
1 Thermally-triggered safety shut-off valve (installation by installer)
104 Gas pressure regulator
106 Filter
108 Gas ball valve (installation by installer)
119pBr Measuring point for gas outlet pressure
119.1 Measuring point for gas pressure in valve space
